1/10 Wendigo 4X4 Brushless Rock Racer, RTR

Item No. RER12890
Brand Logo
4.4 out of 5 Customer Rating

1/10 Wendigo 4X4 Brushless Rock Racer, RTR

Item No. RER12890
$399.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Get ready for high-speed intense action on grueling off-road terrain with the exciting new Redcat Wendigo 1/10 electric Rock Racer! Designed to look and handle like a full-scale rock racer, the Wendigo utilizes solid axles both front and rear, a steel frame chassis and oversized suspension components. Simply put, this is purpose built true-to-scale rig!
Key Features
  • Hobbywing Brushless System
  • Coreless Digital Servo
  • Chassis and Design
  • Licensed Wheels and Tires
  • Aluminum Shocks
icon-box
In The Box
  • (1) 1/10 Wendigo Brushless Rock Racer RTR
  • (1) 2.4GHz Radio System
  • (1) 1/10 Wendigo Brushless Rock Racer RTR Instruction Manual
icon-how-to
Needed to Complete
  • (4) AA Batteries for Transmitter
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
1/10 Wendigo 4X4 Brushless Rock Racer, RTR

Introduction

Rock racing is similar to rock crawling, but with a wider range of obstacles and the drivers compete for the fastest time. Because rock racing demands so much from a vehicle, these trucks must be both capable and durable. Rock racers are faster than typical rock crawlers, which is why the Wendigo is fitted with a Hobbywing 60A brushless ESC and A 3300KV 540 size brushless motor. The Wendigo is capable of running 2S or 3S LIPO power.

Features

  • Full roll cage, True to scale Rock Racer chassis, Realistic cock pit, Solid front and rear axle, Threaded oil filled aluminum shocks and Ball bearings throughout.
  • Tunable suspension, Adjustable wheelbase, Tunable shocks and Selectable shock positions.
  • Rear sway bar, Super fast, Great handling, Realistic looking rock racer tires, Unique high performance chassis design.
  • 3300KV RC540 Brushless Motor, Waterproof 60A ESC (2s-3s LIPO ready), Waterproof high torque 25KG metal gear steering servo, 2.4GHz radio system.
  • Assembled and Ready to Run - Requires 6-cell NiMH battery or recommended 2S or 3S LIPO battery & Charger - Requires AA Batteries for Transmitter.

Overview

The Wendigo features a front mounted motor, centrally mounted divorced transfer case and strategically placed battery tray. This setup offers excellent weight distribution which causes the Wendigo to behave predictably when climbing over obstacles. Proper balance is also important when putting on your race hat. The Wendigo is able to blast around high speed tracks and obstacles with a finesse not commonly found in solid axle RTR vehicles.

The Wendigo features 1.5mm steel ladder-type frame rails which provide a sturdy backbone for this vehicle. The wheelbase is adjustable from 334.7mm to 358.7mm, with 346.7mm being the stock configuration. The Wendigo’s gear boxes feature Mod1 gears and ball bearings. The heavy duty telescoping driveshafts provide reliable power delivery to the front and rear trussed axle housings. These axle housings feature diamond shaped pumpkins and upper trusses for rigidity. A metal spool ensures equal power transfer to both the left and right heavy duty straight axles, while a one piece pinion gear provides additional strength to the drivetrain.

The Wendigo’s aluminum body oil filled shocks have a threaded collar for quick adjustments to the vehicle's ride height. Each shock tower offers nine upper shock mounting positions for further suspension tuning. Heavy duty 5mm steel suspension links are used in the Wendigo’s front and rear suspension. An adjustable rear sway bar helps to minimize torque twist and adds stability during high speed cornering.

A rock racer wouldn’t be complete without high quality off road tires and wheels. The Wendigo sits on licensed Interco Super Swamper 2.2” tires which are mounted to licensed Raceline Avenger wheels. The Super Swampers scooped tread lugs provide excellent forward grip on dirt, grass, pavement, rocks, mud and snow. The aggressive tread design and lug spacing release dirt and debris, keeping the tire clean for the next obstacle. Side lugs allow the Wendigo to achieve grip while squeezing between two large rocks, through washouts and other canyon-like obstacles.

High performance tires deserve a high performance wheel. The Raceline Avenger wheels are precision made with the right amount of offset and superior durability.

Many scale details and accessories come standard with the Redcat Wendigo to ensure users get the very best visual experience from their vehicle. This Rock Racer features a realistic racing body with narrowed rear quarters and a full roll cage. Additional scale details include a driver and co-pilot with adjustable helmet visors, a realistic navigation screen, rear fuel cell and a radiator with twin cooling fans.

Video Overview



Hobbywing Brushless System
Hobbywing Brushless System

3300KV 540 motor, 32.mm motor shaft diameter, anodized aluminum motor casing, 60A ESC, all-weather, waterproofing and dusproof, 4-9 cell NiMH or 2-3s LiPo.

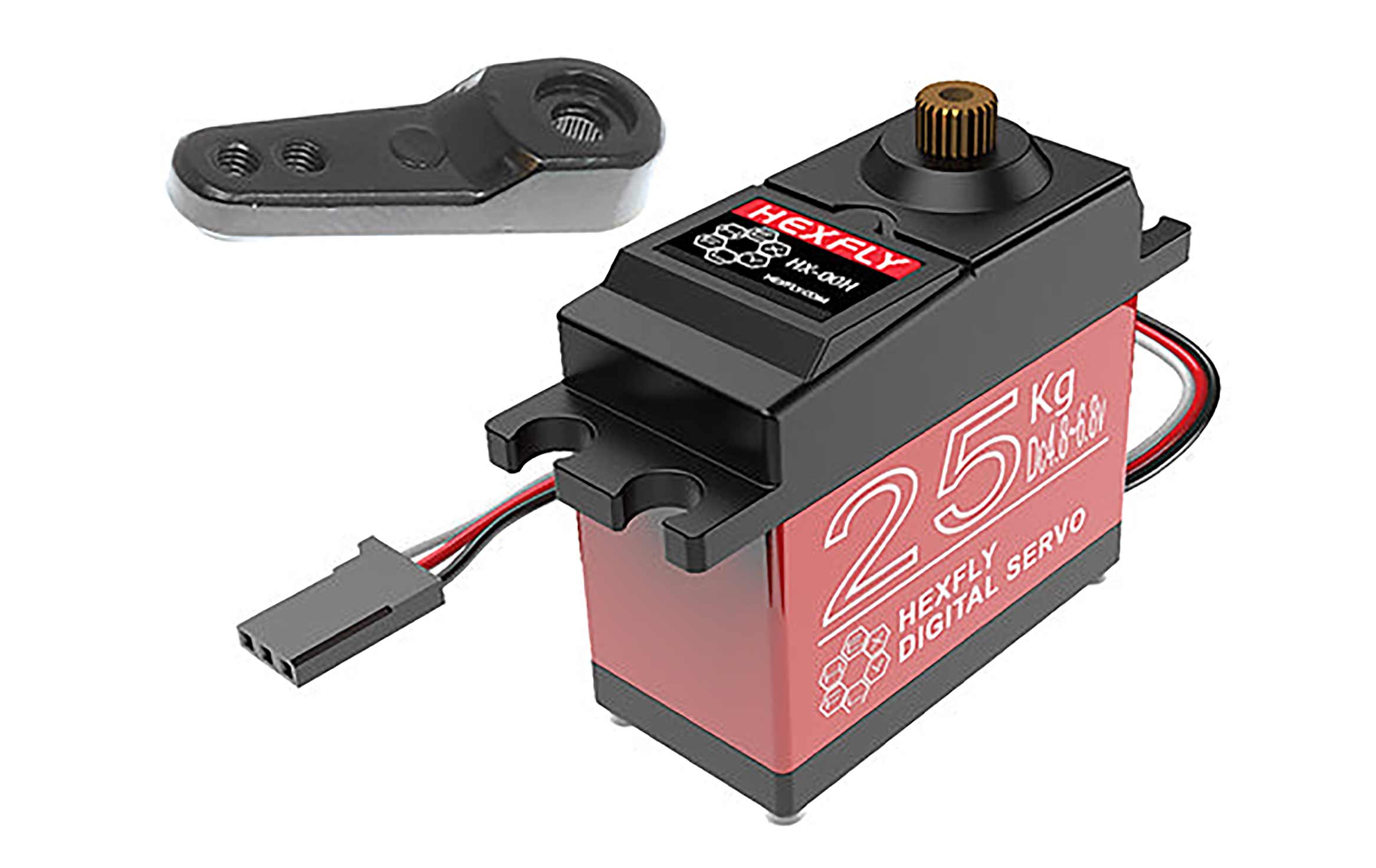

Coreless Digital Servo
Coreless Digital Servo

Metal servo horn, waterproof, internal steel gears, 25kg torque, 5 to 7.4 voltage range, and aluminum center case.



XR247 Heavy-Duty Solid Axles
XR247 Heavy-Duty Solid Axles

Diamond shaped central axle housing easily slides over obsticles, integrated truss for durability, integrated heavy duty double sheer mounting points, and 2.91:1 gear ratio.



Frame Rails
Frame Rails

High strength 1.5mm steel ladder-type frame rails and adjustable wheelbase.



Durable Transmission
Durable Transmission

Gear ratio of 1.54: 1, 32 pitch spur and pinion gear, and adjustable slipper clutch.



Divorced Transfer Case
Divorced Transfer Case

Gear ratio of 1.92:1, centrally mounted transfer case, and MOD 1 gears.

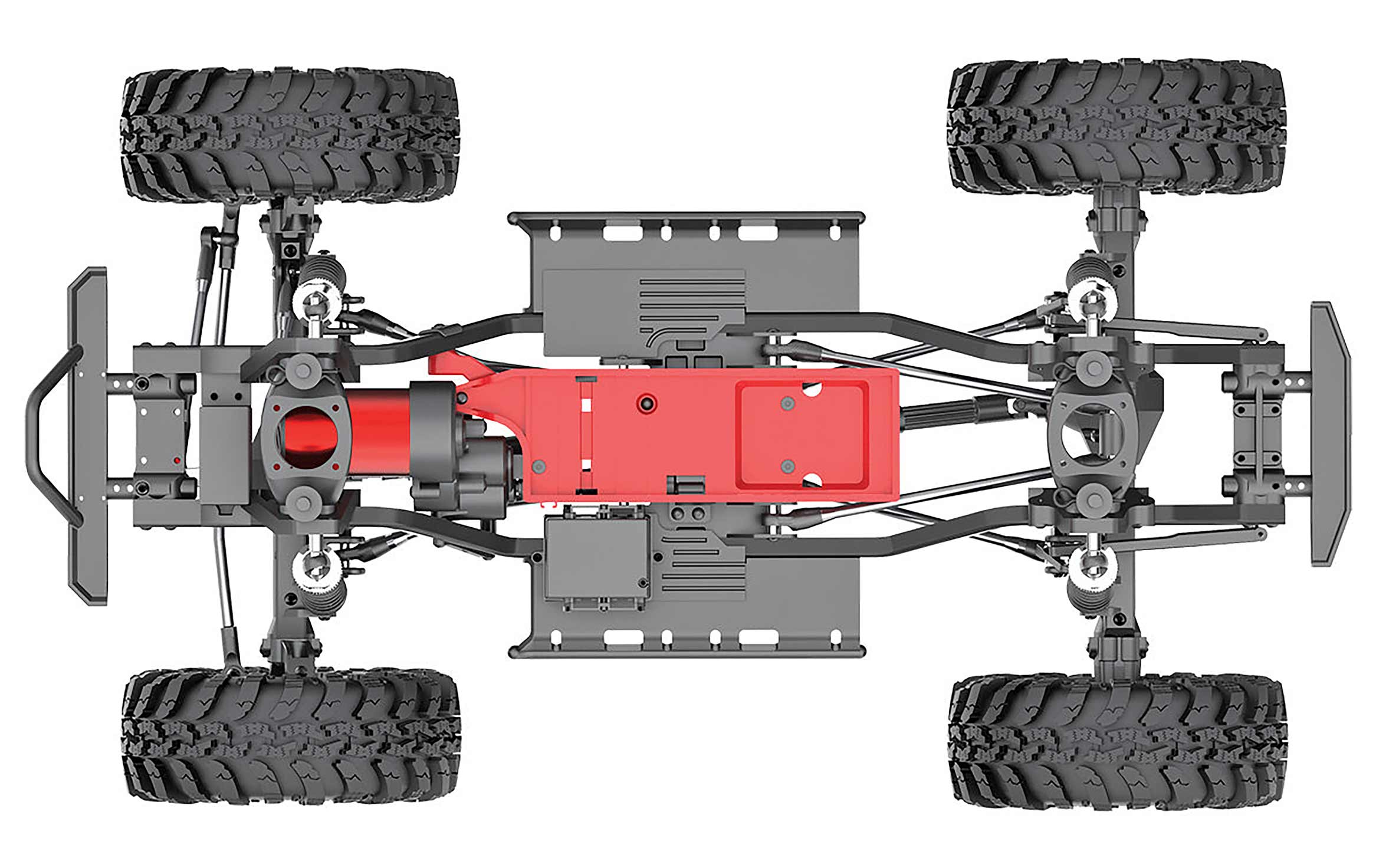

Chassis and Design
Chassis and Design

The Wendigo features a front mounted motor, centrally mounted divorced transer case and strategically placed battery tray. This setup offers excellent weight distribution which causes the Wendigo to behave predictably when climbing over obstacles.

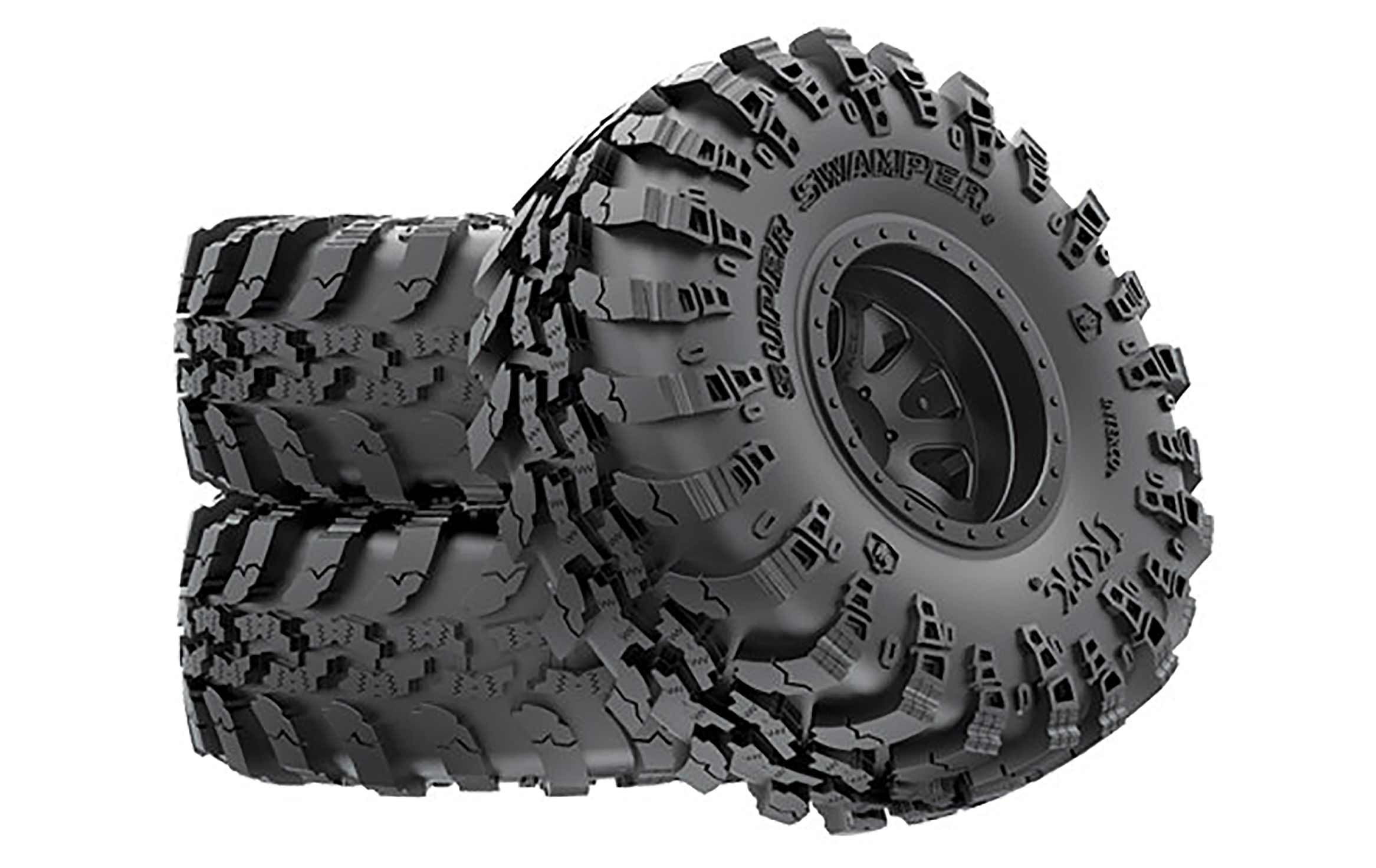

Licensed Wheels and Tires
Licensed Wheels and Tires

A rock racer wouldn't be complete without high quality off road tires and wheels. The Wendigo sits on licensed Intervo Super Swamper 2.2" tires which are mounted to licensed Raceline Avenger wheels.

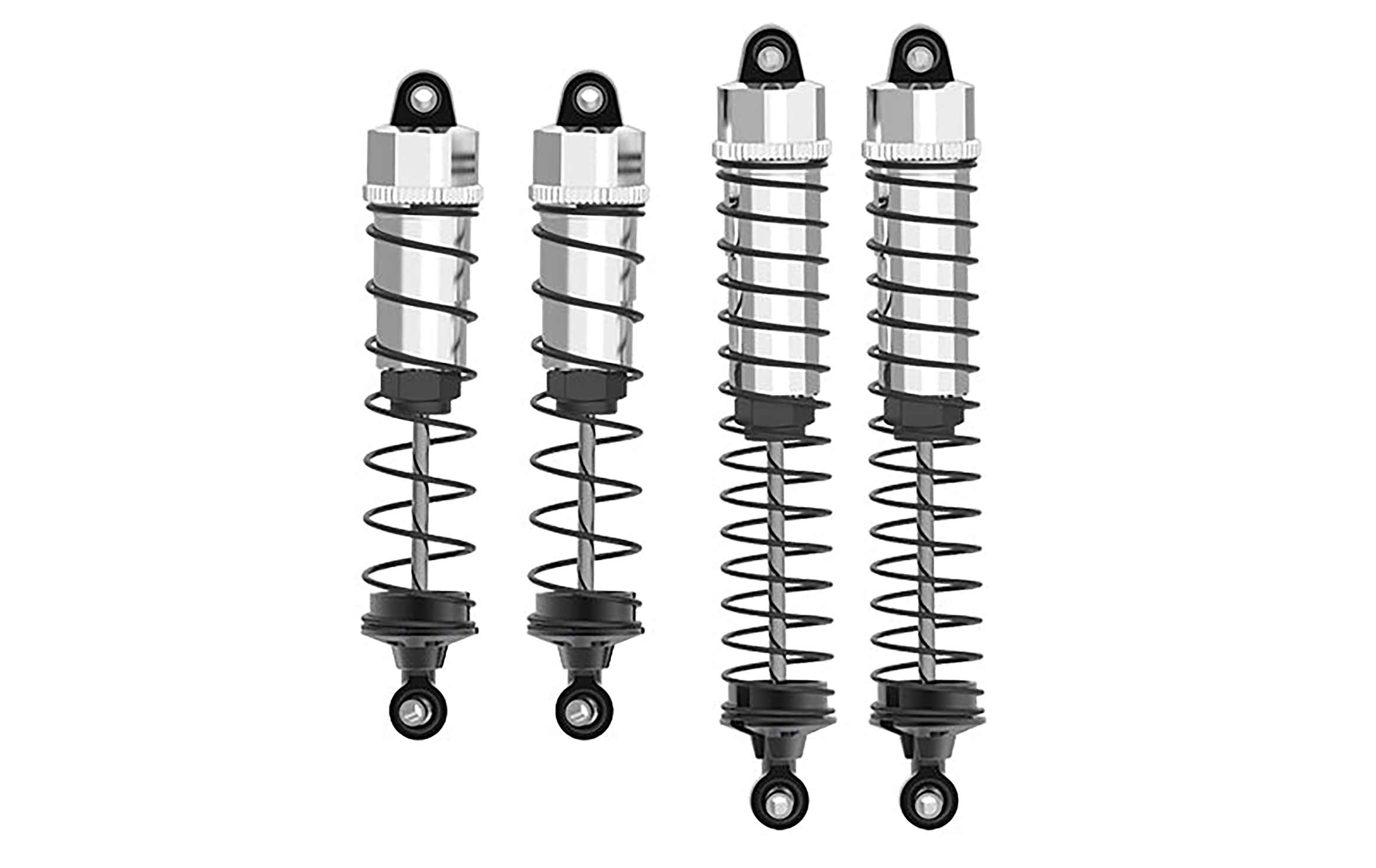

Aluminum Shocks
Aluminum Shocks

The Wendigo aluminum body and capped oil filled shock have a threaded collar for quick adjustments to the vehicle's ride height. Each shock tower offers nine upper shock mounting positions for further suspension tuning.



Precision Steering
Precision Steering

The Marksman has impressive steering geometry with a 47 degree inside steering angle and a 32 degree outside steering angle. This combination of steering geometry and high torque digital steering servo allows this large 1:8 scale trail crawler to maneuver in and out of tight situations.



Product Specifications

Power Type Electric
Servos Digital, 347.1 oz-in (25kg-cm) torque
Motor Type Brushless
Speed Control Included
Product Weight 7.7 lb (3495g)
Tire Tread Super Swamper
Vehicle Type Rock Racer
Water-Resistant Yes
Vehicle Size Standard
Inner Tire / Outer Wheel Diameter 2.2 in
Product Width 12.2 in (309mm)
Radio 2.4Ghz pistol grip
Wheelbase 13.6 in (346.7mm) stock, adjustable from 13.2" (334.7mm) to 14.1" (358.7mm)
Approximate Assembly Time No assembly required
Body Trimmed and finished with roll cage and cockpit detail
Brakes Integral with ESC
Pinion 17T
Scale 1/10
Bushing Material Metal
Charger Sold Separately
Differential Gear Diffs
Max Battery Dimensions 5.4 x 1.8 x 1.54" (138 x 46 x 39mm)
Receiver Included
Shock Type Oil-filled, aluminum body
Wheel Type 8 spoke licensed Raceline Avenger
Ball Bearings Full set, sealed
Chassis 1.5mm steel ladder-type frame rails
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 10.6" (269 mm)
Battery Sold Separately
Connector Type Deans
Ground Clearance At center 4.1 in (105mm),at pumpkin 1.8 in (47mm)
Motor Size 540
Product Length 21.5" (546 mm)
Spur Gear 45T
Suspension 5mm steel links front and rear, adjustable rear sway bar
