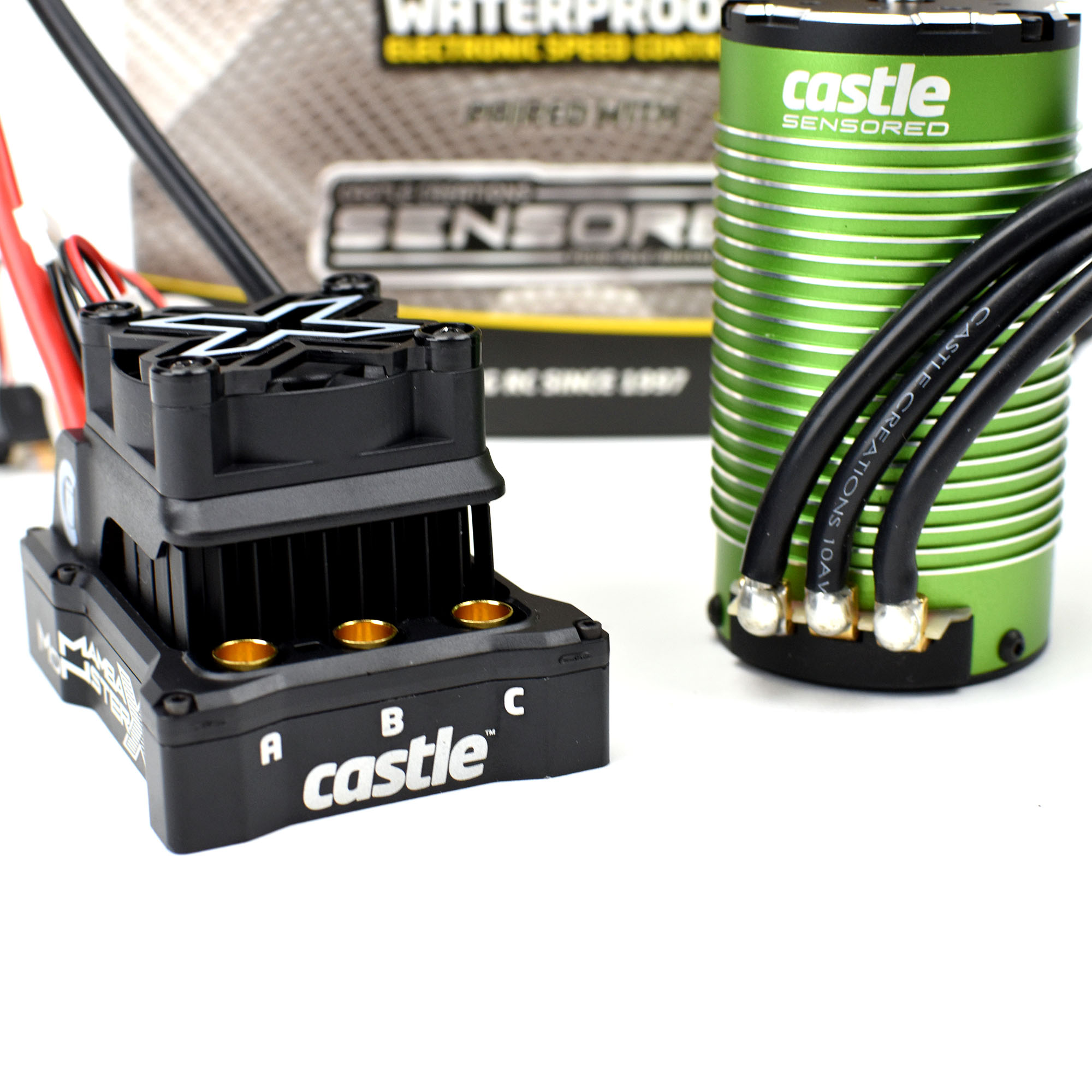

1/6 Mamba Monster X Brushless ESC / 1717-1260Kv Sensored Motor Combo

Item No. CSE010016503
Brand Logo
4.8 out of 5 Customer Rating

1/6 Mamba Monster X Brushless ESC / 1717-1260Kv Sensored Motor Combo

Item No. CSE010016503
$389.95
RC Club points earned on this item shown at checkout.
Select Options
Telemetry Link X-Bus, Spektrum Compatible
CSE010016503 CSE010014800
Telemetry Link X-Bus, Spektrum Compatible
In Stock
$53.95
Castle Link USB Programming Kit V3 011-0119-00
CSE010016503 CSE011011900
Castle Link USB Programming Kit V3 011-0119-00
In Stock
$21.95
B-LINK Bluetooth Adapter
CSE010016503 CSE011013500
B-LINK Bluetooth Adapter
In Stock
$54.95
0 Item Selected Items Selected
Selected Store

Product Details

MORE POWER - COOLER TEMPS - LONGER RUNS Take your scale build or upgrade to the next level with Castle’s legendary brushless power. The MAMBA MONSTER X 8S, 33.6V ESC W/1717-1260KV SENSORED COMBO is a perfect upgrade for heavier 1:8th vehicles and lighter 1:6th vehicles weighing up to 20 lbs. and running up to 8S LiPo.
Key Features
  • Input Voltage Range 2S-8S LiPo
  • Sensorless, Sensored and SmartSense™ Running Modes
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • 4-POLE 12-SLOT sensored motor design that boasts exceptional efficiency and produces less heat
  • Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
icon-box
In The Box
  • (1) Mamba Monster X 8S ESC
  • (1) 4-POLE Sensored 1717-1260KV Motor
  • (1) Castle Sensor Harness Adapter
  • (1) 200mm Sensor Wire
  • (1) Mamba Decals
  • (1) Coupon for free Castle Link USB
  • (1) ESC Quick Start Guide
  • (1) Motor Quick Start Guide
1/6 Mamba Monster X Brushless ESC / 1717-1260Kv Sensored Motor Combo

RACER TESTED - BASHER APPROVED

Drive fearlessly and punch that throttle! The MAMBA MONSTER X 8S utilizes Castle's breakthrough technology CRYO-DRIVE. By reducing the rate at which the ESC heats up and removing heat more efficiently, your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs. These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 40mm cooling fan and a forged elliptical fin heatsink, the design maximizes airflow throughout the system, taking thermal performance to a whole new level.

High-performance demands high quality and this ESC was designed with durability in mind. Constructed around a robust aluminum casing, the epoxy potting guarantees protection around the circuitry and ensures all-weather use. Mamba Monster X 8S is a workhorse, it will dominate in the harshest of environments.

You can easily optimize the ESC for any driving condition, from rugged terrain to smooth pavement to the perils of rock and gravel. Create, save and download setup profiles through the Castle Link Programming Suite on your Windows PC, or wirelessly with the convenience of the new B-Link Bluetooth Adapter and Castle Link app for Android or iOS.

Additional tuning flexibility awaits you with on-the-fly adjustments from your transmitter via the Auxiliary wire. Simply connect the white signal wire to an open radio channel, and enable the feature in Castle Link by selecting what Auxiliary function you would like to use. Access programming parameters such as Torque Control, Max Brake or Rock Race Mode. Optimize your vehicle for any racing or bashing application you can imagine!

When paired with the newly released Castle 1717-1260KV, users with heavy, high speed rigs will experience controllable low-end ranges without sacrificing power, punch or speed. SmartSense mode uses the motor's sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is spinning, it seamlessly transitions to Castle's ultra-efficient sensorless mode. You'll put more power to the ground, where it should be, instead of wasting it through raw heat and RPMs.

Whether you are burning out, dropping the hammer, trigger happy, powering out, on-the rocks, off-the-rocks, wheeling or mud bogging - MAMBA MONSTER X 8S is ready to test the limits of your R/C car or truck.

Features

  • Input Voltage Range 2S-8S LiPo
  • Sensorless, Sensored and SmartSense Running Modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
  • CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Oversized factory equipped thermally controlled 40MM cooling fan
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Easily tune and update ESC with USB and Bluetooth programming options
  • Castle Link USB programming kit (coupon included with purchase)
  • Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
  • Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

Motor Features

  • 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
  • High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
  • Proprietary stator winding produces low internal resistance for a cooler running motor
  • Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life

Product Specifications

Adjustable Timing Yes
Application 1/6 scale vehicles weighing up to 20lbs runnning up to 8S LiPo, Upgrade for heavier 1/8 scale, and lighter 1/6 scale vehicles
Auto Cutoff Yes
Battery Input Lead 10AWG
BEC Yes
BEC Continous Current 8A
BEC Voltage 5.5, 6.0, 7.5, or 8.0 (default 5.5V)
Brakes Proportional
Connector Type 6.5mm Bullet
Drive Type Forward/Brake/Reverse
Input Voltage 2-8S
Motor Design Inrunner
Motor Size Length: 3.35" (85.1mm), Diameter 1.87" (47.6mm)
Motor Type Brushless
Number of Poles 4
Overload Protection Yes
Product Weight ESC, 5.75oz (163g) without battery connector, Motor 21.08oz (597.6g) with wires
Programmable Yes
Reverse Yes
RPM/Volt (Kv) 1260Kv
Shaft Diameter 0.196" (5 mm)
Voltage 7.4 - 33.6V
Water-Resistant Yes
Wire Gauge 10 AWG
