Platinum 200 Amp High Voltage V4.1 Brushless ESC OPTO, 6S-14S

Item No. HWI30209102
Discontinued
Brand Logo
3.4 out of 5 Customer Rating

Platinum 200 Amp High Voltage V4.1 Brushless ESC OPTO, 6S-14S

Item No. HWI30209102
This Item is No Longer Available
Selected Store

Product Details

Key Features
  • High-Performance 32-Bit Processor
  • Elegant Aluminum Case
  • Built-In Switch-Mode BEC
  • Backflow-Proof Circuit
  • Built-In Spark-Proof Circuit
icon-box
In The Box
  • (1) Platinum 200 Amp High Voltage V4.1 Brushless ESC
Design and Qaulity

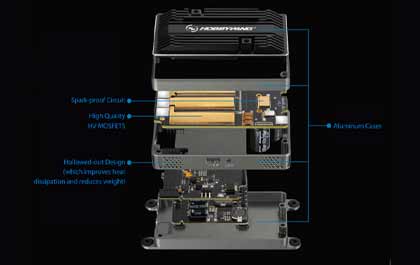

Exquisite Design and Qaulity Components

The elegant cases are made by Aluminum. Top level components combined with the exquisite industrial design guarantee the Platinum HV 200A SBEC V4.1 ESC the unmatchable quality and look.



Heat-Dissipation

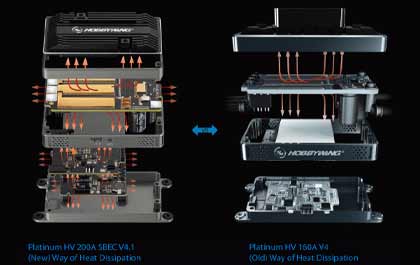

Integrated Heat-Dissipation Structure

The improved structure solves the heat-dissipation problem of the "sandwich" stacking circuit board. The appropriate circuit distribution allows all components on both sides of circuite boards to quickly conduct heat to the Aluminum cases. The way of heat dissipation maximizes the cooling and guarantees the Platinum HV 200A SBECV4.1 ESC always operates in cool and stable condition.



Speed-Governing
Excellent Speed-Governing

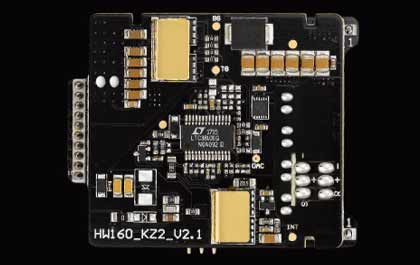

High-performance 32-bit processor combined with advanced algorithm makes the speed-governing excellent for different conditions. With the adjustable sensitivity of speed-governing, every pilot can find the most suitable settings for their helicopter.



Switch-Mode

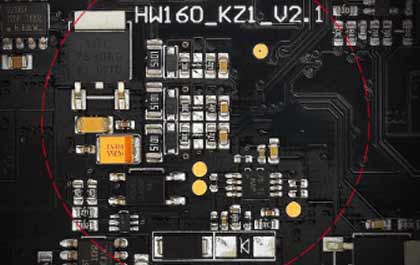

Super Backflow-Proof Switch-Mode BEC

The built-in switch-mode BEC with continuously adjustable output voltage range from 5V to 8V (step: 0.1V) supports connecting a 2S backup battery (to the connection) in parallel for improving the safety and reliability, its backflow-proof circuit prevents the voltage (which is higher than the BEC voltage) from the servo or backup battery from flowing back to the BEC. The addition of buffer enhances the output of high peak current to make the servo response more precise and quick.



Soft-Start
Intelligent and Variable Frequency Soft-Start Technology

Based on the original super soft-start technology, the intelligent and variable frequency soft-start technology combined with the adjustable throttle response time guarantees motors ultra-soft and smooth start and ZERO blade-drift issues of helicopter, this definitely creates a perfect starting for every flight.



Spark-Proof

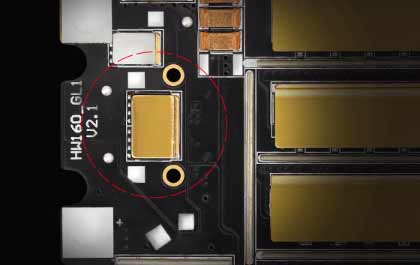

Built-In Spark-Proof Circuit

The built-in spark-proof circuit effectively eliminates the sparks produced when the ESC is powered on and extends the service life of connectors.



Product Specifications

BEC Voltage 5V/8V
Input Voltage 6-14S LiPo
Product Height 1.41" (36 mm)
Auto Cutoff Yes
BEC Continous Current No BEC
Failsafe Yes
Overload Protection Yes
Product Weight 11.46oz (325g)
Brakes Programmable
Programmable Yes
Product Length 4.13" (105 mm)

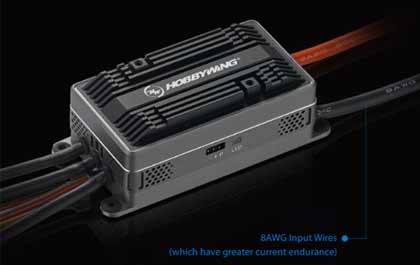

Wire Gauge 10 AWG
Data Port Yes
Flight Log Compatible Yes
Maximum Burst Current 300A
Maximum Continuous Current 200A
Product Width 1.96" (50 mm)
