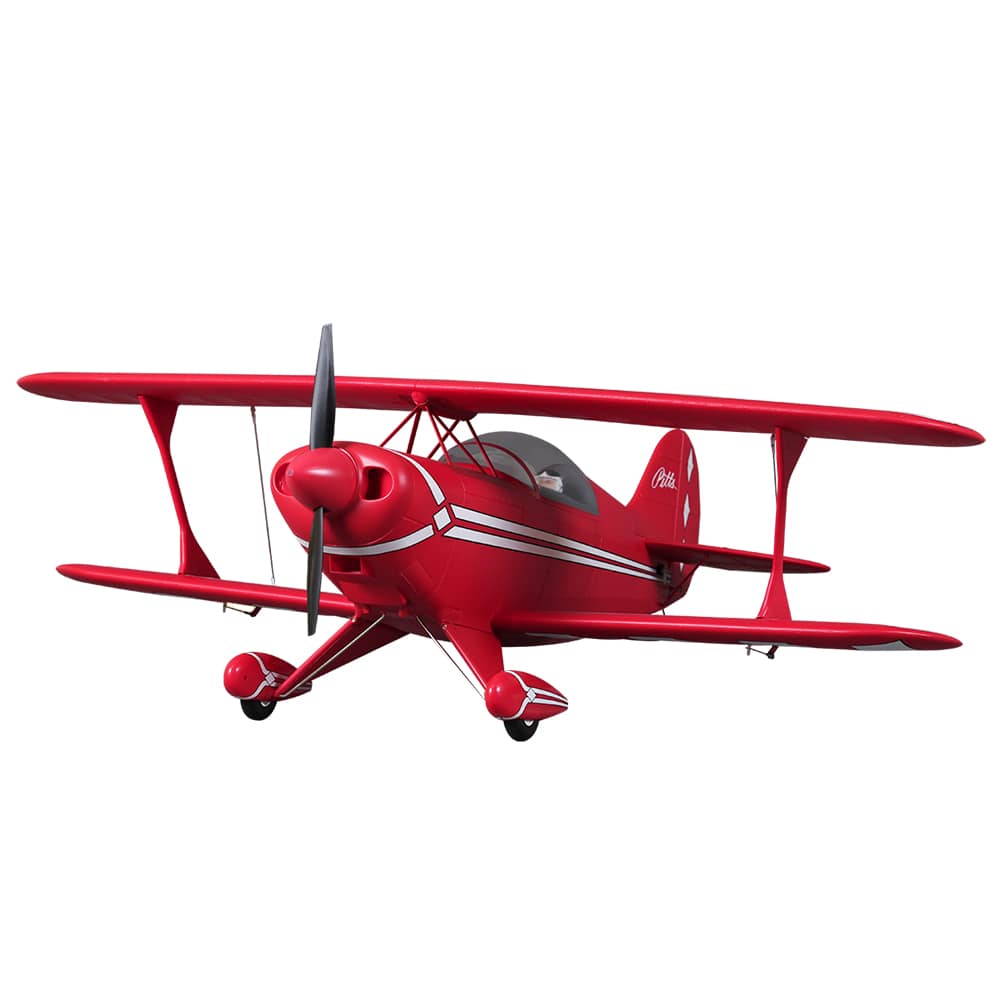

Pitts 1400mm V2 PNP

Item No. FMM126P
Backorder
Brand Logo
4.8 out of 5 Customer Rating

Pitts 1400mm V2 PNP

Item No. FMM126P
$319.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
Next Shipment June 2024
Selected Store

Product Details

icon-box
In The Box
  • (1) Pitts 1400mm V2 PNP
  • (4) 17g Servos
  • (1) Hobbywing 50A ESC
  • (1) Brushless 4258-KV460 motor
  • (1) User Manual
icon-how-to
Needed to Complete
  • (1) 6-Channel Radio System
  • (1) 6S LiPo Battery
  • (1) Compatible LiPo Charger

Features

  • 4258 brushless motor, 50A Hobbywing-sourced ESC, 17g servos
  • Realistic trim scheme, rivets, panel lines and pilot figure
  • Screw-together assembly greatly reduces assembly time
  • Oversized battery compartment for larger, more powerful 6S packs
  • Robust and durable EPO construction

Overview

The Pitts Special is a light aerobatic biplane designed by Curtis Pitts. It has accumulated many competitions wins since its first flight in 1944. The Pitts biplanes dominated world aerobatic competition in the 1960s and 1970s and, even today, remain a potent competition aircraft in the lower categories.

Built upon the successful V1 Pitts biplane, FMS is proud to announce the brand-new Pitts V2. Redesigned with a massive 1400mm wingspan, the Pitts V2 is constructed of lightweight and robust EPO foam material. Proprietary connector plugs built into the wing structure means that the wings can be attached to and detached from the fuselage using just a few screws. The slide-fit wing struts are just as simple, slide them on in just a few seconds and the wing is securely braced!

An oversized battery bay accommodates most 6S packs with ease- giving the pilot ample power to attempt all aerobatic maneuvers. Hobbywing 50A ESC provides bulletproof performance!

While ensuring that the Pitts Special is faithfully recreated, FMS has worked hard to minimize its profit margins in the hopes that pilots who love the Pitts V2 will find it affordable.

With graceful lines from a bygone era, robust airframe and a state-of-the-art power system, the Pitts V2 is a model you shouldn’t miss!

Video Overview

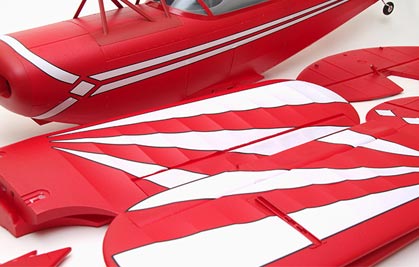

Wing Structure
Wing Structure

Proprietary connector plugs built in the wing structure means that the wings can be attached to and dtached from the fuselage using just a few screws. The slide-fit wing struts are just as simple, slide them on in just a few seconds and the wing is securely braced.

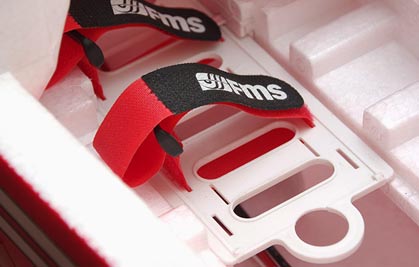

Battery Bay
Battery Bay

An oversized battery bay accommodates most 6S packs with ease - giving the pilot ample power to attempt all aerobatic maneuvers.

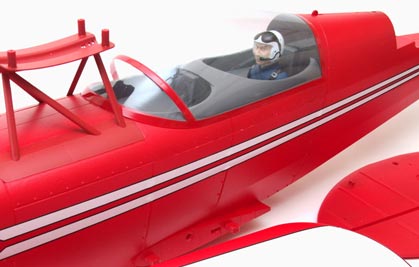

Realistic Trim Scheme
Realistic Trim Scheme

Rivits, panel lines and pilot figure.



EPO Construction
EPO Construction

Robust and durable EPO construction.



Product Specifications

Charger Sold Separately
Wing Loading 0.15 oz-sq in (72.5 g-sq dm)
Motor Size 4258
Product Length 51.1" (1298 mm)
Receiver Sold Separately
CG (Center of Gravity) 6.1 - 6.5" (155 - 165mm) back from leading edge of wing at fuselage side
Completion Level Plug-N-Play
Propeller Size 15 x 9
Recommended Motor Battery 22.2V 4000mAh 35C
Minimum Required Radio 6-channel
Material EPO
Landing Gear Fixed main LG with steerable tail wheel
Speed Control Included
Wing Area 748.5 sq in (48.3 sq dm)
Power Type Electric
Wingspan 55.1" (1400 mm)
