Firma 1100Kv 4-Pole Brushless Motor

Item No. SPMXSM2500
Brand Logo
3.8 out of 5 Customer Rating

Firma 1100Kv 4-Pole Brushless Motor

Item No. SPMXSM2500
$154.99
RC Club points earned on this item shown at checkout.
Select Options
Connector: Gold Bullet Set, 6.5mm (3)
SPMXSM2500 DYNC0091
Connector: Gold Bullet Set, 6.5mm (3)
In Stock
$6.99
Connector: Gold Bullet Set, 6.5mm (10)
SPMXSM2500 DYNC0092
Connector: Gold Bullet Set, 6.5mm (10)
In Stock
$18.99
0 Item Selected Items Selected
Firma 160A Brushless Smart ESC, 3S-8S
SPMXSM2500 SPMXSE1160
Firma 160A Brushless Smart ESC, 3S-8S
In Stock
$219.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features
  • 8S LiPo Compatible
  • Ideal for Arrma Roller Kits and 1/5 scale Bashers and Monster Trucks Using a 3-8S LiPo Setup
  • Alloy Steel 8mm Output Shaft
icon-box
In The Box
  • Firm 1100Kv 4-Pole Brushless Motor
icon-how-to
Needed to Complete
  • 160A ESC

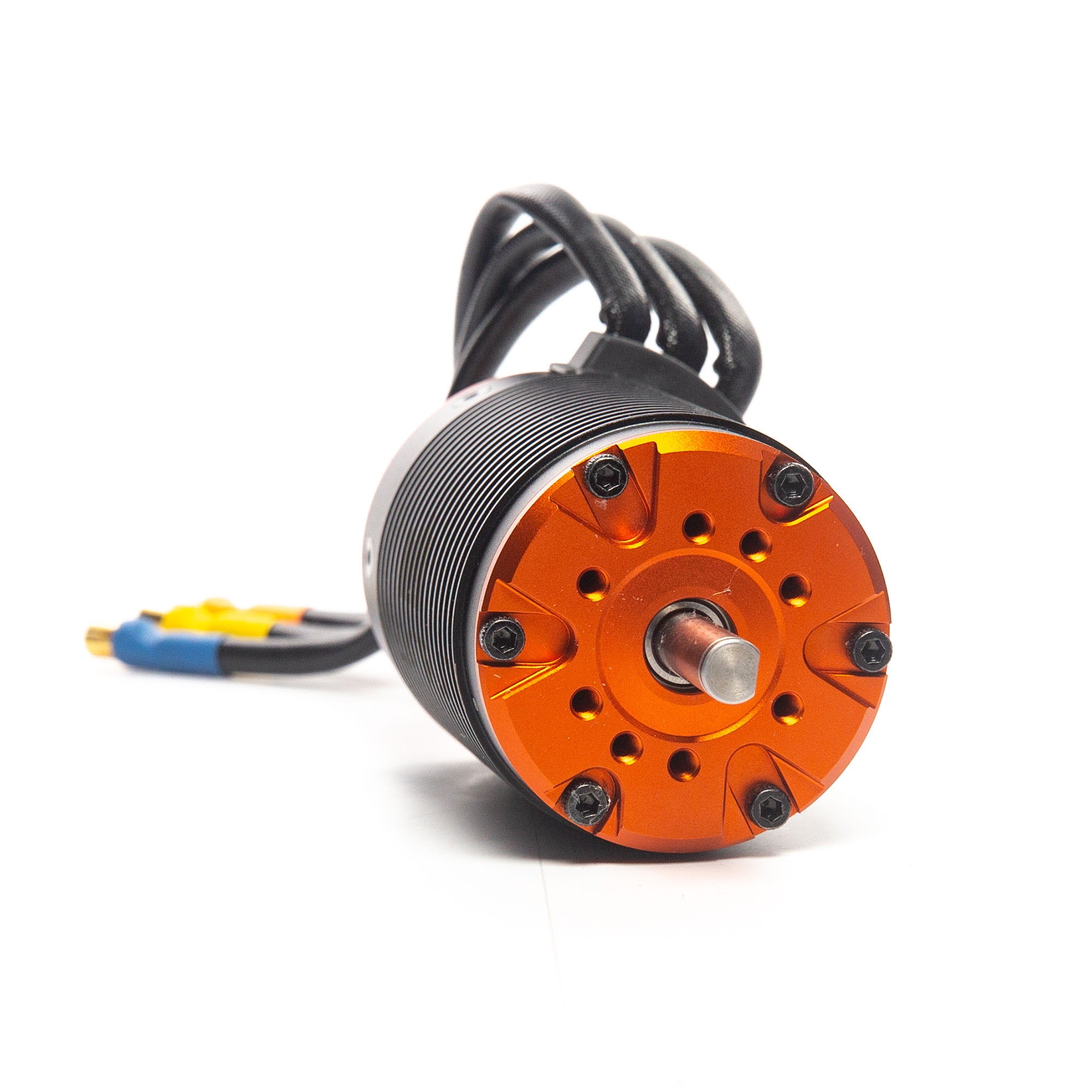

Firma 1100Kv 4-Pole Brushless Motor

Overview

The Firma 1100Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.

Features

  • Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
  • High efficiency design
  • 8S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 6.5mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 8mm shaft
  • Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip

Product Specifications

Manufacturer # 605482719428
Constant Wattage 3000W or more
Maximum Continuous Current 95A
Motor Type Brushless
Motor Design Inrunner
Connector Wire Length 7.48" (190 mm)
Outer Diameter 2.2" (56 mm)
Application Arrma Roller Kits, and 1/5 scale Basher and Monster Trucks
Number of Poles 4
Output 7900W
Product Weight 31.5oz (893g)
Resistance .0041 ohms
Shaft Diameter 0.315" (8 mm)
Connector Type 6.5mm Bullet
Input Voltage 11.1 - 29.6V (3 - 8S)
Kv Rating 10000-1249Kv
Motor Output Lead 6.5
Recommended Speed Control Spektrum Firma 160A Brushless Smart
RPM/Volt (Kv) 16,500/15V
Sensored No
Sensor Type Sensorless
Shaft Length 0.87" (22 mm)
Adjustable Timing No
Integrated ESC No
Bushing Or Bearing Bearing
Efficiency 86%
Motor Class 1/5 Scale
Motor Size 5687
Product Length 3.4" (86 mm)
