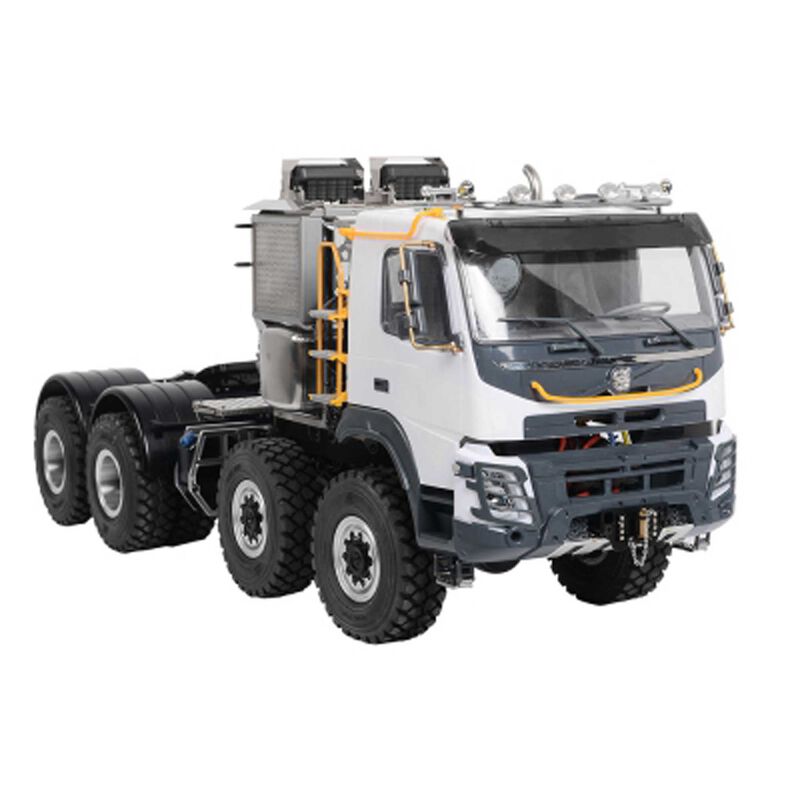

1/14 8WD Tonnage Heavy Haul Truck (FMX) Brushed RTR

Item No. RC4VVJD00034
1/14 8WD Tonnage Heavy Haul Truck (FMX) Brushed RTR
1/14 8WD Tonnage Heavy Haul Truck (FMX) Brushed RTR
1/14 8WD Tonnage Heavy Haul Truck (FMX) Brushed RTR
1/14 8WD Tonnage Heavy Haul Truck (FMX) Brushed RTR
1/14 8WD Tonnage Heavy Haul Truck (FMX) Brushed RTR
Discontinued
Brand Logo
3.3 out of 5 Customer Rating

1/14 8WD Tonnage Heavy Haul Truck (FMX) Brushed RTR

Item No. RC4VVJD00034
This Item is No Longer Available
Selected Store

Product Details

Quick Links

Features

  • Hard Plastic European Style Front Cab
  • Full Metal 2 Speed Transmission (Planetary Gears)
  • Transfer Case (Billet Aluminum)
  • Scale Fuel Tank (Billet Aluminum)
  • Super Scale Leaf Spring Suspension Setup
  • Scale Wheels (Billet Aluminum)
  • Remote Lockable Rear Axle (Locking Differential)
  • Full Metal Front and Rear Axle Housing
  • Steel Scale Drive Shaft
  • Realistic Front Cab Latch
  • Retractable Steel Ladder
  • Realistic Front Cab Latch
  • Retractable Steel Ladder
  • Molded Functional Fuel Tank
  • Rear Light Guard (Protects Against Rocks)
  • Scale Light Buckets (Fits 3-5mm LED)
  • Maximum Mass Load: 176lbs / 80kg
  • Brushed Electric Motor
  • Basic 6 Channel 2.4Ghz Radio
  • Professionally Pre-assembled
  • Manufactured by JDCustoms
  • 30 Days Limited Warranty
Needed to Complete
  • LiPo Battery: RC4WD Z-S1718 Earth Digger/Earth Mover 3S 11.1V 25C
  • 6500mAh with XT60 Connector
  • AA Batteries: Four for transmitter
What's in the Box?
  • (1) RC4WD 1/14 Scale Electric Powered Assembled 8x8 Tonnage Heavy Haul Truck (FMX)

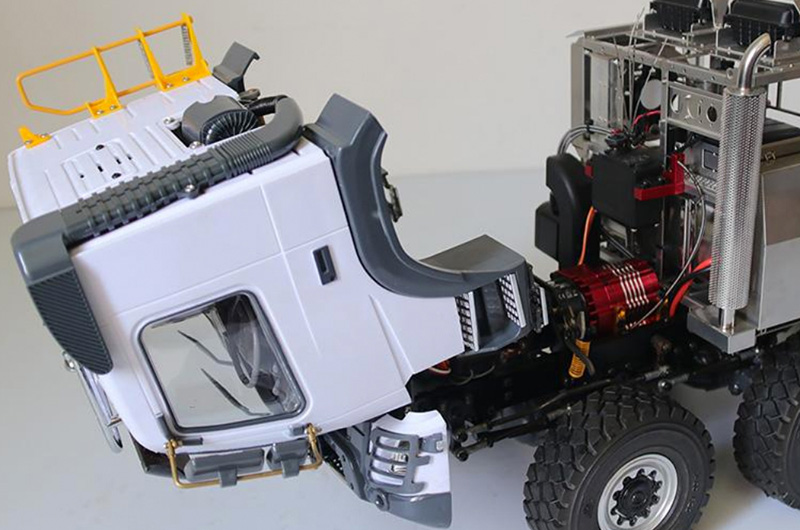

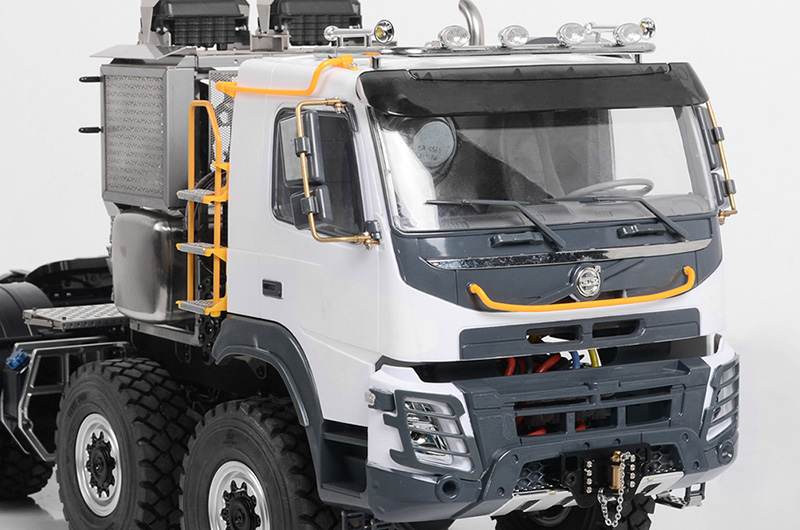

Hard Plastic European Style Front Cab

Hard Plastic European Style Front Cab



Realistic Front Cab Latch

Realistic Front Cab Latch

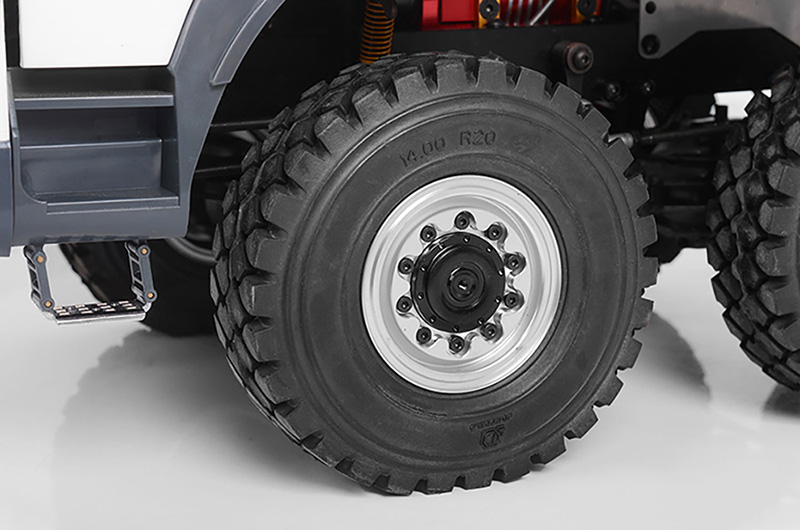

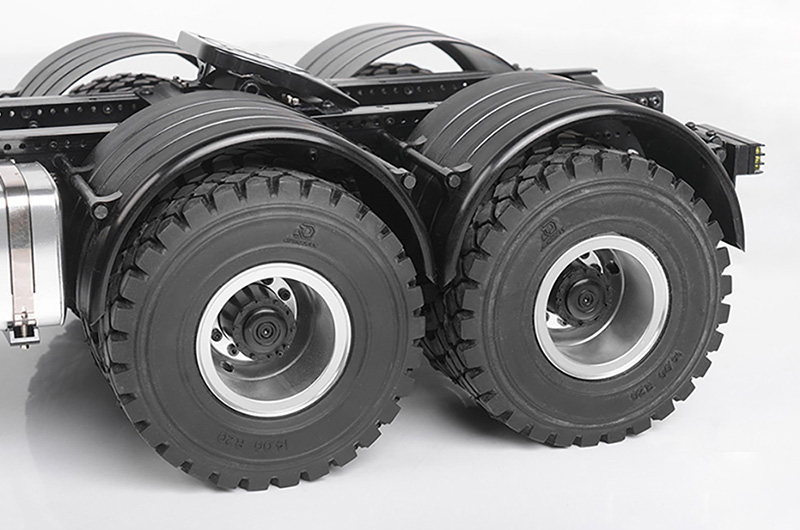

Scale Wheels

Scale Wheels (Billet Aluminum) and King of the Road 1.7" (43.18mm) inner diameter, hard rubber semi truck compound tires.



Rear Light Guard

Rear Light Guard (Protects Against Rocks)

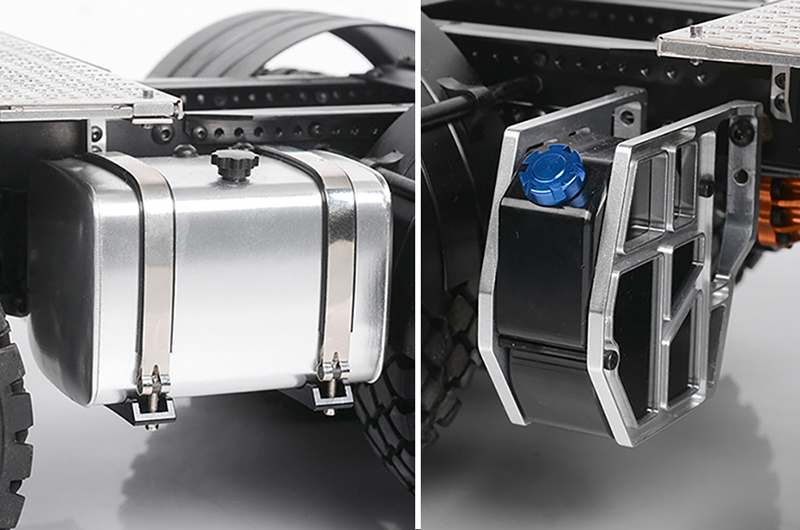

Scale Fuel Tanks

Scale Fuel Tank (Billet Aluminum) and Molded Functional Fuel Tank



Retractable Steel Ladder

Retractable Steel Ladder



Notes

  • Must turn on the transmitter before starting the ESC
  • ESC Supports XT60 Connector.
  • The ESC does not have lipo cut off.
  • While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware.
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • Do not over-tighten screws, or you may strip the thread.
  • Do not use larger than 3S battery. (11.1 volt(s)).
  • This product is for experienced R/C users. Not recommended for beginners.
  • The axle hubs can be removed, but may require additional force.
  • Speaker included, but sound unit sold separate.

Product Specifications

Receiver Included
Wheel Type Billet aluminum
Charger Sold Separately
Differential Remote lockable rear axle (locking diff)
Motor Type Brushed
Speed Control Included
Drivetrain 8WD
Product Height 10.9" (278mm)
Tire Compound Hard rubber semi truck compound
Ball Bearings Full set
Completion Level Ready-To-Run
Approximate Assembly Time No assembly required
Body Hard plastic European style front cab
Connector Type XT-60
Internal Gear Ratio 2.6:1
Product Length 26.3" (669mm)
Suspension Super scale leaf spring
Scale 1/14
Product Weight 17.8lbs (8.1kg)
Tire Tread Hard Rubber
Vehicle Type Semi Tractor
Water-Resistant Yes
Power Type Electric
Battery Tray Dimensions 6.01 x 1.87 x 1.4" (153 x 47.5 x 35.5mm)
Outer Diameter 3.42 in (87mm)
Product Width 9.05" (230mm)
Radio Included
