SR6100AT DSMR 6-Channel AVC Telemetry Surface Receiver

Item No. SPMSR6100AT
Brand Logo
3.4 out of 5 Customer Rating

SR6100AT DSMR 6-Channel AVC Telemetry Surface Receiver

Item No. SPMSR6100AT
$99.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Product Features

  • 6-channel DSMR / DSM2 receiver
  • Full-range telemetry capabilities with Spektrum Firma Smart ESC
  • Great for models that will benefit from AVC Technology that need additional channels for lights, shift servos and other accessories
  • Steering priority puts the driver in complete control
  • Fully adjustable-set the precise amount of stability you want or turn off if desired
  • Water-resistant "Realkote" coating protects electronics
  • Voltage sensor data port, voltage sensor included
  • Works with any RC car, truck or buggy
  • Compatible with all DSMR transmitters

Product Overview

Built around frequency-agile DSMR technology, the Spektrum SR6100AT 6-channel receiver delivers superb range and response, especially in places where multiple 2.4GHz systems are in use at one time. SR6100AT features patented Spektrum AVC (Active Vehicle Control) and full range telemetry capabilities. AVC Technology reads your control inputs, senses your car's direction and makes as many as 180 steering and power adjustments per second so you can hold the line without holding back. SR6100AT taps into telemetry functions from Spektrum Smart Technology electronics speed controls and conventional voltage sensor.

Video Overview

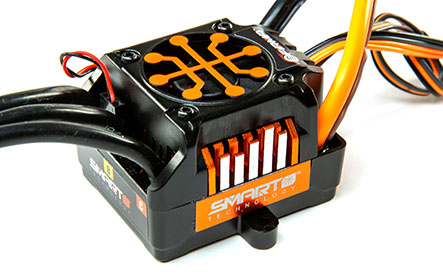

Smart Throttle
Smart Throttle

The SR6100AT receiver throttle port includes Smart Throttle. This port will automatically detect when a Smart throttle electronic speed control is plugged in and the throttle port will begin to operate in Smart throttle mode. When combined with Spektrum Smart LiPo batteries with IC series connectors can pass along battery data from compatible Spektrum Smart batteries. The SR6100AT also features two integrated telemetry ports that are compatible with telemetry capable DSMR transmitters. If a standard ESC or servo is plugged into the throttle port on the SR6100AT receiver, the throttle port will operate normally like any conventional receiver.



AVC Technology
AVC Technology

With the SR6100AT driver's get stability control for ANY vehicle in their collection! You can have the stability control of AVC™ (Active Vehicle Control) technology in any vehicle just by adding the SR6100AT receiver and binding it to an AVC compatible transmitter. AVC technology creates a more enjoyable driving experience by managing the vehicle's driving characteristics and attitude. This translates into more control for you and a more manageable vehicle in all driving environments.



AVC Auto Calibration
AVC Auto Calibration

With the latest technology and hardware, there is no longer any need to manually calibrate the steering and throttle endpoints on your AVC receivers. These settings are now communicated from the transmitter’s settings to the receiver, streamlining calibration and getting you started quickly. Spektrum AVC automatically initializes and calibrates the 3-axis gyro system during start-up. All you need to do is power on, place the vehicle flat and on its wheels, wait a few seconds and GO!

Please note - Transmitter firmware 2.03 and Receiver firmware 2.40.11 or higher is required.



Product Specifications

Antenna Length 4.7" (120mm)
Band 2.4GHz
Bind Method Bind Button
Channels 6
Data Port No
Failsafe Yes
Flight Log Compatible Yes
Input Voltage 3.5 - 9.6V
Modulation DSMR
Part Type Electronics
Product Height 0.59" (15.1mm)
Product Length 1.7" (42.4mm)
Product Weight 0.35oz (10g)
Product Width 0.94" (23.9mm)
Programmable Yes
Range Full
Resolution 1024
Rev Limiter No
Technology Smart
Telemetry Compatible
Water-Resistant Yes
