S6295 1/8 HV High Speed High Torque Brushless Metal Gear Servo

Item No. SPMSS6295
S6295 1/8 HV High Speed High Torque Brushless Metal Gear Servo
S6295 1/8 HV High Speed High Torque Brushless Metal Gear Servo
S6295 1/8 HV High Speed High Torque Brushless Metal Gear Servo
Tire and Tech Savings!
Brand Logo
5 out of 5 Customer Rating

S6295 1/8 HV High Speed High Torque Brushless Metal Gear Servo

Item No. SPMSS6295
$159.99
Was $189.99. Save $30! Ends 4/30. ⓘ
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
The link to S6295 1/8 HV High Speed High Torque Brushless Metal Gear Servo has been copied

Product Details

Spektrum™ High-Voltage Brushless Servos deliver premium power, precision, and performance. The S6295 is compatible with 8.4V input and boasts a durable, all-aluminum case that helps dissipate heat. Powered by a class-leading brushless powertrain, the S6295 also offers superior protections, such as soft start, over current protection and advanced failsafes. Its metal gear train has been engineered for tight mesh, low wear, and smooth operation. Featuring blindingly fast 0.062 sec speeds, the S6295 servo is a top choice for serious 1/8th scale off-road racers. Equally capable of high-performance operation in crawling and bashing applications that demand fast reactions, maximum torque and holding power. The convenience of a removeable servo lead lets you select different lengths for different vehicle applications.
S6295 1/8 HV High Speed High Torque Brushless Metal Gear Servo
Quick Links
icon-pdf-download Manuals & Support

Features

  • Sleek black and silver anodized metal case
  • Brushless power and reliability
  • High Voltage (HV) Capable (6.0V-8.4V)
  • 23T output Spline
  • Water Resistant
  • Hardened steel gears
  • Precision engineered gear train for tight and low wear mesh
  • Ultra-fast transit speed (0.062sec at 8.4V)
  • Impressive torque (30kg-cm / 416oz-in at 8.4V)
  • Engineered to excel in 1/8th Scale Racers, RC Crawlers and Scalers
  • Removable standard size servo connector for easy lead swaps
  • Soft-Start puts less strain on steering components during start up
  • Advanced failsafe and protections

Product Specifications

Spline Count 23 - Tooth
Water-Resistant Yes

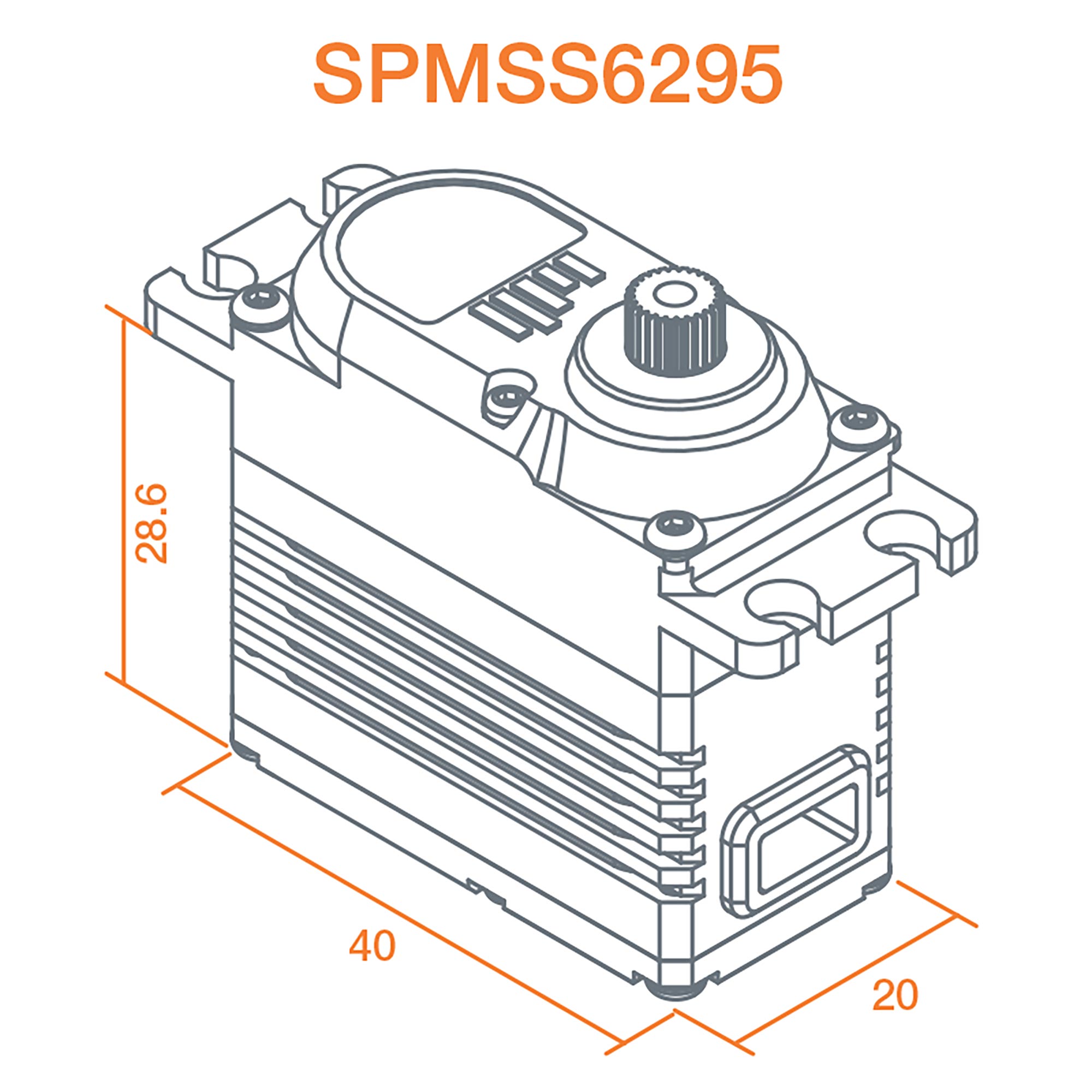

Product Width 0.78" (20 mm)
Torque 416oz-in (30kg-cm) at 8.4V
Servo Operating Voltage 6.0 - 8.4V (HV)
Product Height 1.12" (28 mm)
Servo Type Digital
Connector Type Universal
Product Length 1.57" (40 mm)
Servo Size Category Standard
Gear Type Metal
