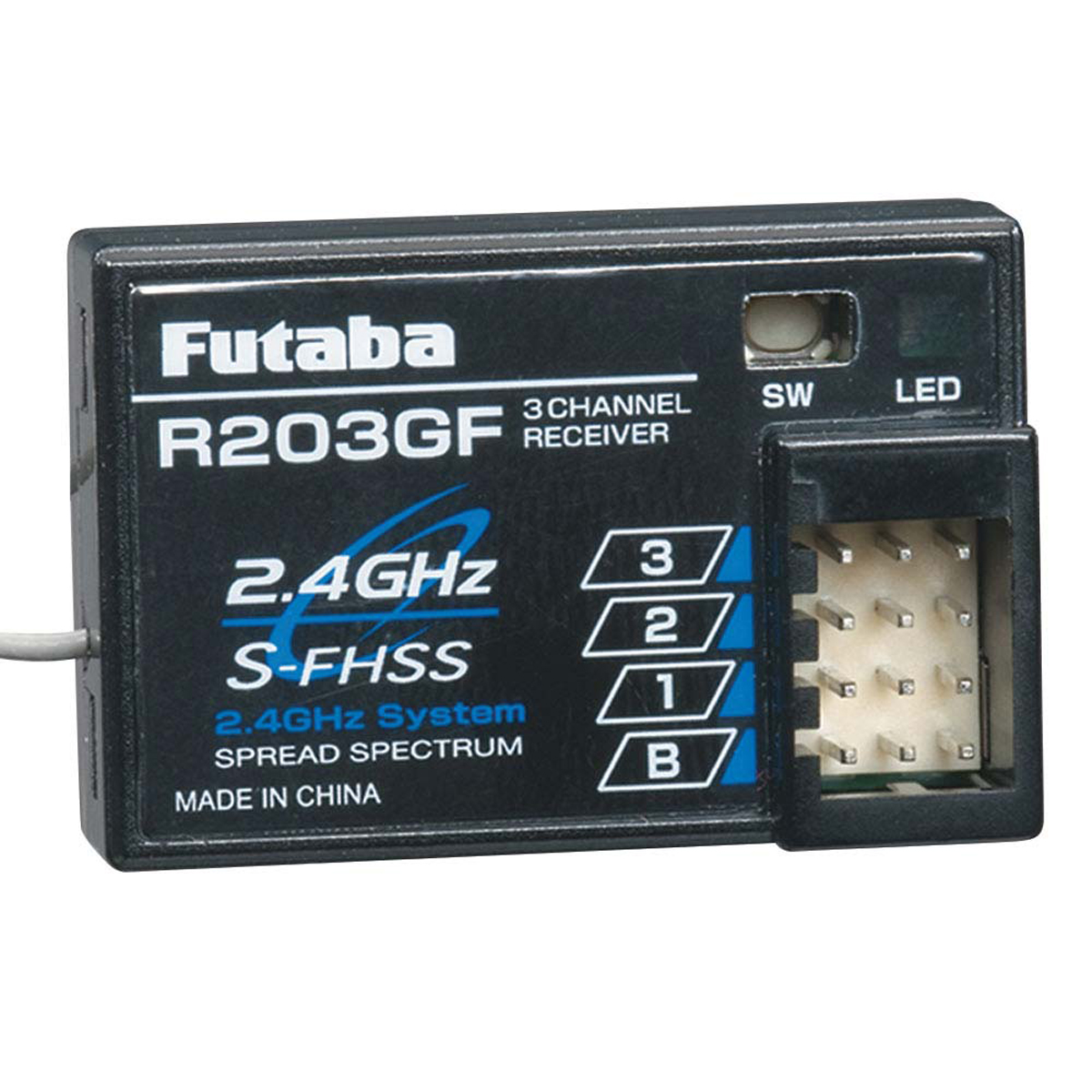

R203GF 3-Channel S-FHSS Receiver
Item No.
FUTL7603
Product Details
Key Features
- S-FHSS/FHSS auto detection
- Normal mode frame rate is (FHSS/S-FHSS) 13.63ms and accepts any type of servos or peripherals.
- High-Speed mode (in 4PL tx only), with an output of 6.8ms accepts digital servos including the BLS series and most peripheral equipment such as brushless ESCs
- One year limited warranty through Hobby Services beginning at date of purchase
- Dimensions: 1.54 x 1.02 x 0.39" (39 x 26 x 10mm)
- Weight: 0.28oz (8g)
- Operating Voltage: 4.8 - 7.4V (shared with servo)
- Battery Fail Safe Voltage: 3.8V*
- Current Drain: 30mA at no signal
- *Battery fail safe voltage is set for 4-cell NiCd/NiMH battery. Battery F/S does not work properly when other type of battery is used
- Antenna Length: 7-1/2"
In The Box
- Futaba R203GF 2.4GHz S-FHSS 3-ch Receiver with Instructions
Needed to Complete
- Installing in model and linking to transmitter
