Product Details

The ASW 28 2.0m electric sailplane is one of the most maneuverable, highest-performance gliders from Tower Hobbies. It is also a high-level product that takes full advantage of accumulated design experience and technical solutions from many years of development.
Key Features
  • EPO Foam Construction
  • No Adhesive Required for Assembly
  • Preinstalled Brushless Outrunner Motor
  • Two-Piece Wing with Optional-Use Winglets
  • Includes 40A ESC, Folding Propeller, and Metal-Geared Servos
icon-box
In The Box
  • (1) ASW 28 2.0m PNP Sailplane
  • (1) Brushless Outrunner Motor (installed)
  • (1) Brushless 40A ESC (installed)
  • (1) Folding Propeller Assembly
  • (1) Instruction Manual
icon-how-to
Needed to Complete
  • (1) 6+ Channel Radio with Receiver
  • (1) 4S 2200mAh LiPo Battery
  • (1) Compatible LiPo Battery Charger
ASW 28 2.0m PNP

Features

  • High strength fuselage and wing structure with pre-installed carbon rods and stainless tubes.
  • The wing spar joiner adopts high strength CNC aluminum with threads, ensuring the wing is supported during flight and landing.
  • A large battery compartment is suitable for a 4S 2200mAh LiPo Battery for a longer flight time.
  • A folding propeller is included to switch between powered flight and gliding flight with ease.
  • Configured with Hobbywing's 40A ESC, six 9g metal gear servos, and a powerful 3542-850 motor.
  • Three NACA vents are located in the nose allowing propper motor, ESC, and battery cooling.

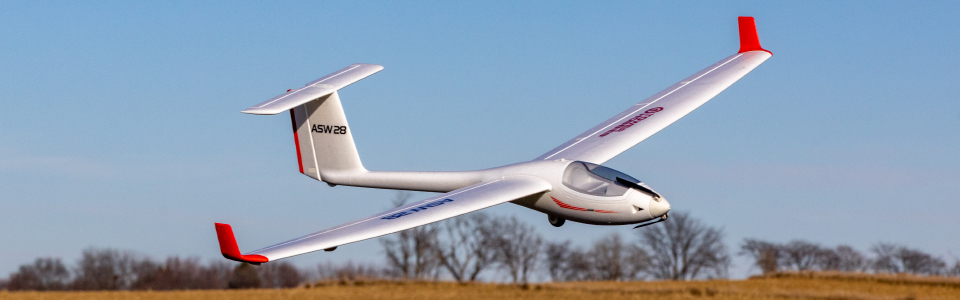

Scale Appearance, Durable Construction

As a scale glider, the ASW 28 maintains the same outlines and appearance as the full-size aircraft. The detachable winglets allow you to easily experience one plane, with two different kinds of flying fun.

The ASW 28 also adopts durable EPO materials and multiple integrated carbon tubes, which greatly improve the crash resistance. Hobbyists can easily perform various aerobatic maneuvers, such as rolls, loops, and more.

Quick Assembly With No Glue Required

The fuselage has threaded retainers for the aluminum spars, and integrated hands-free servo plugs for no manual wiring. With just 6 screws, no glue is required for assembly. The assembly can be completed in less time than it takes to charge a battery.

Three NACA air inlets are located at the nose of the aircraft, and the large air outlet at the bottom of the fuselage effectively provides cooling for the motor, ESC, and battery.

Servo boxes and protective covers are designed to make servo maintenance convenient, and to protect servos during landing.

There are three fiber hinges designed in the vertical stabilizer to prevent breakage during flight and landing.

A Great Power System Makes Flying More Enjoyable

The ASW 28 adopts an outstanding power system, consisting of a 3542-850KV motor, 40A Hobbywing ESC, and an efficient folding propeller. Metal-geared servos, functional flaps, and ball link-equipped linkages provide positive control and ensure excellent gliding performance.

In addition, the ASW 28's large battery compartment allows 3-4S 2200-3300mAh batteries for up to 10-15 minute flight times, giving you more time to enjoy flying.

Video Overview



The Rc Saylors Video Overview



Brian Phillips RC Video Overview



Plug-N-Play
Plug-N-Play

Out of the box as a Plug-N-Play aircraft, allowing you to choose your own radio system and fly the way you want to fly.



Exclusive Decals
Exclusive Decals

Includes exclusive Tower Hobbies decals.

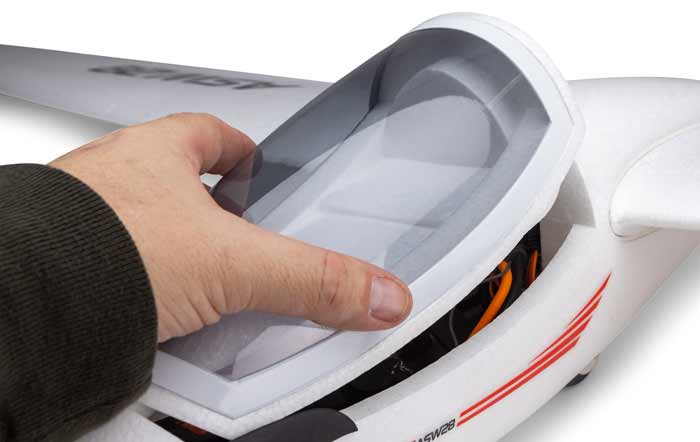

Push Latch Canopy
Push Latch Canopy

The canopy adopts a push latch design to prevent the canopy from flying off during flight.



Easy Assembly
Easy Assembly

Easy to assemble with only four screws for the main wings and two screws for the horizontal stabilizer, with no glue necessary for entire aircraft.



Folding Prop
Folding Prop

A folding propeller is included to switch between powered flight and gliding flight with ease.

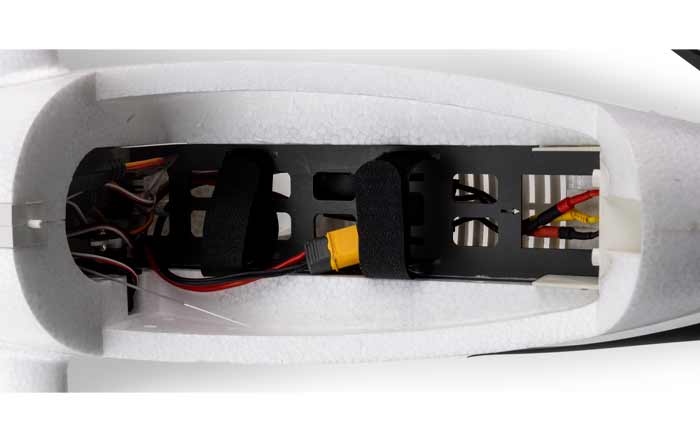

Large Battery Compartment
Large Battery Compartment

A large battery compartment is suitable for a 4S 2200mAh LiPo Battery for a longer flight time.



NACA Vents
NACA Vents

Three NACA air inlets are located at the nose of the aircraft, and the large air outlet at the bottom of the fuselage effectively provides cooling for the motor, ESC, and battery.

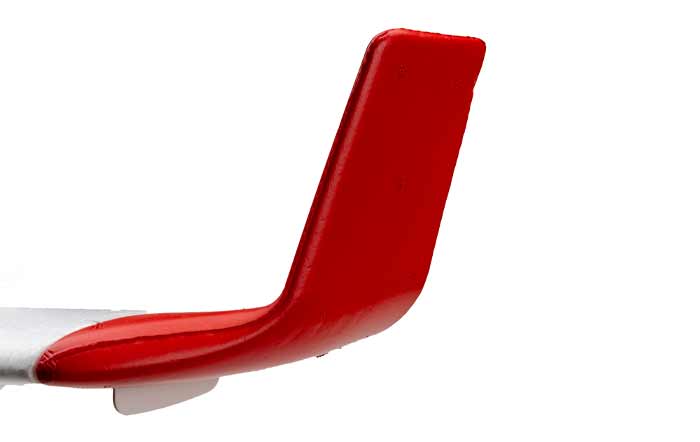

Scale Winglets
Scale Winglets

Includes scale winglets like the real aircraft, which can be detached quickly. Pilots can enjoy two different flight experiences with or without the winglets.

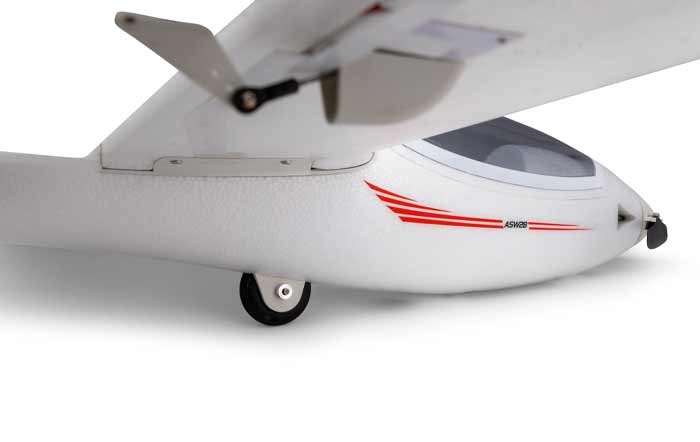

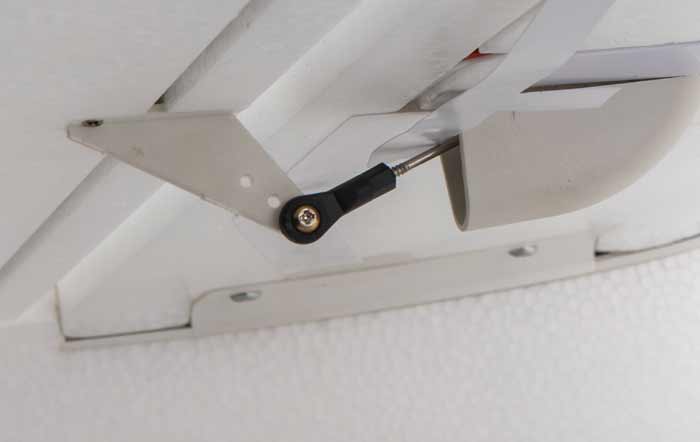

Ball Links
Ball Links

Adopts ball link control horns for a stronger link between the servos and control surfaces.

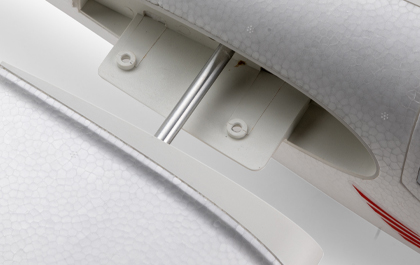

CNC Aluminum
CNC Aluminum

The wing spar joiner adopts high strength CNC aluminum with threads, ensuring the wing is supported during flight and landing.

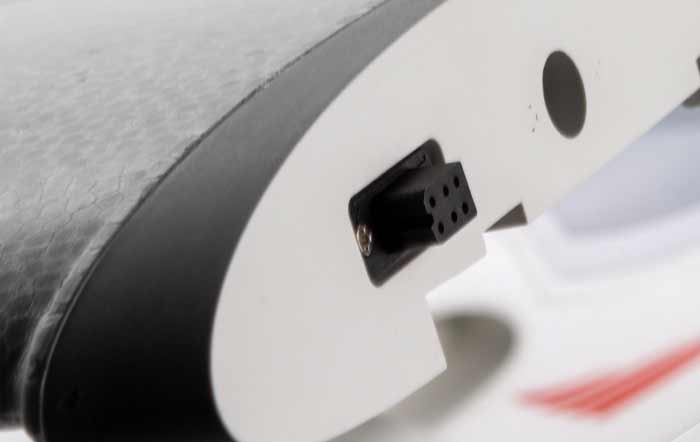

Embedded Connectors
Embedded Connectors

The wing has embedded metal connectors to keep the functional wing-dihedral and a plug-in connector for quick assembly.



Footer Image



Product Specifications

Charger Sold Separately
Receiver Sold Separately
LiPo Compatibility 3S, 4S
Recommended Motor Battery 4S 2200mAh LiPo Battery
Completion Level Plug-N-Play
Propeller Size 11x6, Folding
Minimum Required Radio 5+ Channel Radio
Radio Sold Separately
Battery Sold Separately
Motor Size 3542-850Kv Brushless Outrunner
Product Length 45.9" (1166 mm)
Power Type Electric
Servos Included
Skill Level Level 3
Trim Scheme Colors White / Red
Wingspan 79.5" (2019 mm)
Approximate Assembly Time Less Than 30 Minutes
Approximate Flight Time 10-15 Minutes
Flaps Yes
Material EPO
Motor Type Brushless
Speed Control Included
Product Weight 65.5 oz (1800g)
