60-Amp Pro Switch-Mode BEC Brushless ESC V2: EC3

Item No. EFLA1060B
Tire and Tech Savings!
Brand Logo
5 out of 5 Customer Rating

60-Amp Pro Switch-Mode BEC Brushless ESC V2: EC3

Item No. EFLA1060B
$49.99
Was $97.99. Save $48! Ends 4/30.
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features

  • Up to 60 amps continuous current with proper air flow and 75 amps burst current (15 seconds)
  • 5A continuous current, 5V switch-mode BEC circuit (proper cooling and airflow required)
  • Stronger BEC for support of most 3-axis stabilization systems
  • Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
  • 3- to 6-cell Li-Po, 9 to 18-cell Ni-MH/Ni-Cd input voltage
  • Finned heat sinks
  • Programmable motor braking
  • Safe power-arm mode prevents accidental starts
  • Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
  • Programmable throttle input range (1.1ms-1.9ms or 1.2ms-1.8ms)
  • Programmable soft start for helis and airplanes
  • Auto motor shut down if signal is lost or there is interference
  • Programmable timing—5 user-selectable ranges for use with a large variety of brushless motors
  • Utilizes new smaller MOSFET technology to minimize weight
  • Radio system power on/off switch
  • Pre-wired connectors—E-flite® EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads

Overview

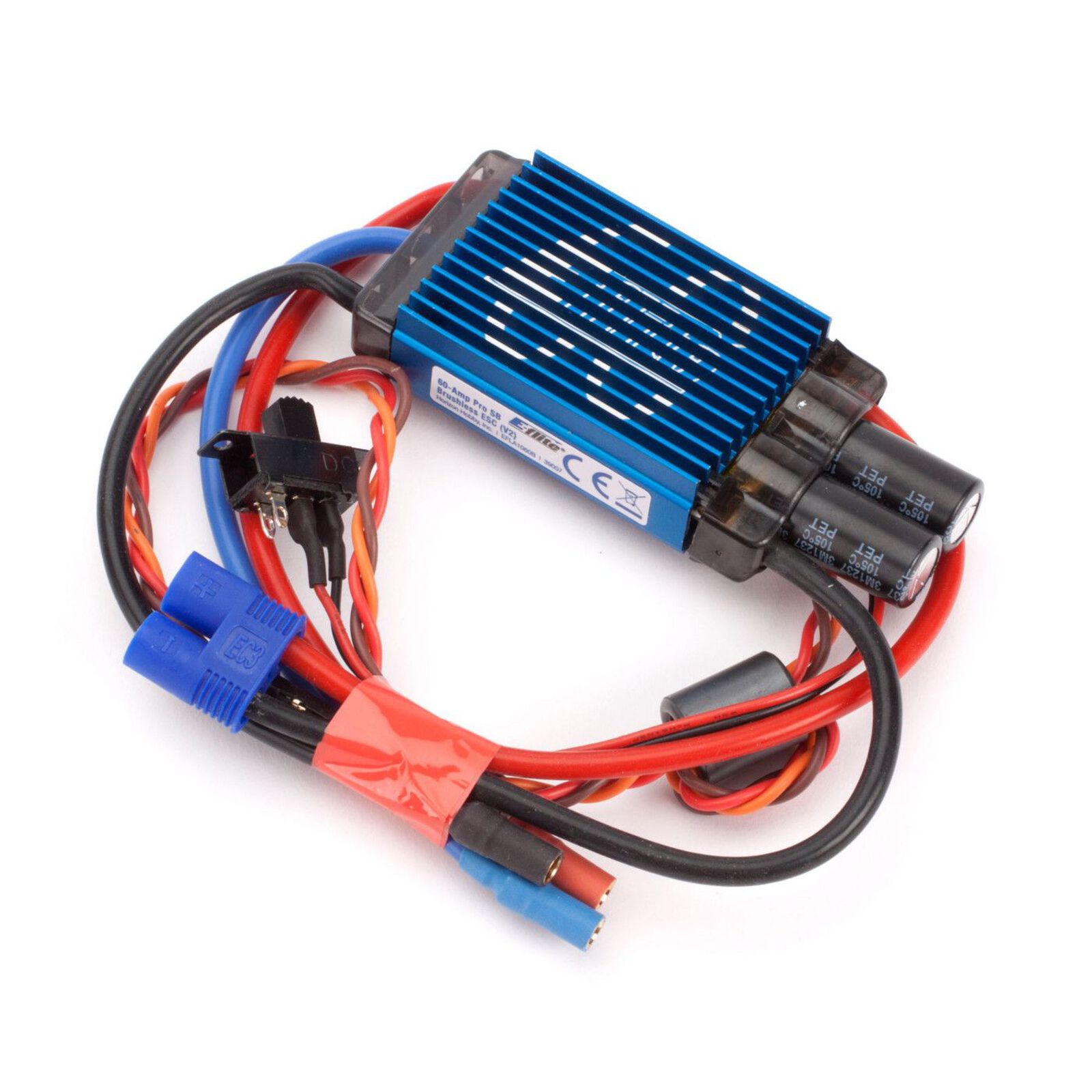

The E-flite® 60-Amp Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

If you are purchasing this ESC to replace the ESC in your Carbon-Z Cub SS (EFL12450/EFL12475) or the Carbon-Z Cessna 150 (ELF1450/EFL1475) you will need the DYNC0029 adapter

Product Specifications

Maximum Burst Current 15 sec @ 75A
Wire Gauge 13 AWG
Connector Type EC3
Amperage 40-60
Input Voltage 10.8V - 22.2V
Part Type Electronics
Output Connector 3.5mm Bullet
Brakes Yes - Programmable
Programmable Yes
