12KH 14-Channel T-FHSS S-FHSS Telemetry System

Item No. FUTK9281
Backorder
Brand Logo
4.7 out of 5 Customer Rating

12KH 14-Channel T-FHSS S-FHSS Telemetry System

Item No. FUTK9281
$429.99
Free financing available through Easy Pay Learn More
Next Shipment February 2021
Selected Store

Product Details

$

Precise performance for every pilot.

The 12K combines first-class performance with incredible versatility to create a system that’s easy to operate, yet feature-packed! Available in systems perfectly matched for airplanes, helis and gliders, the 12K is also compatible with multi-rotors, so pilots get the best of all worlds. Equipped with the rock-solid Futaba S-FHSS and T-FHSS protocols, the 12K is compatible with almost a dozen different Futaba receivers to suit modelers' needs. The 12K can transmit and receive telemetry data via the T-FHSS protocol. Simply install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. These sensors allow pilots to keep track of battery voltage, altitude, speed and other key flight functions. In addition to telemetry, the 12K can be used with S.Bus 2 gear to add multiple servos, gyros and more to set-ups with fewer cables. Pilots with non-telemetry set-ups can take advantage of the interference-free S-FHSS protocol. A large, backlit LCD screen, expandable 30-model memory, a 6V 1800mAh NiMH battery and charger are just a few more of the features the 12K has to offer. The R3008SB telemetry receiver is included.

Features:
  • Channels: 14 (12 proportional, 2 switched)
  • Compatible with T-FHSS and S-FHSS protocols
  • Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four digital trims and two push buttons for quick, easy access
  • Headphone plug, trainer port and S.Bus plug-in
  • S.Bus 2 system allows multiple servos, gyros and telemetry sensors with a minimum number of cables
  • Model types: six types of main wing with three tail types for airplanes, six swash types for helis and multi-rotor functions
  • Improved stick feel with adjustable lengths and tension
  • Dual rates/exponential
  • Included 6V 1800mAh NiMH battery and charger
  • Large, backlit LCD screen with adjustable contrast for easier reading. Push/dial operation simplifies set-up
  • Micro memory card slot for storing model information and free system updates. (SD-32MB to 2GB; SDHC-4GB to 32GB, not included)
  • Vibration feature alerts pilots to various alarms and timers, in addition to sound
  • 10-character model naming
  • Expandable 30-model memory
  • 5 flight conditions (Helicopter and Glider model selections)
  • 5 customizable programmable mixes
  • Servo test and servo position display
  • Fuel mixing
  • Stick calibration
  • Servo speed
  • Logic switching
Airplane Features:
  • 6 wing types
  • 3 tail wing types
  • 5 flight modes
  • Pitch curve
  • Throttle curve
  • Throttle delay
  • Aileron differential
  • Flap setting
  • Aileron to camber flaps
  • Aileron to brake flaps
  • Aileron to rudder
  • Rudder to aileron
  • Camber mix
  • Elevator to camber
  • Camber flap to elevator
  • Butterfly function
  • Trim mix
  • Air brake
  • Gyro mix
  • V-Tail
  • Ailevator (dual elevator)
  • Winglet
  • Motor speed
  • Rudder to elevator
  • Snap roll
  • Multi-engine functionality
  • Airbrake
Heli Features:
  • Six swash types.
  • Pitch curve and pitch trim.
  • Throttle curve and throttle hover trim.
  • Throttle hold.
  • Swash ring.
  • Pitch to needle.
  • Pitch to rudder (revolution mixing).
  • Gyro mixing.
  • Governor mixing.
  • Timer settings.
  • Throttle percent timer.
Glider Features:
  • Glider-specific functions
  • Six wing types.
  • Three tail wing types.
Multirotor Features:
  • Throttle stick position warning.
  • Gyro sense.
  • Flight mode.
  • Throttle curve.
  • Throttle delay.
R3008SB Receiver Features
  • T-FHSS protocol
  • Dual Antenna Diversity
  • S.Bus/S.Bus 2 ports (S.Bus 2 port for bidirectional telemetry sensors)
  • 8-channel PWM conventional ports
  • High voltage
  • Battery fail-safe
  • External voltage port: 0-70V DC
  • Power requirement: 4.8-7.4V
  • Dimensions: 0.98 x 1.86 x 0.56 in (24.9 x 47.3 x 14.3 mm)
  • Weight: 0.36 oz (10.1 g)
Includes

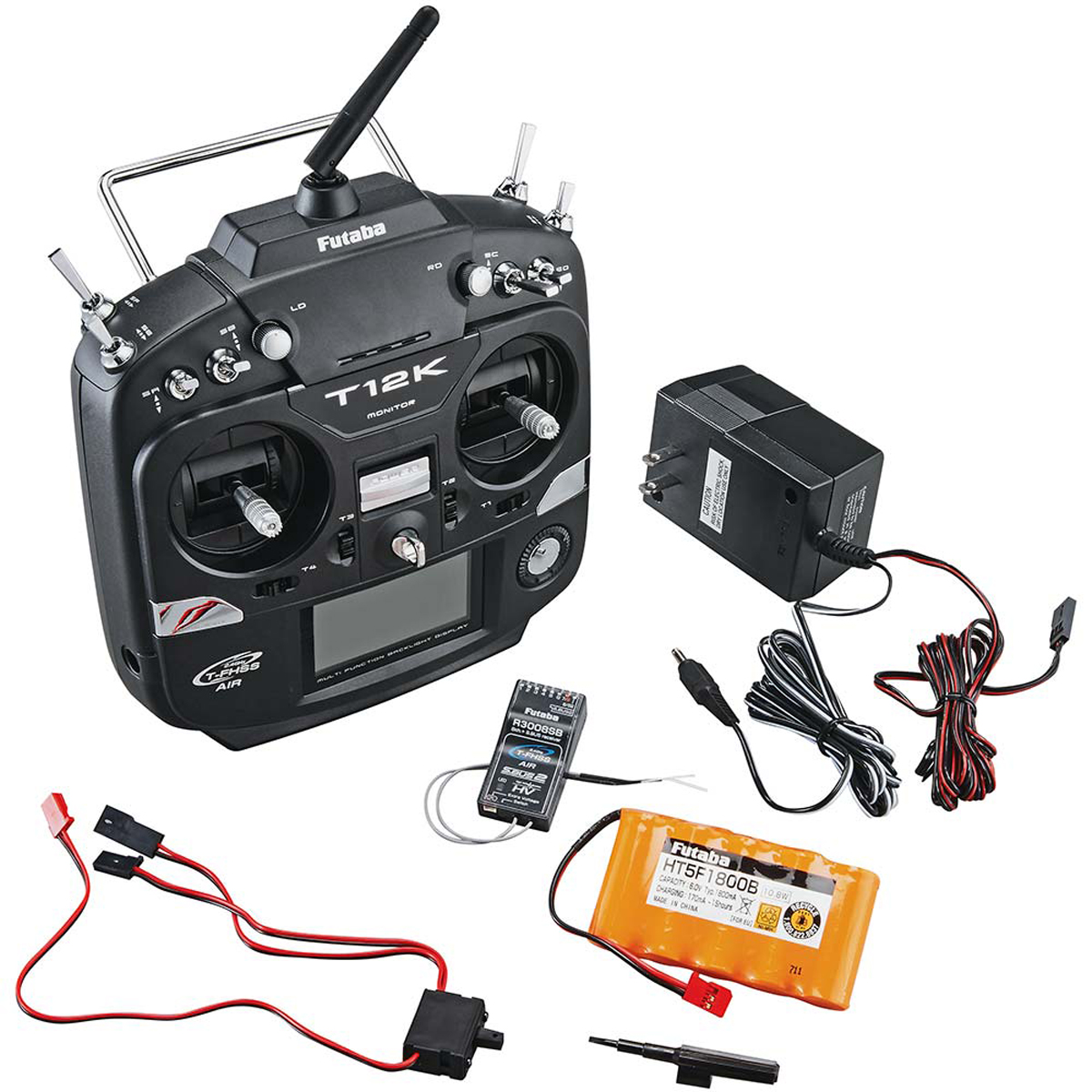

12K transmitter, 6V 1800mAh NiMH battery, charger and receiver R3008SB
