1/14 Mercedes-Benz Arocs 4151 8X4 Tipper Truck Kit

Item No. TAM56366
Brand Logo
3.3 out of 5 Customer Rating

1/14 Mercedes-Benz Arocs 4151 8X4 Tipper Truck Kit

Item No. TAM56366
$868.00
Earn points on this item
Select Options
Speedpack2 7.2V 1800mAh 6C NiMH, Flat Tamiya
TAM56366 DYNB2050
Speedpack2 7.2V 1800mAh 6C NiMH, Flat Tamiya
Back Order
$16.99
Speedpack2 7.2V 2400mAh 6C NiMH, Flat Tamiya
TAM56366 DYNB2060
Speedpack2 7.2V 2400mAh 6C NiMH, Flat Tamiya
Back Order
$20.99
Speedpack2 7.2V 3300mAh 6C NiMH, Flat Tamiya
TAM56366 DYNB2070
Speedpack2 7.2V 3300mAh 6C NiMH, Flat Tamiya
In Stock
$28.99
Speedpack2 7.2V 5100mAh 6C NiMH, Flat Tamiya
TAM56366 DYNB2090
Speedpack2 7.2V 5100mAh 6C NiMH, Flat Tamiya
In Stock
$45.99
7.2V 2200mAh, NiMH, Tamiya Plug
TAM56366 GEANM6S2200T
7.2V 2200mAh, NiMH, Tamiya Plug
In Stock
$19.99
7.2V 3000mAh, NiMH, Tamiya Plug
TAM56366 GEANM6S3000T
7.2V 3000mAh, NiMH, Tamiya Plug
In Stock
$25.99
7.2V 2000mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
TAM56366 ONXP5209
7.2V 2000mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
In Stock
$17.99
7.2V 3000mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
TAM56366 ONXP5311
7.2V 3000mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
In Stock
$22.99
7.2V 4200mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
TAM56366 ONXP5428
7.2V 4200mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
Back Order
$34.99
7.2V 5000mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
TAM56366 ONXP5510
7.2V 5000mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
Back Order
$40.99
0 Item Selected Items Selected
Reedy 324-S Compact Balance Charger
TAM56366 ASC27201
Reedy 324-S Compact Balance Charger
In Stock
$35.99
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
TAM56366 ASC27203
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
In Stock
$187.99
Prophet Sport Mini 50W Multichemistry Charger
TAM56366 DYNC2030
Prophet Sport Mini 50W Multichemistry Charger
In Stock
$34.99
Passport P2 100W AC/DC 2-Port Multicharger with Bluetooth Connectivity
TAM56366 DYNC3016
Passport P2 100W AC/DC 2-Port Multicharger with Bluetooth Connectivity
In Stock
$149.99
Imars III PRO 10A Smart Balance RC Battery Charger
TAM56366 GEA100WMPRO
Imars III PRO 10A Smart Balance RC Battery Charger
In Stock
$59.99
RDX1 Mini AC Charger
TAM56366 HRC44295
RDX1 Mini AC Charger
In Stock
$46.99
RDX2 Mini AC Balance Charger
TAM56366 HRC44299
RDX2 Mini AC Balance Charger
In Stock
$84.99
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
TAM56366 HRC44301
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
In Stock
$184.99
KX80 80W AC/DC Charger
TAM56366 ONXC4101
KX80 80W AC/DC Charger
In Stock
$59.99
S155 G2 1x55W AC Smart Charger
TAM56366 SPMXC2050
S155 G2 1x55W AC Smart Charger
In Stock
$59.99
0 Item Selected Items Selected
Reedy SC500X Brushed ESC
TAM56366 ASC27013
Reedy SC500X Brushed ESC
In Stock
$27.99
Reedy SC400X Brushed Crawler ESC: Element Enduro
TAM56366 ASC29199
Reedy SC400X Brushed Crawler ESC: Element Enduro
In Stock
$49.99
Waterproof AE-5L Brushed ESC with LED Port Light and IC3
TAM56366 DYNS2213
Waterproof AE-5L Brushed ESC with LED Port Light and IC3
In Stock
$54.99
1/10 - 1/8 QuicRun 880 80 Amp Dual Brushed ESC, 2-4S
TAM56366 HWI30120301
1/10 - 1/8 QuicRun 880 80 Amp Dual Brushed ESC, 2-4S
In Stock
$34.99
Firma 40A Brushed Waterproof ESC, 2S-3S: IC3
TAM56366 SPMXSE1040
Firma 40A Brushed Waterproof ESC, 2S-3S: IC3
In Stock
$39.99
BXR Waterproof Brushed Crawler ESC, 20T Limit
TAM56366 TEKTT1094
BXR Waterproof Brushed Crawler ESC, 20T Limit
In Stock
$69.99
0 Item Selected Items Selected
DXS Transmitter with AR410 Receiver
TAM56366 SPM1010
DXS Transmitter with AR410 Receiver
In Stock
$149.99
DX6e 6-Channel DSMX Transmitter with AR620
TAM56366 SPM6655
DX6e 6-Channel DSMX Transmitter with AR620
This item is currently not available
$279.99
NX6 6-Channel DSMX Transmitter with AR6610T Telemetry Receiver
TAM56366 SPM6775
NX6 6-Channel DSMX Transmitter with AR6610T Telemetry Receiver
In Stock
$419.99
NX8 8-Channel DSMX Transmitter with AR8020T Telemetry Receiver
TAM56366 SPM8200
NX8 8-Channel DSMX Transmitter with AR8020T Telemetry Receiver
Back Order
$479.99
Attack 4YWD 2.4GHz 4-channel Digital Proportional Radio Control System
TAM56366 TAM7255252
Attack 4YWD 2.4GHz 4-channel Digital Proportional Radio Control System
In Stock
$254.40
0 Item Selected Items Selected
HS-645MG High Torque Metal Gear Premium Sport Servo
TAM56366 HRC32645S
HS-645MG High Torque Metal Gear Premium Sport Servo
In Stock
$34.99
HS-5496MH Standard Digital HV Metal Gear Servo
TAM56366 HRC35496S
HS-5496MH Standard Digital HV Metal Gear Servo
In Stock
$39.99
HS-5565MH Standard Digital HV High Speed Metal Gear Servo
TAM56366 HRC35565S
HS-5565MH Standard Digital HV High Speed Metal Gear Servo
In Stock
$72.99
HS-5645MG Standard Digital High Torque Metal Gear Servo
TAM56366 HRC35645S
HS-5645MG Standard Digital High Torque Metal Gear Servo
In Stock
$45.99
D645MW Standard Digital High Torque Metal Gear Servo
TAM56366 HRC36645
D645MW Standard Digital High Torque Metal Gear Servo
In Stock
$43.99
D954SW Standard Digital High Torque Steel Gear Servo
TAM56366 HRC36954
D954SW Standard Digital High Torque Steel Gear Servo
Back Order
$99.99
0 Item Selected Items Selected
In Stock
Selected Store

Product Details

This is a highly accurate 1/14 scale radio control model that recreates the Mercedes-Benz Arocs dump truck in the 8x4 configuration. It features a highly realistic truck bed section behind the cab which can be operated by the radio transmitter, using the separately-sold Actuator Set!
Key Features
  • Roof Features A Depiction Of Light Pods On The Visor
  • New Battery Case Is Located Over The Second Axle
  • A Brand-New Truck Bed Section Comprised Of Metal Subframe For Superb Durability
  • Tough Ladder Frame With Aluminum Side Channels And Plastic Cross Members
  • Both Front Axles Are Steered Via A Single Servo
icon-box
In The Box
  • (1) 1/14 R/C Mercedes-Benz Arocs 4151 8X4WD Tipper Truck
icon-how-to
Needed to Complete
  • (1) 4+ Channel Radio System
  • (1) Brushed Electronic Speed Control
  • (1) 7.2v - 7.4v Battery
  • (1) Battery Charger
  • (2) Standard Steering Servos
1/14 Mercedes-Benz Arocs 4151 8X4 Tipper Truck Kit

MERCEDES BENZ AROCS

The Arocs 4151 form is recreated with an injection molded body, including depictions of cab rails, intake duct and other details. Separate parts recreate side mirrors and visor, etc.

The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction shock-dampers.

A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering.

A separately sold 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations. (Both sold separately).

Features

  • Both front axles are steered, via a single servo. Wheels turn realistically at slightly different angles
  • The Tamiya 4-axle chassis has a tough ladder frame with aluminum side channels and plastic cross member
  • Features a brand-new truck bed section comprised of metal subframe for superb durability
  • Install the separately sold Actuator Set for realistic truck bed motion
  • TR mighty-tuned motor (35T) provides twin rear axles with ample power to carry loads in the truck bed
  • The new battery case is located over the second axle, which allows access even when there are loads in the bed
  • The roof features a depiction of light pods on the visor, which can be fitted with LEDs for a realistic finish
  • 3-speed transmission can be controlled via a separately sold 4ch R/C transmitter
  • Metal leaf spring dampers with built-in coil springs provide durable suspension

Tamiya Mercedes Benz Arocs 4151 8x4 Tipper Truck



Truck Bed
New Truck Bed Section

Features a brand-new truck bed section comprised of metal subframe for superb durability.

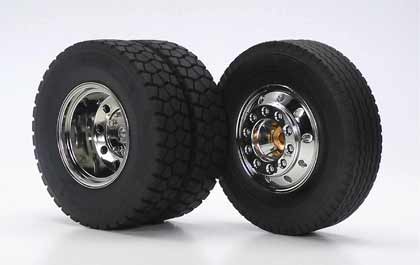

Wheels and Tires

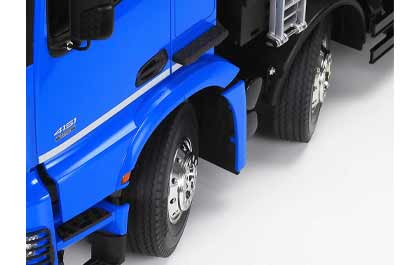

12 Sets of Wheels and Tires

The kit includes 12 sets of wheels and tires. Modeled after real construction equipment tires, these tires function like the real thing, providing maximum traction on the construction site.



Scale Details
Scale Details

The Arocs 4151 form is recreated with an injection molded body, including depictions of cab rails, intake duct and other details.

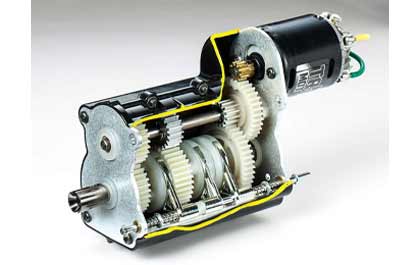

Motor and Transmission
Motor and Transmission

TR mighty-tuned motor (35T) provides twin rear axles with ample power to carry loads in the truck bed. 3-speed transmission can be controlled via a separately sold 4ch R/C transmitter.



Axles
Front Axles

Both front axles are steered, via a single servo. Wheels turn realistically at slightly different angles.



Product Specifications

Receiver Sold Separately
Battery Sold Separately
Motor Size 540-brushed type
Product Length 26.2598" (667 mm)
Suspension Leaf Spring
Final Drive Ratio Adjustable
Motor Type Brushed
Speed Control Sold Separately
Bushing Material Plastic
Charger Sold Separately
Differential Gear
Ball Bearings Metal and Plastic Bushings
Chassis Aluminum and ABS plastic
Completion Level Kit
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 10.5512" (268 mm)
Product Width 7.71654" (196 mm)
Radio Sold Separately
Body ABS Plastic
Scale 1/14
Power Type Electric
Servos Sold Separately
Vehicle Type Semi Truck
