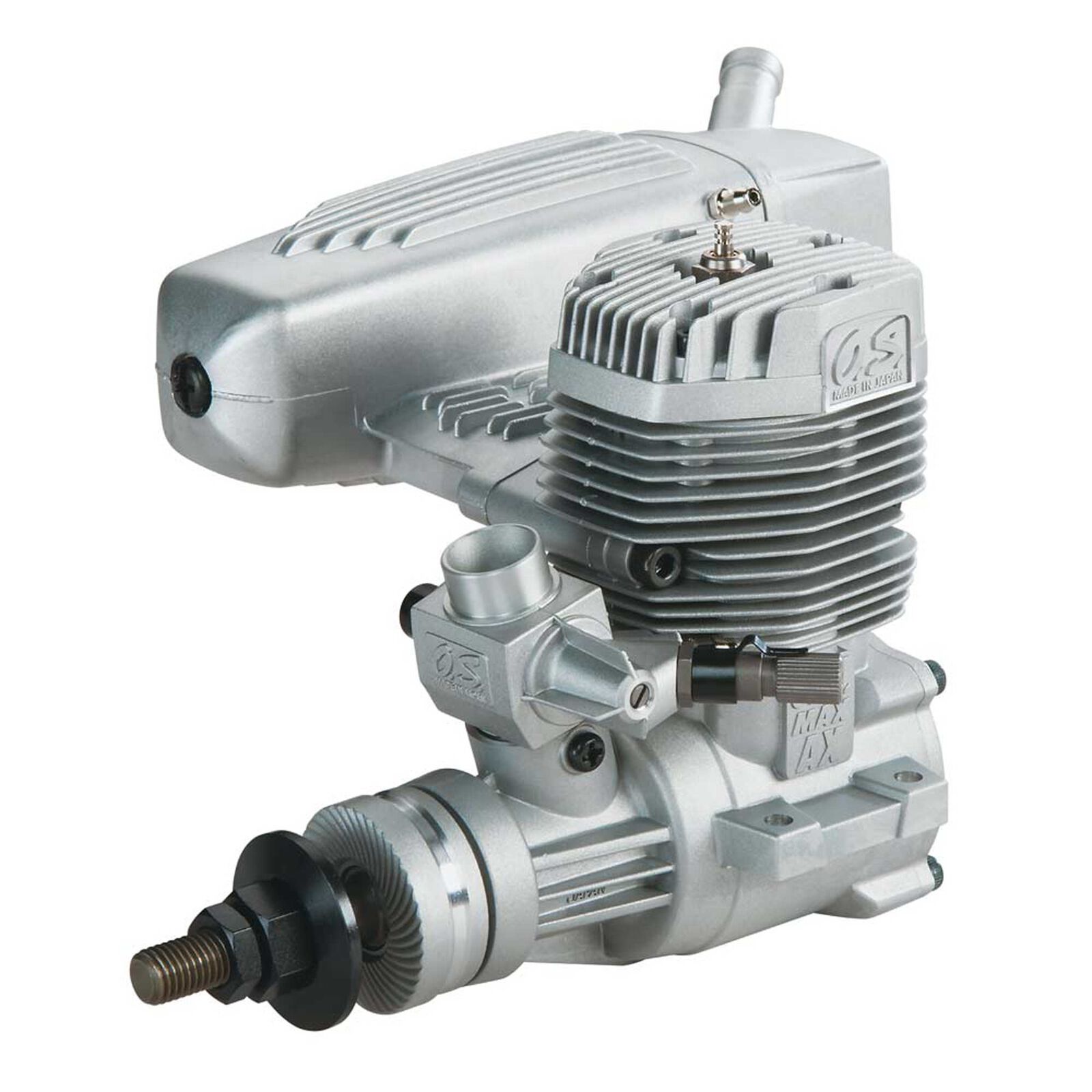

95AX Ringed .95 Airplane Glow Engine with Muffler

Item No. OSMG0580
95AX Ringed .95 Airplane Glow Engine with Muffler
Brand Logo
5 out of 5 Customer Rating

95AX Ringed .95 Airplane Glow Engine with Muffler

Item No. OSMG0580
$381.99
RC Club points earned on this item shown at checkout.
In Stock
Selected Store
The link to 95AX Ringed .95 Airplane Glow Engine with Muffler has been copied

Product Details

icon-box
In The Box
  • (1) O.S. Max 95 AX ABL Aircraft Engine with E4040 muffler
  • (1) Carburetor
  • (1) #8 glow plug
  • (1) Needle valve extension
  • (1) Product manual
icon-how-to
Needed to Complete
  • Aircraft blend fuel containing 5%-20% Nitromethane with at least 18% lubricant
  • Propeller: 14x8, 15x6-8, 16x6-8
  • Glow starter and field equipment
Quick Links
icon-pdf-download Manuals & Support

The power of a 95 — in the same size bolt pattern as the 75AX!

Introducing the 95AX Ringed from O.S. It’s the latest addition to the popular series that's famous for providing uncompromising power in tight-fitting applications – great for aerobats and large-scale models!


O.S. Engines two year limited warranty
  • A high-performance engine that's ideal for aerobats and large-scale models
  • Generous thread on the extra-long, balanced crankshaft means more secure prop attachment
  • The included E-4040 Power Box muffler dampens noise while boosting power

Product Specifications

Displacement 0.949 cu in (15.55 cc)
Oil Type & Content At least 18% synthetic lubricant
Product Height 4.1" (103.3mm) bottom of crankcase to top of cylinder head
Prop Range 14x8 x 16x6-8
RPM Range 2,000 - 11,000 RPM
Crankshaft Threads UNF5/16-24
Muffler Weight 6.28 oz (178g)
Cylinders Single
Product Width 2.4" (61mm) at mounting tabs
Product Length 3.7" (94.5mm) from back plate to front of drive hub
Engine (Only) Weight 20 oz (567 g)
Muffler Type 2-piece aluminum
Bore 1.091" (27.7mm)
Crankshaft Type Threaded
Power Type Glow
Plug Type O.S. #8
Stroke 1.083" (27.5mm)
