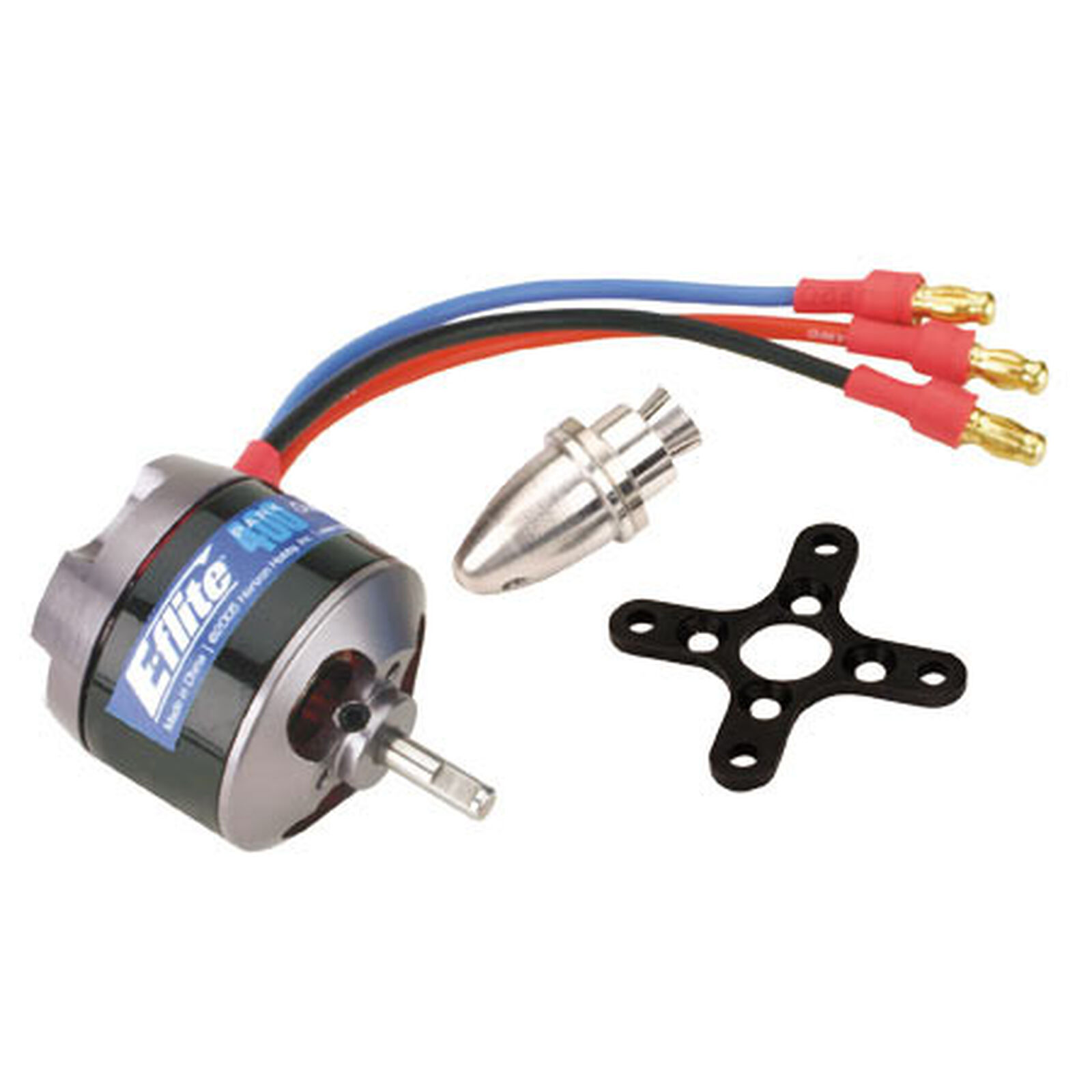

Park 400 Brushless Outrunner Motor, 740Kv: 3.5mm Bullet
Item No.
EFLM1300

Park 400 Brushless Outrunner Motor, 740Kv: 3.5mm Bullet
Item No.
EFLM1300
$44.99
Price reduced from
$54.99
to
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
Selected Store
You will earn points on this purchase
Product Details
Quick Links
Manuals & SupportKey Features
- Slotted 12-pole outrunner design
- Prop adapter (EFLM1923) and gold-plated connectors included
- Excellent motor for small 3D and scale park flyers weighing 10–20 oz (280–560 g)
- Motor mount included
- Replacement for Speed 370 and Speed 400 applications
- Quiet operation\low noise compared to gearbox systems
Needed To Complete
10–20A brushless ESC
10x7 to 12x3.8 prop
7.4V or 11.1V 860–1320mAh Li-Po
Overview
The great performance and small size of this engine makes it perfect for small 3D and other park flyer models. The external rotor design eliminates the need for a gearbox, saving you valuable weight to get the maximum performance out of the model.
Product Specifications
Specs
Cells | 6–10 Ni-Cd/Ni-MH or 2–3 Li-Po |
Bushing Or Bearing | Bearing |
Recommended Prop Range | 10x4.7-12x3.8 |
Resistance | .26 ohms |
RPM/Volt (Kv) | 740 (rpms per volt) |
Shaft Diameter | 1/8 in (3.17mm) |
Voltage | 7.2–12 |
Idle Current (Io) | .55 @ 10V (no load current) |
Connector Type | 3.5mm Bullet |
Motor Type | Brushless |
Motor Design | Outrunner |
