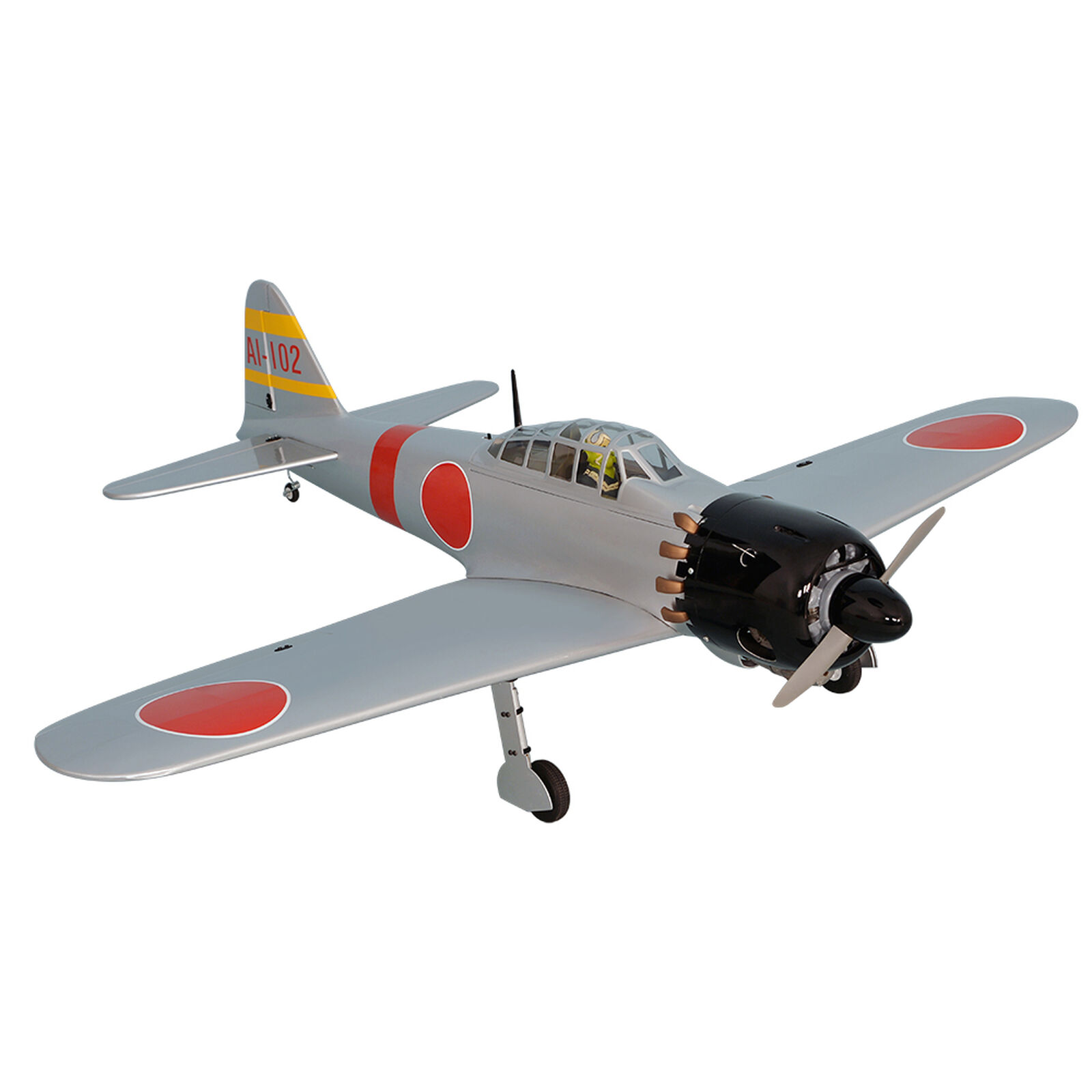

ZERO A6M EP/GP .46-.55 ARF 55"

Item No. PMMA1865
ZERO A6M EP/GP .46-.55 ARF 55"
Brand Logo
4.2 out of 5 Customer Rating

ZERO A6M EP/GP .46-.55 ARF 55"

Item No. PMMA1865
$269.99
RC Club points earned on this item shown at checkout.
In Stock
Selected Store
The link to ZERO A6M EP/GP .46-.55 ARF 55" has been copied

Product Details

Quick Links
icon-pdf-download Manuals & Support

Key Features

  • Construction: Balsa and ply
  • Covering: Factory applied Silver, Ferrari Red and Cub Yellow Oracover
  • Cowl: Painted fiberglass
  • Hatch: Removable for access to battery and radio equipment
  • Canopy: Clear with painted-on frame lines and painted pilot bust
  • Retracts: Mechanical with suspension struts
  • Spinner: 2.5 (65mm) diameter black plastic
  • Motor Mount: Plywood
  • Engine Mount: Composite plastic

Overview

When introduced by the Imperial Japanese Navy early in WWII, the Mitsubishi A6M Zero was considered the most capable carrier-based fighter in the world. It offered long range and astonishing maneuverability. By 1944, however, opposing Allied fighters consistently exceeded its firepower, armor, and speed. This Phoenix Model aircraft for intermediate-level hobbyists features an impressive scale outline enhanced by a lightweight fiberglass cowl. Fly with your choice of glow, gasoline, or brushless electric power.

Needed to Complete
  • Transmitter & Receiver: 6-channel
  • Servos: Four high speed, high torque, one retract, one standard torque and speed if using glow engine
  • For Electric Operation:
    • Brushless Motor: Electrifly Rimfire .32 recommended
    • Electronic Speed Control: 45A if using motor listed above
    • Propeller: 12x6 - 13x8E if using motor listed above
    • LiPo Battery: 4S 14.8V
    • Battery Charger and Charging Bag
  • For Glow Operation:
    • Engine: .46 - .52 cu in
    • Propeller: Compatible with selected engine
    • Glow Starter, Fuel, Fuel Tubing, Fuel Pump and Servo for Throttle
What's in the box?
  • Phoenix Model Zero A6M GPEP .46-.55 ARF Scale Warbird II
  • Retracts
  • Engine and Motor Mounts
  • Hardware
  • Spinner
  • Decals
  • Product Manual

Product Specifications

Airfoil Shape NACA
Charger Sold Separately
Completion Level Almost Ready-To-Fly
Engine Size .46-.55 / 2-stroke or .52/4-stroke glow engine (not included)
Minimum Required Radio 6-channel
Motor Size Brushless outrunner 850 W, 800 KV (not included)
Product Length 47.3 in (1200mm)
Recommended Motor Battery 4S LiPo 4500 - 5000mAh
Retracts Yes
Servos Sold separately 2-aileron, 1-elevator, 1-rudder, 1-retract servo, 1-throttle (for glow engine)
Skill Level Level 3
Spinner Size 2.5" (65mm) diameter black plastic
Transmitter Range Full range (transmitter sold separately)
Trim Scheme Colors Silver, Ferrari Red and Cub Yellow Oracover
Wing Area 570sq in (36.8sq dm)
Wing Loading 25.56 oz/sq in (78g/sq dm)
Wingspan 55 in (1400mm)
