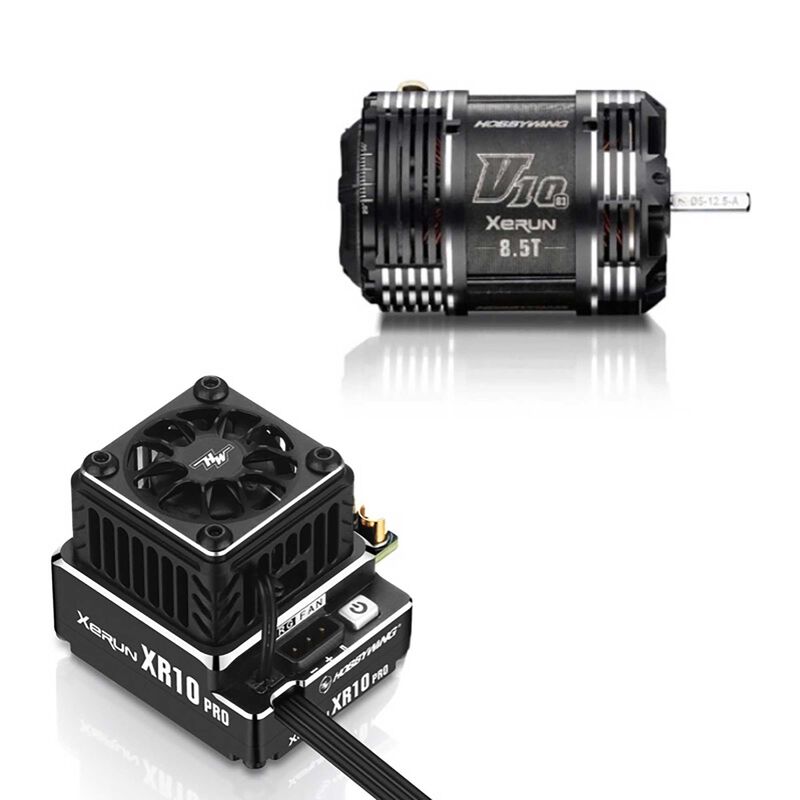

XERUN XR10 Pro G2S Brushless ESC/V10 G3 Motor 8.5T Combo

Item No. HWI38020333
Discontinued
Brand Logo
5 out of 5 Customer Rating

XERUN XR10 Pro G2S Brushless ESC/V10 G3 Motor 8.5T Combo

Item No. HWI38020333
This Item is No Longer Available
Selected Store

Product Details

Key Features
  • Dual Sensor Port Design for Easy Wiring
  • Low Internal Resistance, High Efficiency
  • Excellent Heat Dissipation
  • High-Precision Endbell Plate
  • Easy to Disassemble, Clean and Maintain
icon-box
In The Box
  • (1) 8.5T V10 G3 Motor
  • (1) XERUN XR10 Pro G2S Brushless ESC
32 Bit, M4 Microprocessor

Ultra high performance 32bit M4 microprocessor usage ensures that the ESC is able to deal with anything that even the fastest racers may need. This makes the ESC more precise and have the needed ultra fast response needed to showcase the hardware and talents of the racer.



Precisely Adjust Throttle and Brake PWM

PWM frequencies are a crucial tuning tool. With the custom frequency settings, tuners can now adjust from 1K - 32K PWM for Throttle and 0.5-16K for Brakes. This allows ultra fine-tuning of throttle and brakes to suit any driver or track condition.



Dual Sensor Port Design for Easy Wiring

The dual output socket at the rear of the motor is designed to meet various wiring needs. The customized dust plug is provided to prevent the unused socket from having dirt entering.



Ultra-Large Output Power

The motor is greatly optimized. The stator is redesigned for higher efficiency and is equipped with an ultra-high grade custom magnetic ring rotor to provide maximum torque output and an increase in output power by 5%.



High-Precision Endbell Plate

The motor is equipped with a high-precision endbell plate. It uses high quality structural components to greatly improve the consistency and structural stability of the power output at all times.



Easy to Disassemble, Clean and Maintain

The motor adopts modular structural design, which is convenient for daily maintenance. This effectively prolongs the service life of the motor and maintains the efficiency of the motor.



High Quality Material and Advanced Design in the Industry

The outlet terminals adopt custom-widened, U-shaped, gold-plated, curved copper strips with extremely low internal resistance, and increase the gap between the copper strips, which makes it easy to weld. Large open hole structure at the rear of the motor provides excellent heat dissipation effect for endplate components. The use of high-performance and high-quality stator, high temperature resistant wire(200°C), high temperature resistant explosion-proof rotor(180°C), international grade bearings.



Product Specifications

Adjustable Timing Yes
Auto Cutoff Yes
BEC Yes
Forward Yes
Input Voltage 2S
Manufacturer # 38020333
Number of Poles 2
Outer Diameter 1.41" (36 mm)
Overload Protection Yes
Product Length 2.024" (51 mm)
Product Weight 149g
Programmable Yes
Resistance 0.021O
Reverse Yes
Shaft Diameter 0.125" (3 mm)
Shaft Length 0.547" (14 mm)
