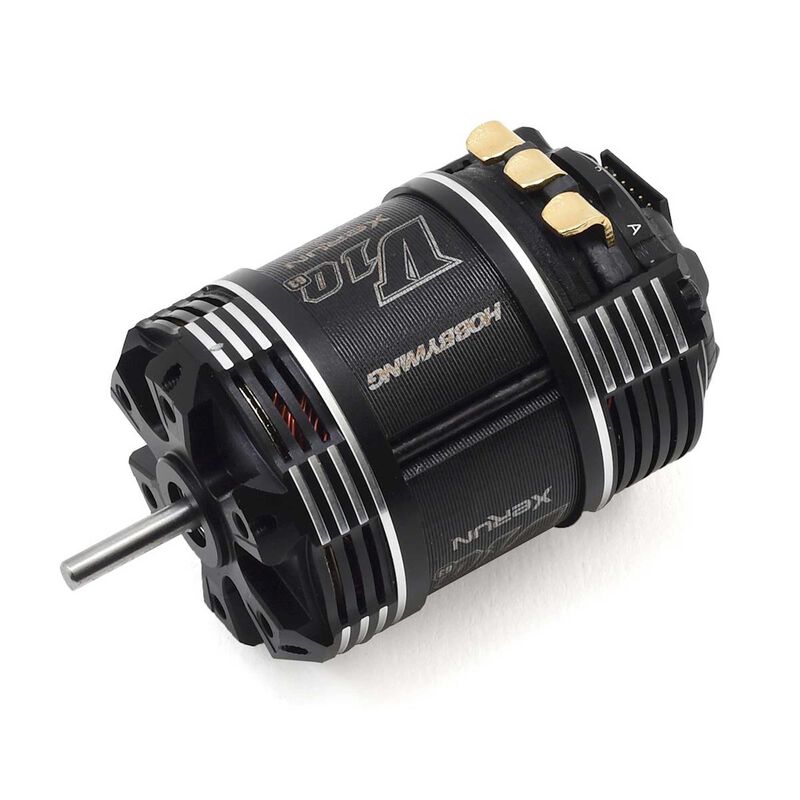

XeRun V10 G3 6.5T Modified Brushless Motor

Item No. HWI30401109
Brand Logo
4.5 out of 5 Customer Rating

XeRun V10 G3 6.5T Modified Brushless Motor

Item No. HWI30401109
$99.99
Earn points on this item
Select Options
TrakPower Rosin Core Silver Solder 100g
HWI30401109 DTXR0976
TrakPower Rosin Core Silver Solder 100g
Back Order
$34.99
TrakPower TK60 60W Soldering Iron
HWI30401109 DTXR1000
TrakPower TK60 60W Soldering Iron
In Stock
$16.99
Pro Connector Soldering Jig
HWI30401109 HRASD488P
Pro Connector Soldering Jig
In Stock
$28.88
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

DESIGN matters. It’s a motor specially designed for Extremely High-Level Racing. The RMP of G3 Stock motor is significantly improved, the KV & torque are improved by 16% and 4% respectively, compared with the V10 G2 Stock motor.

Features

  • Lightweight. The G3 Modified & Stock motors only weigh 161g & 132g respectively, the weights are reduced by 11% & 21% when compared with the previous generation G2 motors.
  • The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
  • The mechanical timing can be adjusted finely and smoothly; the skid-proof lines on the rear end plate of the motor guarantee the stability of the timing after adjustment. For G3 Stock motors (10.5T~25.5T), the timing is adjustable from 30 degrees to 60 degrees; for Modified motors (3.5T~8.5T), the timing is adjustable from 20 degrees to 50 degrees.
  • The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.
  • The special shell design which makes the stator core expose to the air maximizes cooling. Big holes on the end plates of 10.5T~21.5T motors further help reduce heat; small holes on the end plates of 5.5T~8.5T motors effectively keep sand or dirt from getting inside and damaging the motor(s).
  • The use of high-performance stator core, heat(200℃)-resistant wire, heat(200℃)-resistant rotor with strong structure, imported high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
  • It’s compliant with IFMAR, ROAR, EFRA, BRCA rules, and certificated by RoHS, CE, FCC

Product Specifications

Input Voltage 2S
Recommended Speed Control Hobbywing XR10 PRO or XR10 Stock SPEC (1S & 2S)
RPM/Volt (Kv) 5120Kv
Shaft Length 0.52" (13 mm)
Motor Design Inrunner
Turns 6.5T
Outer Diameter 1.4" (36 mm)
Bushing Or Bearing Bearing
Product Length 2.01" (51 mm)
Adjustable Timing Yes
Application Modified class of 1/10 scale 4WD off-road racing
Number of Poles 2
Product Weight 5.78oz (164g)
Resistance 0.0056ohms
Shaft Diameter 0.125" (3 mm)
Maximum Burst Current 113A, 402W
Motor Type Brushless - Sensored
