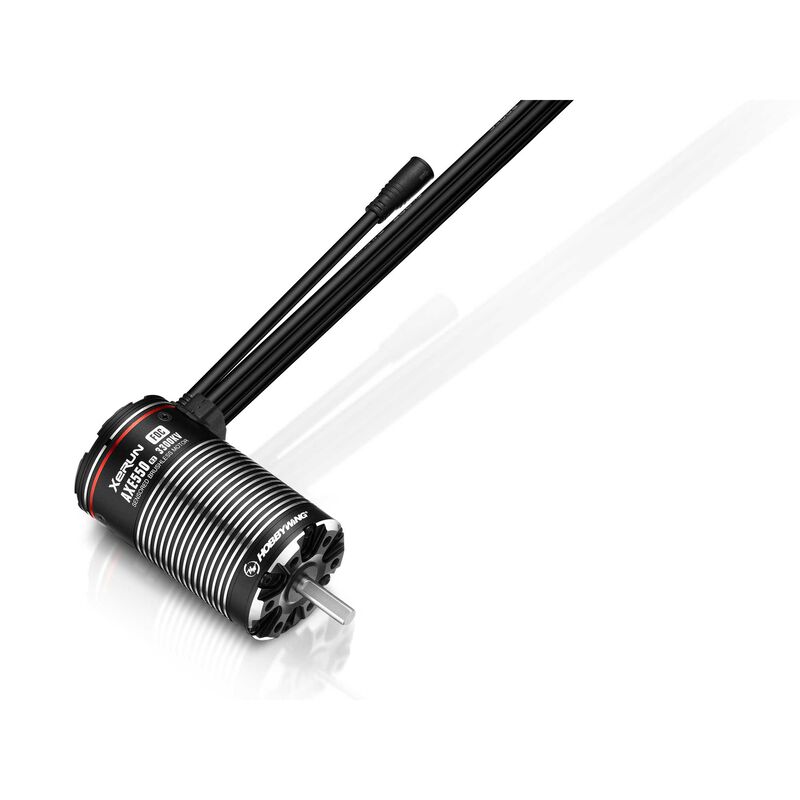

XeRun AXE-FOC R2 Sensored Brushless Motor, 550-3300KV

Item No. HWI30401256
Sale
Brand Logo
4.8 out of 5 Customer Rating

XeRun AXE-FOC R2 Sensored Brushless Motor, 550-3300KV

Item No. HWI30401256
$134.99 Price reduced from $149.99 to
Hobbywing Sale! Ends 11/29.
Free financing available through Easy Pay
Earn points on this item
In Stock
Selected Store

Product Details

Key Features
  • For 1/10 Scale Rock Crawlers
  • 4 Pole and 12 Magnet Design for Zero Cogging Effect and Torque Ripple
  • Waterproof and Dust Proof
  • New Sensor Harness Design with Silicone O-Ring Seal
In The Box
  • XeRun AXE-FOC R2 Sensored Brushless Motor, 550-3300Kv

Overview

This Hobbywing XeRun AXE R2 FOC Brushless Motor is part of the world's first FOC brushless system for Rock Crawlers. FOC (Field-Oriented Control) guarantees rock crawler drivers Super Linearity, High Torque & Extreme Silence. Chip-type magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs pure and precise signals indicating the rotor position. 4 pole and 12 magnet design featuring Hobbywing’s “staggered pole” patent has zero cogging effect & torque ripple. The system works smoothly for high degree of control of rock crawlers at low speeds. The new sensor harness features a silicone O-ring inside. The new design & O-ring not only provide a firm connection between motor and ESC but solve the “waterproof” challenge for sensor ports. IMPORTANT, The Xerun AXE series is a closed-system: Due to its advanced technology, HOBBYWING XeRun AXE R2 Motor works only with XeRun AXE R2 ESC.

Features

  • For 1/10 scale Rock Crawlers
  • Waterproof and dust-proof design
  • 4 pole and 12 magnet design featuring Hobbywing’s “staggered pole” patent has zero cogging effect & torque ripple
  • Silicone O-ring in sensor harness provides a strong waterproof connection
  • HOBBYWING XeRun AXE R2 Motor works only with the XeRun AXE R2 ESC

Product Specifications

Adjustable Timing Yes
Application 1/10 and 1/8 scale rock crawling
Bushing Or Bearing Bearing
Idle Current (Io) 4.7A
Input Voltage 7.4 - 11.1V (2 - 3S LiPo)
Number of Poles 4
Outer Diameter 1.42" (36 mm)
Product Length 2.51" (64 mm)
Product Weight 8.7oz (247g)
Recommended Speed Control Only compatible with XeRun AXE R2 ESC
Reverse Yes
RPM/Volt (Kv) 3300
Shaft Diameter 0.196" (5 mm)
Shaft Length 0.63" (16 mm)
Water-Resistant Yes
