XERUN AXE 4274SD Motor, 2000KV

Item No. HWI30401400
XERUN AXE 4274SD Motor, 2000KV
XERUN AXE 4274SD Motor, 2000KV
XERUN AXE 4274SD Motor, 2000KV
XERUN AXE 4274SD Motor, 2000KV
Brand Logo
4.9 out of 5 Customer Rating

XERUN AXE 4274SD Motor, 2000KV

Item No. HWI30401400
$129.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
The link to XERUN AXE 4274SD Motor, 2000KV has been copied

Product Details

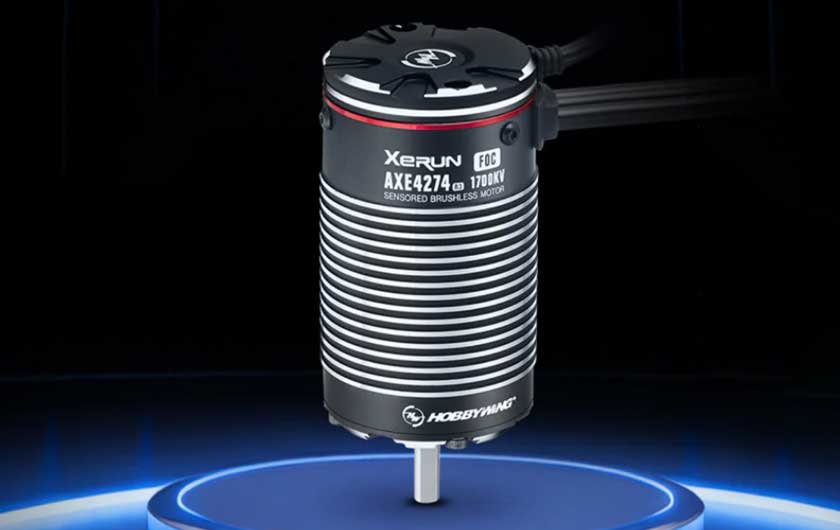

Introducing the revolutionary XeRun AXE motor, engineered for high-performance crawlers. Unleash the full potential of your vehicle with compatibility for up to 6S LiPo battery power.
Key Features
  • Pair with XeRun AXE R3 ESC or newer model
  • 6S high power, for 1/8 or larger scale crawlers
  • 2 KV options, wide applications
  • Precision Magnetic sensor
  • IP67 protected
icon-box
In The Box
  • (1) XERUN AXE 4274SD Motor

Features

  • Elevate your crawler's capabilities with support for up to 6S LiPo battery, delivering a remarkable 106% increase in maximum output power and 11% greater efficiency compared to its predecessor, the R2 motor.
  • Choose between 1700KV and 2000KV options of the AXE 4274 motor, catering to diverse application requirements across 1/8th, 1/7th, and 1/6th scale crawlers.
  • Equipped with IP67 protection, the AXE R3 motor features a proven HOBBYWING waterproof sensor harness design, ensuring reliability in complex and varied climatic conditions.
  • Built-in with a precision magnetic encoding sensor, offering 60 times greater accuracy than traditional sensors commonly used in brushless motors. Enjoy consistent three-phase signals and precise rotor position feedback.
  • The XeRun AXE R3 motor boasts 4 sets of 25.4mm mounting holes and 4 for M3/M4 respectively. For frames with 30mm mounting holes, an optional motor mounting conversion plate is available for purchase, ensuring compatibility with a wide range of setups.
  • Crafted with high-quality aluminum CNC shell, top-tier brand bearings, ultra-thin silicon steel sheets, 200°C high-temperature-resistant enameled wire, and a high-toughness alloy output shaft. Hobbywing is dedicated to delivering exceptional performance to users worldwide. Elevate your crawler's performance to new heights with the XeRun AXE R3 motor.
6S Power
6S Power

The XeRun AXE R3 motor supports up to 6S LiPo. Compared to the R2 motor, the maximum output power is increased by 106% and is 11% more efficient.

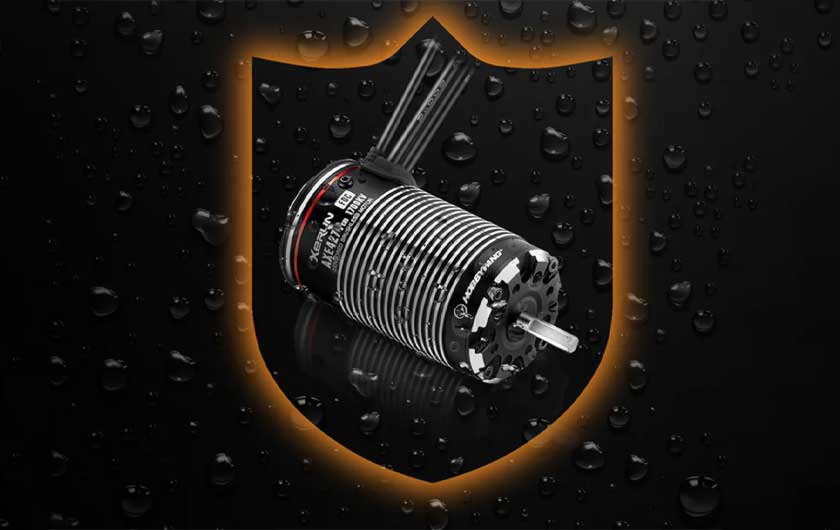

IP67 Waterproof
IP67 Waterproof

The IP67 protected AXE 4274 FOC motor features the proven Hobbywing waterproof sensor harness design to handle diverse climatic conditions.

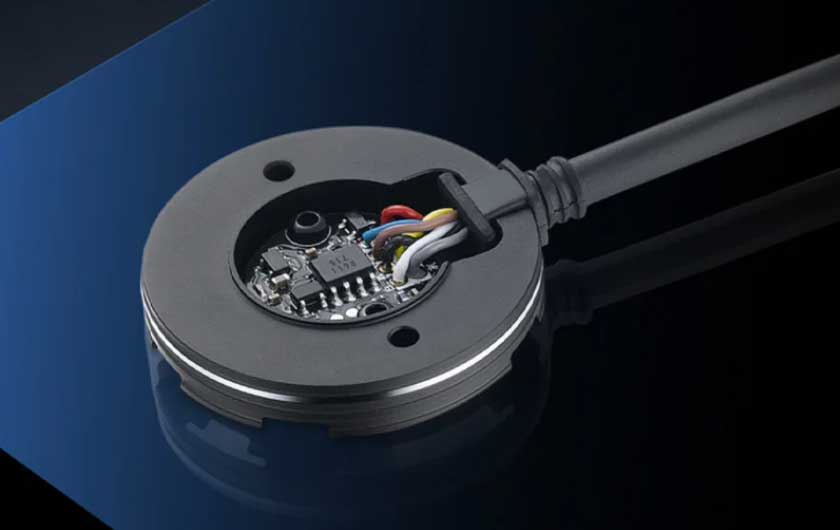

Precision Magnetic Sensor
Precision Magnetic Sensor

The motor has a built-in magnetic encoding sensor. The accuracy is 60 times better compared to the traditional sensor commonly used in brushless motors. The three-phase signal has excellent consistency and it provides accurate signals from the rotor position.

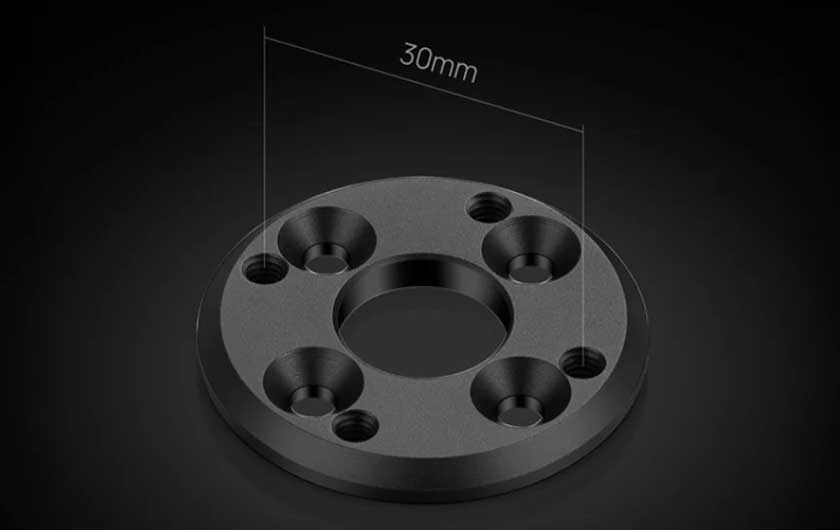

Supports Optional Motor Adapter
Supports Optional Motor Adapter

The XeRun AXE R3 motor is built-in with four sets of 25.4mm mounting holes, and four for M3/ M4 respectively. If the frame mounting holes are 30mm, and optional motor mounting conversion plate is available for purchase.

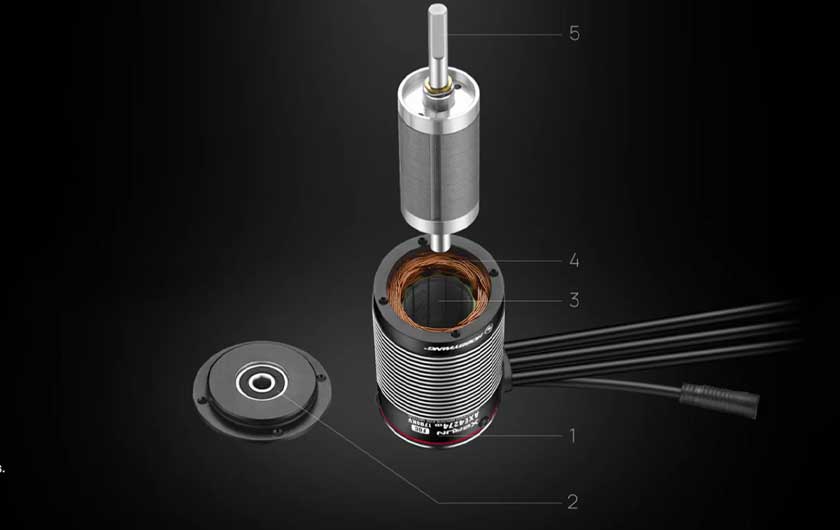

Premium Materials
Premium Materials

High quality aluminum shell, premium bearings, ultra-thin silicon steel sheets, high-temperature resistant enameled wire, and high-torque alloy output shaft.

Product Specifications

Application 1/8th & 1/6th Scale Crawlers
Idle Current (Io) 4.5A
Input Voltage 4S - 6S
Manufacturer # 30401400
Motor Type Brushless
Number of Poles 4
Outer Diameter 1.65" (42 mm)
Product Length 2.91" (74 mm)
Product Weight 14.63 oz (415g)
RPM/Volt (Kv) 2000Kv
Shaft Diameter 0.197" (5 mm)
Shaft Length 0.73" (19 mm)
