Product Details

The Vanquish Products VRD Carbon Kit is Vanquish's very first competition level platform brought to life by some of the industry's most experienced designers in the RC rock crawling segment.
Key Features
  • Lightweight Spec VFD Transmission
  • Brass Weight Tubes In Axles
  • Front Axle Overdrive Portal Gears
  • Hard Anodized Shock Bodies
  • Incision Pro M4 Rod Ends
icon-box
In The Box
  • (1) 1/10 VRD Carbon Kit
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 540-Size Motor
  • (1) Electronic Speed Control
  • (1) 7.2V - 11.1V Battery
  • (1) Battery Charger
  • (4) Wheels and Tires
  • (1) 322mm (12.67”) Wheelbase Body

Introduction

Utilizing an all new Lightweight Spec VFD Transmission and updated F10 competition inspired portal axles the VRD Carbon Kit is a highly competitive, predictable and versatile platform. The heart of the VRD Carbon Kit is a matte finish 3mm thick pair of carbon fiber frame rails mated to the 6 degree flat skid plate. The molded chassis components and skid plate place the lightweight spec VFD transmission as low as possible into the VRD chassis. For the first time the front F10 Portal axle is equipped with a servo on axle and 4-link. Front and rear axles include weighted brass tube inserts in addition to the front alloy knuckle weights to keep the center of gravity as low as possible, translating to a high performance driving experience.

Features

  • Lightweight Spec VFD Transmission
  • 3mm Matte Carbon Fiber Frame Rails - 6 degree flat skid plate
  • 37% Overdrive
  • F10 Portal Axles
  • Brass weight tubes in axles
  • Alloy heavy portal knuckle weights
  • Front Axle Overdrive Portal gears
  • Rear Axle Standard Portal Gears
  • Lightweight Machined Chromoly VFD Transmission Gears
  • Machined Spool, Ring Gear, Pinion gear in axles
  • Chromoly Universal axle shafts
  • Hard Anodized Shock Bodies
  • Stainless Steel Links with HD Bent rear links
  • Incision Pro M4 Rod Ends
  • Stamped Aluminum Rock Sliders
  • Adjustable multi point body mounting system

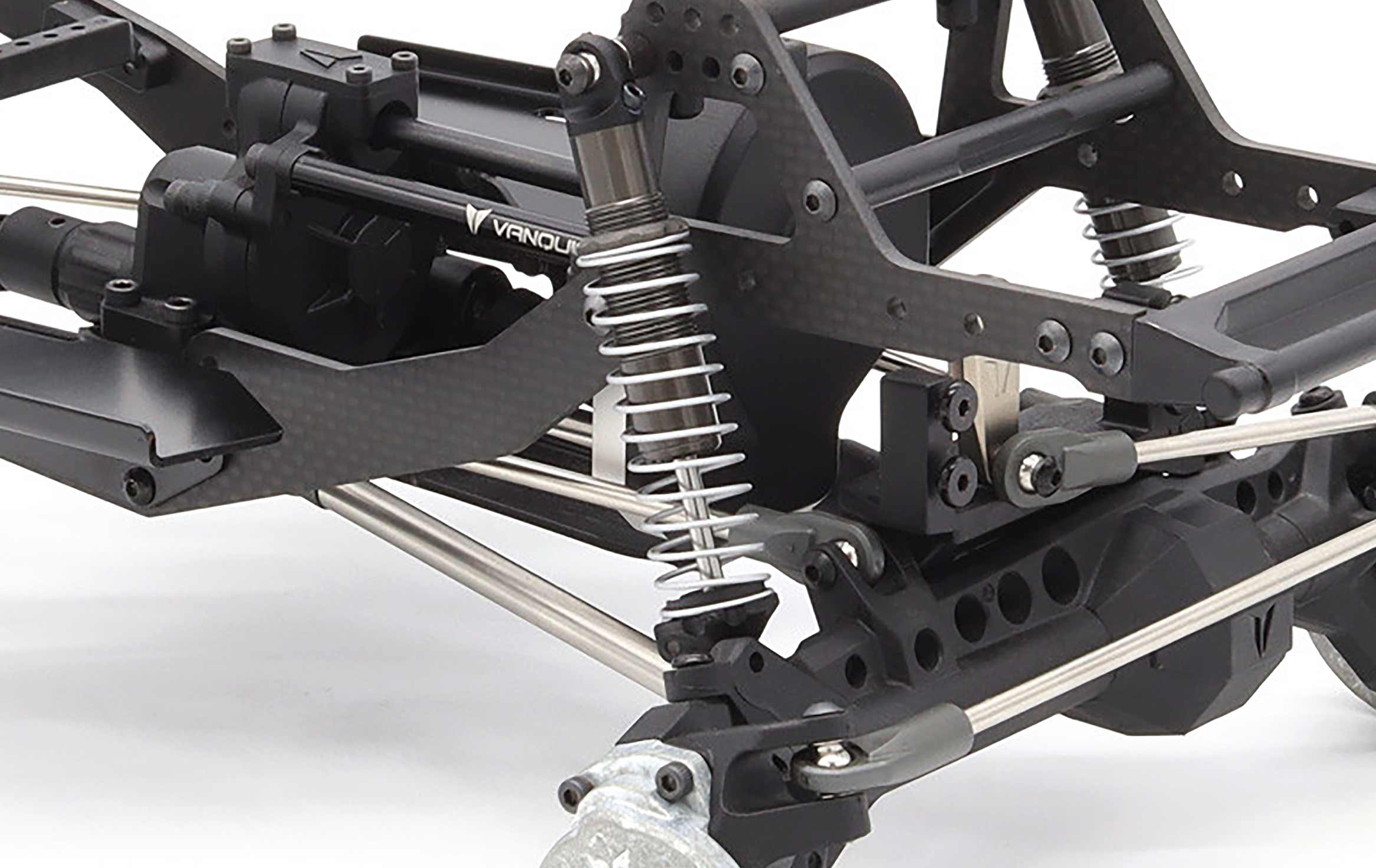

Chassis
Chassis

The Vanquish Products VRD Carbon chassis is equipped with all new molded chassis components that provide a tunable platform to adapt to the most demanding terrain. Multiple shock and body mounting positions combined with minimalistic front/rear interchangeable bumpers make body mounting and fitment straight forward. Stamped aluminum rock sliders provide a flat location for electronics and/or battery mounting and are able to support and protect your body.



Drivetrain
Drivetrain

The center of the VRD Carbon Kit is the new lightweight spec VFD transmission. Equipped with a lightweight machined aluminum motor plate, aluminum motor plate standoffs, while omitting the cosmetic VFD tunnel for a high performance appearance. Internally the VFD is equipped with machined aluminum bearing plates and machined lightweight chromoly gears. Each internal gear has been re-designed to be as lightweight as possible dropping the weight of the overall transmission but maintaining a high level of durability. The T-Case has a built in 21% overdrive.



Suspension
Suspension

The VRD Carbon Kit includes the Incision S8E shocks with hard anodized shock bodies and multiple length tuning rod ends for a final length range of 85-95mm. Heavy duty stainless steel lower suspension links and lightweight upper links connect the chassis to the axles with the new Incision Pro M4 rod ends. The rear lower links are bent for maximum breakover clearance. Multiple shock mounting locations and tunable shock length allow for a high range of ride height and breakover adjustment.



Product Specifications

Battery Sold Separately
Body Sold Separately
Charger Sold Separately
Chassis Carbon Fiber
Completion Level Kit
Differential Gear Diffs
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Gear Ratio Front: 46.5:1/ Rear: 68:1
Pinion 15T
Power Type Electric
Product Width 7.87" (200 mm)
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type Oil-Filled Shocks
Speed Control Sold Separately
Spur Gear 52T
Suspension Solid Axle
Vehicle Size Standard
Vehicle Type Rock Crawler
Wheelbase 12.67" (322 mm)
