Viper 70mm EDF Jet BNF Basic with AS3X and SAFE Select

Item No. EFL077500
New
Brand Logo
3.3 out of 5 Customer Rating

Viper 70mm EDF Jet BNF Basic with AS3X and SAFE Select

Item No. EFL077500
$349.99
RC Club points earned on this item shown at checkout.
Select Options
22.2V 3200mAh 6S 50C Smart G2 LiPo Battery: IC5
EFL077500 SPMX326S50
22.2V 3200mAh 6S 50C Smart G2 LiPo Battery: IC5
In Stock
$89.99
22.2V 3200mAh 6S 50C Smart LiPo Battery: IC5
EFL077500 SPMX32006S50
22.2V 3200mAh 6S 50C Smart LiPo Battery: IC5
In Stock
$89.99
22.2V 3200mAh 6S 100C Smart G2 LiPo Battery: IC5
EFL077500 SPMX326S100
22.2V 3200mAh 6S 100C Smart G2 LiPo Battery: IC5
In Stock
$99.99
22.2V 3200mAh 6S 100C Smart LiPo Battery: IC5
EFL077500 SPMX32006S100
22.2V 3200mAh 6S 100C Smart LiPo Battery: IC5
Next Shipment December 2023
$99.99
22.2V 3200mAh 6S 30C Smart G2 LiPo Battery: IC5
EFL077500 SPMX326S30
22.2V 3200mAh 6S 30C Smart G2 LiPo Battery: IC5
In Stock
$79.99
22.2V 3200mAh 6S 30C Smart LiPo Battery: IC5
EFL077500 SPMX32006S30
22.2V 3200mAh 6S 30C Smart LiPo Battery: IC5
In Stock
$79.99
22.2V 4000mAh 6S 30C Smart LiPo Battery, IC5
EFL077500 SPMX40006S30
22.2V 4000mAh 6S 30C Smart LiPo Battery, IC5
In Stock
$99.99
22.2V 4000mAh 6S 50C Smart LiPo Battery: IC5
EFL077500 SPMX40006S50
22.2V 4000mAh 6S 50C Smart LiPo Battery: IC5
In Stock
$119.99
22.2V 4000mAh 6S 50C Smart G2 LiPo Battery: IC5
EFL077500 SPMX46S50
22.2V 4000mAh 6S 50C Smart G2 LiPo Battery: IC5
In Stock
$119.99
0 Item Selected Items Selected
S1100 G2 1x100W AC Smart Charger
EFL077500 SPMXC2080
S1100 G2 1x100W AC Smart Charger
Next Shipment December 2023
$99.99
S1200 G2 AC 1x200W Smart Charger
EFL077500 SPMXC2020
S1200 G2 AC 1x200W Smart Charger
In Stock
$149.99
S1400 G2 AC 1x400W Smart Charger
EFL077500 SPMXC2040
S1400 G2 AC 1x400W Smart Charger
In Stock
$199.99
S2100 G2 2x100W AC Smart Charger
EFL077500 SPMXC2000
S2100 G2 2x100W AC Smart Charger
In Stock
$179.99
S2200 G2 AC 2x200W Smart Charger
EFL077500 SPMXC2010
S2200 G2 AC 2x200W Smart Charger
In Stock
$279.99
0 Item Selected Items Selected
NX6 6-Channel DSMX Transmitter Only
EFL077500 SPMR6775
NX6 6-Channel DSMX Transmitter Only
In Stock
$349.99
NX8 8-Channel DSMX Transmitter Only
EFL077500 SPMR8200
NX8 8-Channel DSMX Transmitter Only
In Stock
$399.99
NX10 10-Channel DSMX Transmitter Only
EFL077500 SPMR10100
NX10 10-Channel DSMX Transmitter Only
In Stock
$549.99
NX10SE Special Edition 10-Channel DSMX Transmitter Only
EFL077500 SPMR10110
NX10SE Special Edition 10-Channel DSMX Transmitter Only
In Stock
$649.99
iX14 14-Channel DSMX Transmitter Only
EFL077500 SPMR14000
iX14 14-Channel DSMX Transmitter Only
In Stock
$899.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
|

Product Details

This updated and upgraded version of the E-flite® Viper 70mm includes a higher performance power system, Smart electronics, shock-absorbing struts and softer tires. That makes it the perfect first "full-house" and high-performance jet for low-time to experienced EDF pilots!
Key Features
  • Updated and upgraded with a higher performance power system, Smart electronics, shock-absorbing struts and softer tires, plus a higher visibility color scheme
  • Extremely wide performance envelope and speed range, capable of top speeds up to 120+ MPH
  • Popular 6S 3200–4000mAh 30+C batteries deliver excellent performance and flight times
  • Spektrum AR631 receiver with fly-by range telemetry and industry-leading DSMX® technology
  • Optional-use thrust reversing to help shorten rollout after landing and for other special ground handling capabilities
icon-box
In The Box
  • (1) E-flite Viper 70mm EDF Jet BNF Basic with AS3X and SAFE Select
  • (1) Spektrum Avian 85A Smart Lite Brushless ESC (installed)
  • (1) Spektrum 1900Kv Brushless Inrunner Motor (installed)
  • (8) Spektrum Digital, Metal-Geared Servos (installed)
  • (1) Spektrum AR631 6-Channel Receiver (installed)
  • (1) E-flite Viper 70mm EDF Product Manual
icon-how-to
Needed to Complete
  • (1) Full-range 6–8+ Channel Spektrum DSMX®/DSM2® Compatible Transmitter
  • (1) 6S 22.2V 3200–4000mAh 30+C LiPo with EC5 or IC5 Connector
  • (1) Compatible LiPo Charger
Viper 70mm EDF Jet BNF Basic with AS3X and SAFE Select

Introduction

The full-scale Viper Jet was designed to deliver fighter-jet looks and performance with low-wing prop-driven airplane handling so more pilots could enjoy flying a jet. The E-flite® Viper 70mm EDF is true-to-form both in its appearance and how it delivers a high-performance jet experience like no other, whether you've flown many jets before or even if it's your first "full-house" jet model. It delivers incredible speed, vertical performance, and aerobatic capability while also being easier to take off and land than other similar class models – especially because this Bind-N-Fly Basic model is equipped with exclusive AS3X® and SAFE® Select technologies. This updated and upgraded version also includes a higher performance Spektrum motor and 85A Avian Smart Lite ESC for added speed and vertical performance, plus delivers real-time telemetry data and thrust reversing via the AR631 receiver, along with shock-absorbing struts and softer tires for easier landings!

Features

  • Updated and upgraded with a higher performance power system, Smart electronics, shock-absorbing struts and softer tires, plus a higher visibility color scheme
  • The best choice for a first "full-house" and high-performance jet for low-time to experienced EDF pilots
  • A scale jet model with incredibly smooth sport airplane handling and amazing aerobatic capability
  • Expertly engineered and optimized ducting for incredibly efficient performance without "cheater" holes
  • 12-blade 70mm fan delivers excellent top speed and vertical performance plus turbine-like sound
  • Upgraded and factory-installed 6S-compatible 3060-1900Kv brushless inrunner motor plus 85A ESC
  • Extremely wide performance envelope and speed range, capable of top speeds up to 120+ MPH
  • Popular 6S 3200–4000mAh 30+C batteries deliver excellent performance and flight times
  • 85-amp Spektrum Avian Smart Lite ESC provides real-time battery voltage, current draw, RPM and other data – with Smart and non-Smart batteries – via compatible transmitters
  • Optional-use thrust reversing to help shorten rollout after landing and for other special ground handling capabilities
  • Spektrum AR631 receiver with fly-by range telemetry and industry-leading DSMX® technology
  • Easier to fly with innovative and optional-use SAFE® Select flight envelope protection
  • The unmatched stability and locked-in feel of exclusive AS3X® technology
  • Functional and factory-installed flaps for shorter takeoffs and landings plus improved slow-flight performance
  • Steerable nose wheel and electric retracts with upgraded shock-absorbing struts for operation from a variety of surfaces
  • Softer tires to reduce bouncing when landing on paved and other hard surfaces
  • Eight fast and precise digital, metal-geared servos with ball-link equipped linkages
  • No glue is required for assembly and can be ready to fly in less time than it takes to charge a battery
  • Easy to install/remove one-piece wing with updated design to prevent stress cracks
  • Lightweight yet strong and durable composite-reinforced EPO construction
  • Large top hatch with clear canopy, cockpit detail and pilot figure
  • Unique and highly-visible trim scheme by Aircraft Studio Design

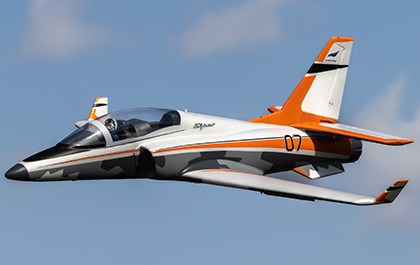

Overview

The E-flite® Viper 70mm EDF has been updated and upgraded to be the Smartest, best handling, and easiest-to-fly mid-sized model of the popular jet yet! It's a scale jet that flies smooth and handles like a sport airplane — yet is also capable of incredible aerobatics and top speeds. But what truly sets it apart is how easy it is to take off, fly, and land, which makes it the BEST choice for a high-performance EDF model for a variety of pilots. Assembly is fast and simple, with no glue or special tools required. The lightweight, composite-reinforced EPO airframe is factory-finished in the now iconic Aircraft Studio Design trim scheme with higher visibility color. And the eight factory-installed digital, metal-geared servos with ball-link equipped linkages deliver crisp and precise control at every speed. Functional flaps and electric retracts, with upgraded shock-absorbing struts plus wheels featuring softer tires to reduce bouncing when landing, make it a perfect first "full-house" jet model for those moving up from simpler EDF models.

This BNF® Basic version model includes a factory-balanced and installed 12-blade 70mm fan, matched to a larger 1900Kv brushless inrunner motor, plus an 85-amp Avian Smart Lite ESC that work together with the optimized ducting to deliver an abundance of speed and thrust. With this updated and upgraded power system, the Viper 70mm now has even better vertical performance and approximately 10% more speed than the previous version making it capable of level flight top speeds up to 120+ MPH and nearly unlimited vertical performance with 6S 3200mAh to 4000mAh batteries. It's also equipped with a factory-installed Spektrum AR631 receiver featuring exclusive AS3X and optional-use SAFE Select technologies. When using compatible AirWare-equipped transmitters, the receiver and Smart Lite ESC supply overall battery voltage, current draw, motor RPM and other telemetry data in real-time — with Smart and non-Smart batteries. And with a 7–8+ channel transmitter, you can also take advantage of the optional-use thrust reversing to shorten rollouts after landing and for other special ground handling capabilities. It all adds up to deliver a mid-sized, full-house and high-performance EDF jet experience unlike any other for low-time to experienced jet pilots!

Video Overview



Skill Level 2 – Some Experience Required
Skill Level 2 – Some Experience Required

Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up, and fly similar class models. And although this BNF Basic version is equipped with AS3X and optional-use SAFE Select that makes it easier to fly than PNP versions, it's not a suitable first-ever RC aircraft for new pilots, a "next step after a trainer" model for low-time RC pilots, or first EDF (Electric Ducted Fan)/jet model for intermediate pilots. You should have the experience and skills necessary to successfully fly simpler EDF models like the E-flite Habu SS (Super Sport) 50mm or 70mm, F-15 Eagle 64mm, and/or higher performance sport models like the V900 and V1200, or warbirds like the 1.2m and 1.5m series models, before attempting to fly the Viper 70mm EDF.

Are you new to flying RC (Radio Controlled) aircraft? If you are, the Viper is not a suitable first-ever RC model and we recommend learning to fly with one of our purpose-built trainer aircraft such as the E-flite® Habu STS (Smart Trainer with SAFE) 70mm EDF (www.horizonhobby.cc/HabuSTSRTF). It's equipped with exclusive and innovative SAFE technology that makes it possible for almost anyone to learn to fly successfully! The Ready-To-Fly (RTF) Basic version includes almost everything needed to fly (except for a compatible LiPo battery and charger that are sold separately) and is a perfect choice if you're a new RC pilot!



Bind-N-Fly<sup>®</sup> Completion Level Advantage
Bind-N-Fly® Completion Level Advantage

Already own a Spektrum transmitter? Bind-N-Fly® (BNF®) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!



Exclusive Technologies
Exclusive Technologies

This mid-sized Viper model is equipped with exclusive Spektrum AS3X® and SAFE® Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch! And if you don't want to enable the SAFE Select features, simply bind the receiver normally and only AS3X will be active.



Smart Technology
Smart Technology

The exclusive Spektrum Avian Smart Lite ESC provides a variety of real-time power system-related telemetry data including overall battery voltage, current draw, motor RPM, and more – with Smart and non-Smart batteries – via compatible receivers (including the AR631) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly. Plus, optional-use motor/thrust reversing can help shorten rollout after landing and offers other special ground handling capabilities (7–8+ channel transmitter required for reversing).

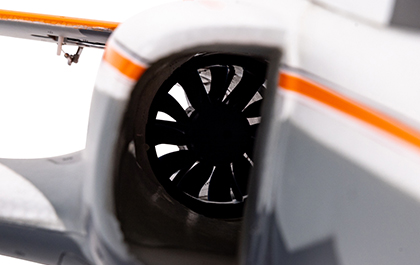

Higher Performance
Higher Performance

The 12-blade 70mm fan, upgraded 1900Kv brushless inrunner motor and 85-amp ESC combine with your 6S 3200–4000mAh 30+C LiPo battery to deliver nearly unlimited vertical performance and a fantastic speed range with virtually instantaneous throttle response. But what makes the experience truly rewarding is the amazing sound produced by the power system—it's almost like a real turbine engine.



Functional Flaps
Functional Flaps

The factory-installed, fully-functional flaps offer improved slow-flight capability and performance while also making it possible to take off and land in shorter distances and at slower speeds. This makes the Viper 70mm a perfect first "full-house" jet model for those moving up from simpler EDF models.

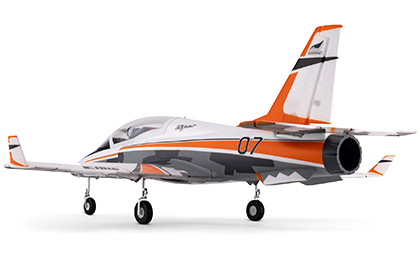

Electric Retracts
Electric Retracts

The steerable nose wheel and wide-spaced main gear feature reliable electric retract units equipped with metal components to deliver excellent ground handling. Upgraded shock-absorbing struts make it possible to operate from a variety of paved, dirt and even some grass surfaces, plus the softer tires reduce bouncing when landing on hard surfaces.



Durable Precision
Durable Precision

The lightweight yet durable EPO airframe is composite reinforced for added strength, and the wing design has been updated to prevent stress cracks. Plus, the eight factory-installed digital, metal-geared servos with ball-link equipped linkages deliver crisp and precise control at every speed.

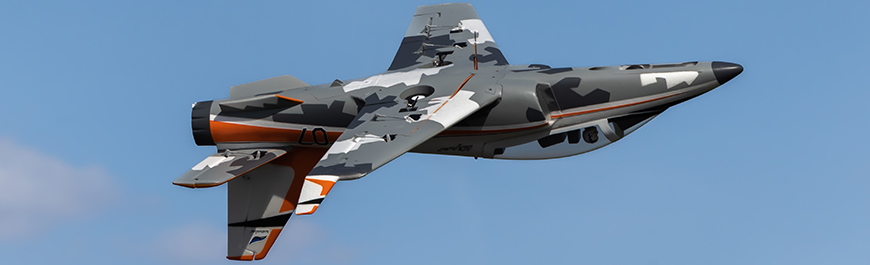

Unmatched Capability
Unmatched Capability

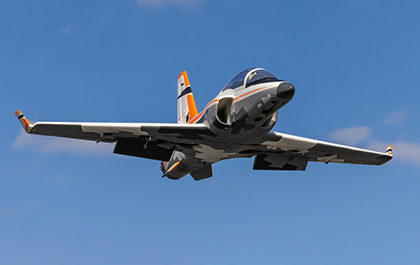

The Viper design offers incredible handling across a wide speed range and flight envelope. From slower-than-expected landings and low-speed passes to 120+ MPH high-speed flybys, the airframe and power system combine to deliver unbelievable performance and aerobatic capability so you can perform giant loops, rolls, endless knife edge flight, snaps, tumbles and other maneuvers almost effortlessly.



Easy Assembly
Easy Assembly

No glue is required for assembly, and you can have the Viper ready to fly in less time than it takes to charge a battery! Plus, it's factory-finished in an exclusive and unique, highly-visible trim scheme by Aircraft Studio Design.



EFL077500 Footer Image

Product Specifications

Product Weight 65.5oz (1856g) with Recommended Battery
Charger Sold Separately
Receiver Included
Minimum Required Radio Full-range 6–8+ channel Spektrum DSMX®/DSM2® compatible transmitter
Radio Sold Separately
Technology Smart, AS3X and SAFE
LiPo Compatibility 6S
Completion Level Bind-N-Fly Basic
Recommended Motor Battery 22.2V 3200mAh 6S 50C LiPo Battery with EC5 or IC5 Connector
Motor Type Brushless
Speed Control Included
Power Type Electric
Servos Included
Skill Level Level 2
Wingspan 43.31" (1100 mm)
Battery Sold Separately
Connector Type IC5
Motor Size 3060-1900Kv
Product Length 40.39" (1026 mm)
Approximate Assembly Time Less than 1 Hour
Flaps Yes
Material EPO
Retracts Included
