Turbo Timber Evolution 1.5m PNP, includes Floats

Item No. EFL105275

Product Details

The E-flite® Turbo Timber® Evolution 1.5m is the most convenient, capable, and durable version of the popular STOL-capable model yet. Upgrades including a top-mounted hatch, stronger gear mounts, Smart electronics and more make it better than ever!
Key Features
  • The best “next step”, everyday sport and STOL capable model for a wide range of pilots
  • More convenient top hatch with larger battery compartment to fit 3S 2200mAh to 4S 5000mAh batteries
  • Combined connectors make installing/removing the wing easier for more convenient storage and transport
  • Stronger, reinforced mounts plus shock-absorbing landing gear and oversized wheels/tires
  • Includes optional-use floats with steerable rudders for flying from water
icon-box
In The Box
  • (1) E-flite® Turbo Timber® Evolution 1.5m
  • (1) Spektrum™ Avian™ 60A Brushless Smart ESC (installed)
  • (1) Brushless Outrunner Motor (installed)
  • (6) Metal-Geared Servos (installed)
  • (1) Set of Optional-Use Leading Edge Slats
  • (1) Set of Optional-Use Floats
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (1) Full-range 5+ Channel Transmitter and Receiver
  • (1) 3S 11.1V or 4S 14.8V 2200–5000mAh LiPo with EC3™ or IC3™ Connector
  • (1) Compatible LiPo Charger
Turbo Timber Evolution 1.5m PNP, includes Floats

Evolution Of A Legend

Many RC pilots got their first taste of flying a Short Take Off and Landing (STOL) capable airplane with the original E-flite® Timber® 1.5m model. Its friendly handling, nimble sport performance, and takeoff-and-land-almost-anywhere abilities made it one of the most popular RC aircraft of all time — widely acclaimed and highly recommended as a great "next step" after a trainer, as the perfect first STOL-capable aircraft, and as one of the best all-around, fun-to-fly sport models for a wide range of pilots. Its next evolution, the Turbo Timber® 1.5m, proved even more popular than the original with the addition of metal-geared servos, a 3S and 4S compatible power system, plus a turboprop-styled nose and 3-blade propeller. Now comes the Turbo Timber® Evolution 1.5m, ready to continue the Timber legend with new upgrades that deliver more durability, convenience, and capabilities than ever before — plus a fresh and modern look!

Features

  • Evolved with updates and upgrades including Smart electronics to offer new capabilities and telemetry features, added convenience, more durability, plus a fresh and modern look
  • The best "next step", everyday sport and STOL capable model for a wide range of pilots
  • Incredible Short Takeoff and Landing (STOL) plus sport and aerobatic flight capabilities
  • 60-amp Spektrum Avian Smart ESC provides real-time battery voltage, current, motor RPM and other data, plus reversing capabilities, via compatible receivers and transmitters
  • High-power 3S and 4S compatible outrunner motor with 3-blade prop for proven performance
  • More convenient top hatch with larger battery compartment to fit 3S 2200mAh to 4S 5000mAh batteries
  • Combined connectors make installing/removing the wing easier for more convenient storage and transport
  • Stronger, reinforced mounts plus shock-absorbing landing gear and oversized wheels/tires
  • Optional-use leading edge slats for improved STOL and slow flight performance
  • Functional and factory-installed LED landing, navigation and strobe lights
  • Includes optional-use floats with steerable rudders for flying from water
  • Stiffened wing for improved aileron authority, roll rates and handling
  • Lightweight yet durable composite-reinforced EPO construction
  • Six durable, factory-installed metal-geared servos and linkages
  • Functional slotted flaps for shorter takeoffs and landings
  • Bolt-on, two-piece wing with carbon fiber wing joiner
  • Fast and easy assembly – no glue required

Smarter, Stronger, And More Capable

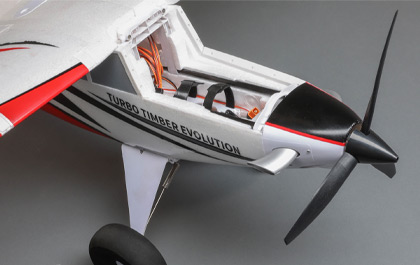

The E-flite® Turbo Timber® Evolution 1.5m has been evolved into the Smartest, most convenient, capable, and durable Timber yet! Popular features from the original Timber are all there: the shock-absorbing landing gear with oversized, tundra-style wheels; optional-use float set and leading edge slats; functional slotted flaps; and an LED lighting system with landing, navigation and strobe lights. So are the enhancements that gave the Turbo Timber® more performance and capabilities, including a turboprop-styled nose, 3-blade prop and spinner, a more powerful 3S and 4S compatible power system, and a stiffer wing with durable, reliable metal-geared servos. Now the Turbo Timber Evolution 1.5m adds a new top hatch for faster, easier battery changes, plus combined connectors for simpler wing installation and removal. Strengthened landing gear mounts improve the model's durability and STOL capability when flying from rough terrain. The proven Turbo Timber power system is upgraded with an exclusive Spektrum Avian 60-amp Smart ESC, and the BNF® Basic version is equipped with an AR637TA receiver to provide full-range, real-time telemetry data including battery voltage, current, motor RPM and more — plus motor reversing for special ground handling and other capabilities — along with the benefits of AS3X® and optional-use SAFE® Select technologies. There's even a fresh, modern trim scheme for the durable, composite-reinforced airframe! The Turbo Timber Evolution 1.5m remains the best "next step", everyday sport and STOL-capable model for a wide range of pilots — only it's now better than ever!

Video Overview



Programming Guide



Smart Technology
Smart Technology

Both the PNP and BNF® Basic versions of the Turbo Timber® Evolution 1.5m are equipped with an exclusive Spektrum Avian 60-Amp Smart ESC that can provide a variety of real-time power system related telemetry data including motor RPM, current, battery voltage and more via compatible Smart receivers (such as the AR637TA installed in the BNF Basic version) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, NX6, 8 and 10, the iX12, iX20 and others) while you fly. It also features optional-use motor reversing to offer special ground handling and other capabilities.



Versatile Gear Options
Versatile Gear Options

Thick grass, gravel paths, dirt trails — even local lakes and ponds — you can fly from these and many other surfaces that are impossible for most models of this size to handle. The stronger, reinforced mounts in the fuselage, plus shock-absorbing landing gear equipped with oversized, tundra-style wheels and tires, soaks up the bumps of rough surfaces and provides excellent prop clearance. The included float set features dual water rudders for superb steering control. Whichever gear option you choose to fly with, both are easy to install and can be swapped out in minutes.



STOL (Short Takeoff and Landing) Capable
STOL (Short Takeoff and Landing) Capable

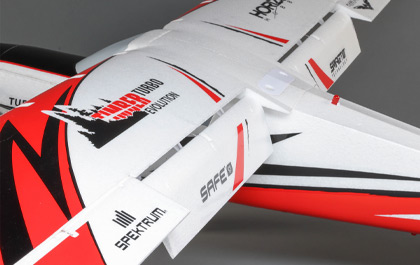

The Turbo Timber® Evolution's wing is designed with features like drooped wingtips and functional slotted flaps, and accepts optional-use leading edge slats (included) for improved slow flight and STOL performance. These features, along with the lightweight design and high-power brushless motor, make it possible to spring into the air or float down to land in as little as two feet or less.



Versatile Power
Versatile Power

The factory-installed brushless power system features a Spektrum Avian 60-amp Smart ESC along with a specially-tuned motor and 3-blade prop that deliver an abundance of thrust with a 3S LiPo battery, or more power and unlimited vertical performance with a 4S battery without the need for any modifications or upgrades. Plus, the more convenient top hatch and larger battery compartment makes it easier to fit batteries from 3S 2200mAh to 4S 5000mAh to achieve a wide variety of performance and flight times.



Versatile Durability
Versatile Durability

Composite-reinforced, hollow-core construction with EPO material delivers a lightweight yet durable airframe. The Turbo Timber® Evolution 1.5m also features a stiffened wing that improves aileron authority and roll rates, plus it's equipped with durable and reliable metal-geared servos all around.



LED Lights
LED Lights

Like the original, the Turbo Timber® Evolution 1.5m comes with realistic-looking LED landing, navigation and strobe lights that are factory-installed and powered from the flight battery.



Easy Assembly
Easy Assembly

No glue is required for assembly, and because the few parts that need to be assembled easily bolt into place, the Turbo Timber® Evolution 1.5m can be ready to fly in less time than it takes to charge the flight battery. The two-piece wing, now featuring combined servo and LED connectors, also makes transport and storage more convenient than ever before.



Plug-N-Play Completion Level
Plug-N-Play® Completion Level

This Plug-N-Play (PNP) model comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately). Simply install the receiver, finish any final assembly, and fly!



Product Specifications

Airfoil Shape Semi-symmetrical
Approximate Assembly Time Less than 1 hour
Battery Sold Separately
CG (Center of Gravity) 2.4" (60mm) +/- 0.20" (5mm) from leading edge of wing measured at fuselage
Charger Sold Separately
Completion Level Plug-N-Play
Flaps Yes
LiPo Compatibility 3S
Material EPO
Minimum Required Radio 6-channel
Motor Size 10 size, 800Kv
Power Type Electric
Product Length 40.9" (1039 mm)
Product Weight 54 - 60oz (1.53 - 1.7kg)
Propeller Size 11x7.5 3-blade
Radio Sold Separately
Receiver Sold Separately
Servos Included
Skill Level Level 3
Speed Control Included
Wing Area 559.5 sq in (36.1 sq dm)
Wingspan 61" (1549 mm)
