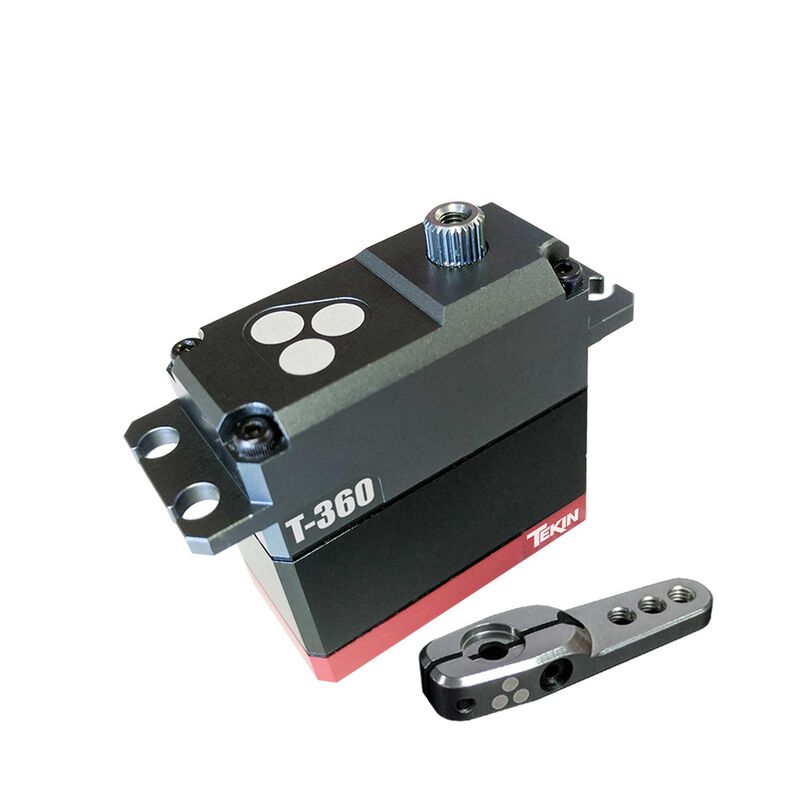

T360 Standard Digital HV High Speed Metal Gear Servo

Item No. TEKTT1506
Backorder
Brand Logo
3.1 out of 5 Customer Rating

T360 Standard Digital HV High Speed Metal Gear Servo

Item No. TEKTT1506
$172.99 Price reduced from $255.00 to
Next Shipment November 2020
Selected Store

Product Details

Key Features

  • Specifically Designed for Rock Crawling and Rock Racing Applications
  • Included Aluminum 20mm Crowbar Servo Arm
  • Full Aluminum Servo Housing
  • Precision Cut Full Metal Gears
  • ABEC5 Ball Bearings
  • Digital Magnetic Position Encoder
  • High Voltage Capable
  • High Torque Coreless Motor
  • 25T Output Spline
  • Programmable via HotWire Interface
  • Overload Protection Technology
  • Thermal Protection Circuitry
  • Low Voltage Alarm*
  • Quiet, Efficient, Cool Operation
  • HDAC: High Density Copper PCB's
  • *requires HotWire sold separately

Overview

Hit the trails hard with the Tekin T-360 Crawler Servo. Rocks, Mud, Dirt or Snow. The Element Proof Design means you can tackle any terrain. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you out of a bind. Fine-tune your setup with and extensive set of adjustments via Tekin's HotWire PC Interface.

Product Specifications

Specs

Application Rock Crawling and Rock Racing
Bushing Or Bearing Bearing
Gear Type Metal
Maximum Servo Speed 0.050-0.099 sec
Maximum Servo Torque 350-499 oz-in
Motor Type Coreless
Product Height 1.57 in (40mm)
Product Length 1.57 in (40mm)
Product Weight 2.57 oz (73g)
Product Width 0.79 in (20mm)
Programmable Yes
Servo Operating Voltage 4.8 - 8.4V (HV)
Servo Size Category Standard
Servo Type Digital
Speed 0.09 sec/60 deg @ 8.4V
Spline Count 25-Tooth
Torque 413 oz-in (29.8kg-cm) @ 8.4V
