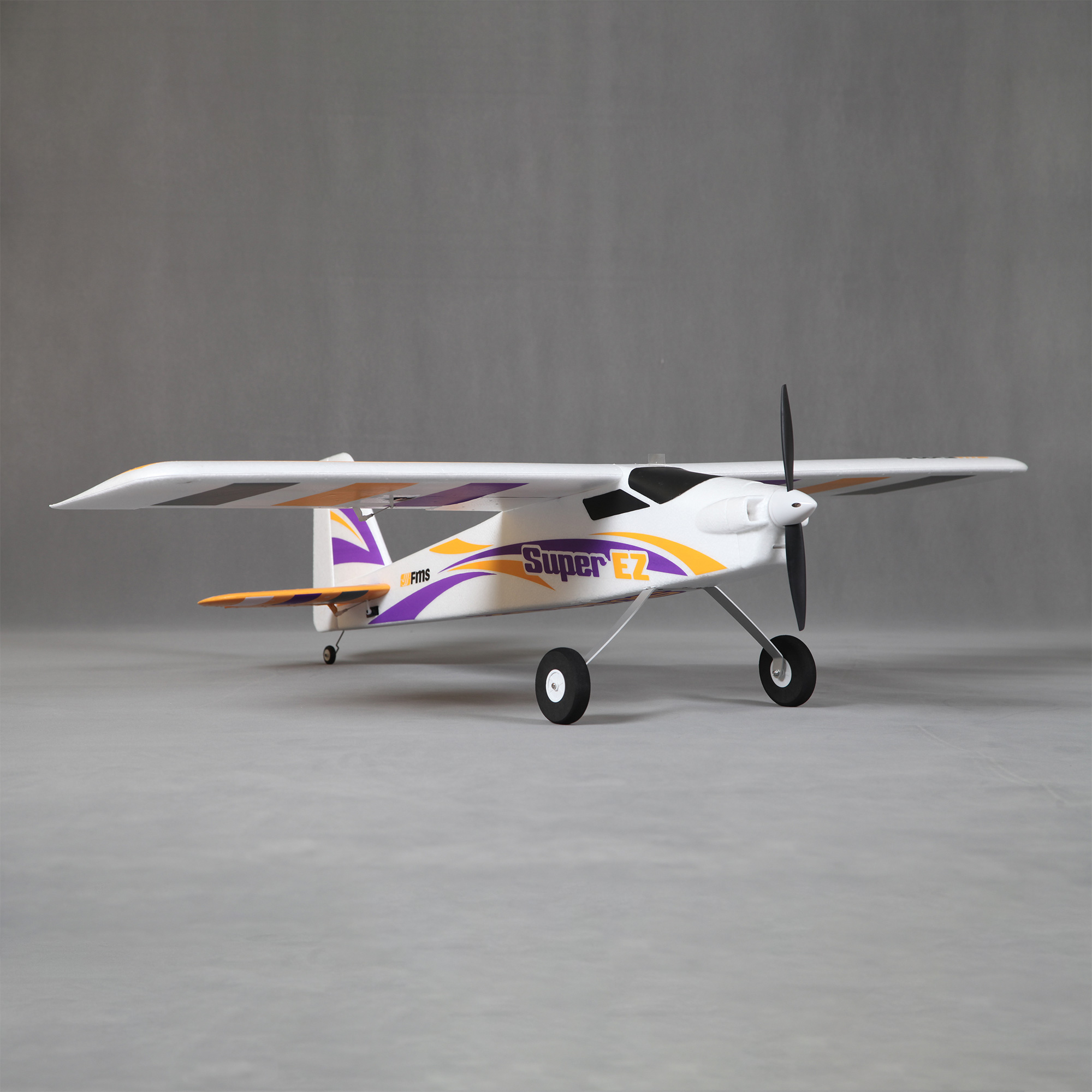

Super EZ PNP 1220mm V4 with Floats and Reflex

Item No. FMM122PX
Brand Logo
4.2 out of 5 Customer Rating

Super EZ PNP 1220mm V4 with Floats and Reflex

Item No. FMM122PX
$209.99
RC Club points earned on this item shown at checkout.
Select Options
11.1V 1300mAh 3S 25C LiPo: XT60
FMM122PX FMM3S130025C
11.1V 1300mAh 3S 25C LiPo: XT60
Next Shipment November 2024
$21.99
0 Item Selected Items Selected
S1500 DC Smart Charger, 1x500W
FMM122PX SPMXC1050
S1500 DC Smart Charger, 1x500W
This item is currently not available
$129.99
S2200 G2 AC 2x200W Smart Charger
FMM122PX SPMXC2010
S2200 G2 AC 2x200W Smart Charger
In Stock
$239.99
S1400 G2 AC 1x400W Smart Charger
FMM122PX SPMXC2040
S1400 G2 AC 1x400W Smart Charger
In Stock
$199.99
0 Item Selected Items Selected
DXS Transmitter with AR410 Receiver
FMM122PX SPM1010
DXS Transmitter with AR410 Receiver
In Stock
$149.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

icon-box
In The Box
  • (1) FMS Super EZ V4, 1220mm
  • (1) Brushless 3136, 1200Kv outrunner (installed)
  • (1) Brushless 20A ESC (installed)
  • (4) 9-gram, micro
  • (1) Optional-use floats; single water-rudder with servo
  • (1) Product Manual
icon-how-to
Needed to Complete
  • Full-range, 4+ channel transmitter
  • Full-range, 4+ channel receiver
  • 1300mAh 3S LiPo flight battery
  • Compatible LiPo charger

Introduction

Built upon the successful SuperEZ V3, FMS has completely upgraded the SuperEZ V4 with digital 9g servos to ensure pinpoint precision and bulletproof reliability. The addition of attractive purple accents to the color scheme make the SuperEZ V4 a head-turner at every field! Like the Super EZ V2 and V3, the V4 can be installed with floats! Allowing for water and snow operations.

Features

  • Traditional 4-channel control
  • Glue-free construction—can be assembled in as little as 5-minutes
  • Strong, one-piece wing with quick-release hardware
  • Installed brushless power system provides a high power-to-weight
  • Durable, lightweight metal landing gear with large wheels
  • 10+ minute flight times with recommended battery
  • Water-proof micro servos provide lightweight all-weather operations
  • New fuselage and one-piece horizontal stabilizer*
  • New spinner prevents vibration
  • Optional-use float set with servo-operated water rudder included
  • Lightweight and durable EPO construction

Overview

FMS has always dedicated its engineering efforts towards making aircrafts suitable for every skill level. The SuperEZ has always been a perfect beginner-friendly sport aircraft. Using a large, high-winged design constructed out of lightweight EPO foam, the SuperEZ has an ultra-low wing loading and stable flight characteristics giving beginner pilots great handling even at slow speeds.

An improved brushless power system and propeller gives the aircraft ample power while still maintaining 10-15 minute flight times. A high strength, lightweight metal landing gear set absorbs even the hardest landings. For easy transportation, the SuperEZ is designed with a quick-release mechanism that can release the wing in a matter of seconds.

Video Overview



FMS Reflex V2



Complete System Upgrade - Reflex V2 is Compatible with Most FMS Aircraft

The Reflex V2 is a user-upgradeable flight controller. Reflex V2 can be reprogrammed easily with different model files via a simple software - allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own “co-pilot” — the Reflex V2!

Reflex Functions

Three flight modes are available: Stabilized, Optimized or Off. This is controlled with a two or three position switch on the transmitter. When assigned to a two position switch, the Reflex system changes between stabilized and optimized modes.

Stabilized mode: Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released - giving pilots absolute peace of mind. Note: The aircraft will maintain level flight with 50-60% throttle, and the aircraft will climb under full throttle.

Optimized mode: Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets - for gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!

Off: Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.

Reflex V2 Overview



Software Installation



Product Specifications

Approximate Assembly Time Less than 1 Hour
Approximate Flight Time Approximately 4 minutes
Battery Sold Separately
CG (Center of Gravity) 3.14 - 3.54" (80 - 90mm) from leading edge of wing
Charger Sold Separately
Completion Level Plug-N-Play
Flaps No
LiPo Compatibility 3S
Material EPO
Minimum Required Radio 4-channel
Motor Size 3136-1200Kv
Power Type Electric
Product Length 40.2" (1021 mm)
Product Weight 31.39oz (890g)
Propeller Size 10 x 5
Radio Sold Separately
Receiver Sold Separately
Recommended Motor Battery 11.1V 1300mAh 25C LiPo
Servos Included
Skill Level Level 3
Speed Control Included
Trim Scheme Colors White, blue and orange
Wing Area 440.2 sq in (28.4 sq dm)
Wing Loading 0.07 oz/sq in (31.34 g/sq dm)
Wingspan 48" (1219 mm)
