Starter 2S Brushless ESC & Motor Combo: SCX24

Item No. FRU2426
Discontinued
Brand Logo
5 out of 5 Customer Rating

Starter 2S Brushless ESC & Motor Combo: SCX24

Item No. FRU2426
This Item is No Longer Available
Selected Store

Product Details

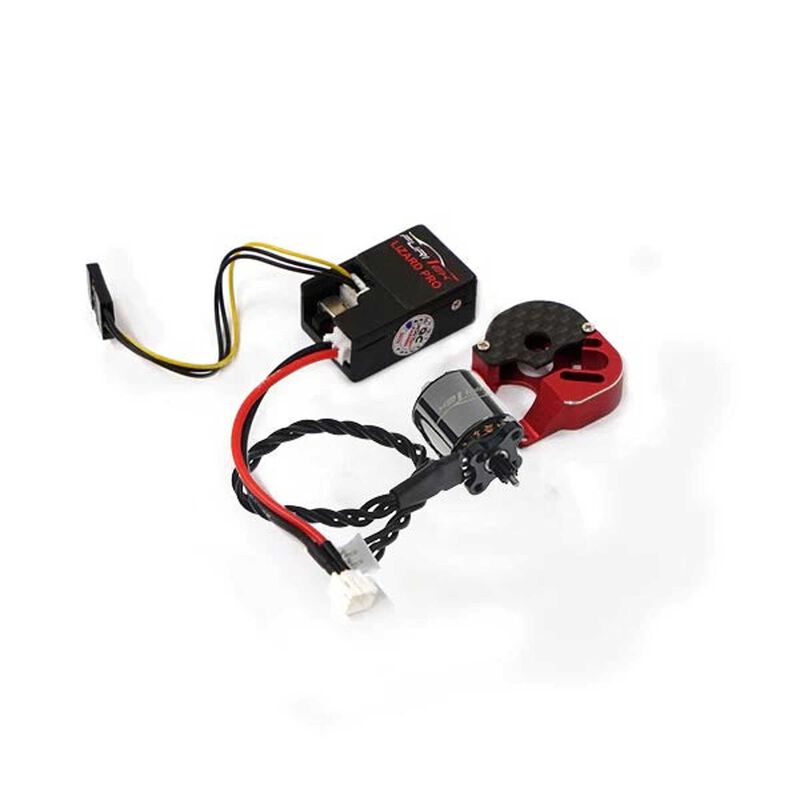

Furitek Starter 118 2S Brushless Power System for the Axial SCX24.
Key Features
  • 12 Pole Hi-Torque Motor Design
  • Bluetooth Module For Wireless Connection
  • Precision CNC Brass Pinion
  • FOC (Field-Oriented Control) Technology
  • Support 2S-3S LiPo Batteries
icon-box
In The Box
  • (1) Lizard Pro Brushless ESC
  • (1) Venom 1212 3450KV Brushless Motor
  • (1) 11T CNC Steel Pinion
  • (1) CNC Aluminum Motor Mount

Overview

Introducing the Furitek STATER brushless power system for SCX24, the system includes the VENOM 1212 3450kv with lighter and smaller size yet very powerful at low speed but also more powerful and fast at high speed. The motor is designed with high torque at low speed crawling and with a special firmware from the Lizard Pro ESC, this motor is super smooth without any cogging at both low and high speed operation.

With Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.

Features

  • A smaller and lighter brushless motor VENOM 1212 for low C.G. setup same like stock
  • High performance and powerful 30A/50A brushless ESC with FOC technology
  • Bluetooth module for wireless connection
  • Precision CNC aluminum motor mount for better holding motor in place
  • Precision CNC brass pinion for long-lasting operation
  • Powerful at low speed but also more powerful and fast at high speed
  • High torque at low speed crawling
  • Super smooth without any cogging at both low and high speed operation
  • Lifetime FREE firmware upgrade!

ESC Features

  • Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
  • FOC (Field-oriented control) technology
  • Plug and Play designed for AXIAL SCX24 crawlers
  • 5V/ 6.5V 2.5A Built-in BEC (config via app)
  • Support 2S-3S lipo battery - Mini size and lightweight
  • Super easy programming via App on both Android and IOS
  • Firmware update available (Bluetooth module required)
  • Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX

Motor Features

  • 12 Pole hi-torque motor design.
  • Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
  • Japansese NMB --High RPM ABEC5 bearings.
  • Precision balanced rotor, smoothness for best reliability and maximum RPM.
  • CNC machined 6061 T6 billet aluminum heatsink can.
  • Precision engineered for maximum energy conversion.
  • High purity and higher temperature single copper windings, lower copper losses, very good heat dissipating, maximizes efficiency.

Product Specifications

BEC Yes
BEC Voltage 5V or 6.5V
Forward Yes
Idle Current (Io) 10V – 0.7A
Input Voltage 2S - 3S
Manufacturer # 2426
Maximum Burst Current 50A
Maximum Continuous Current 30A
Motor Type Brushless
Number of Poles 12
Product Length 1.1" (28 mm)
Product Weight 0.13 oz (3.7g)
Product Width 0.61" (15 mm)
Resistance 0.16 Ohms
Reverse Yes
RPM/Volt (Kv) 3450KV
Shaft Diameter 0.05" (1 mm)
Shaft Length 0.23" (6 mm)
Speed Control Included
