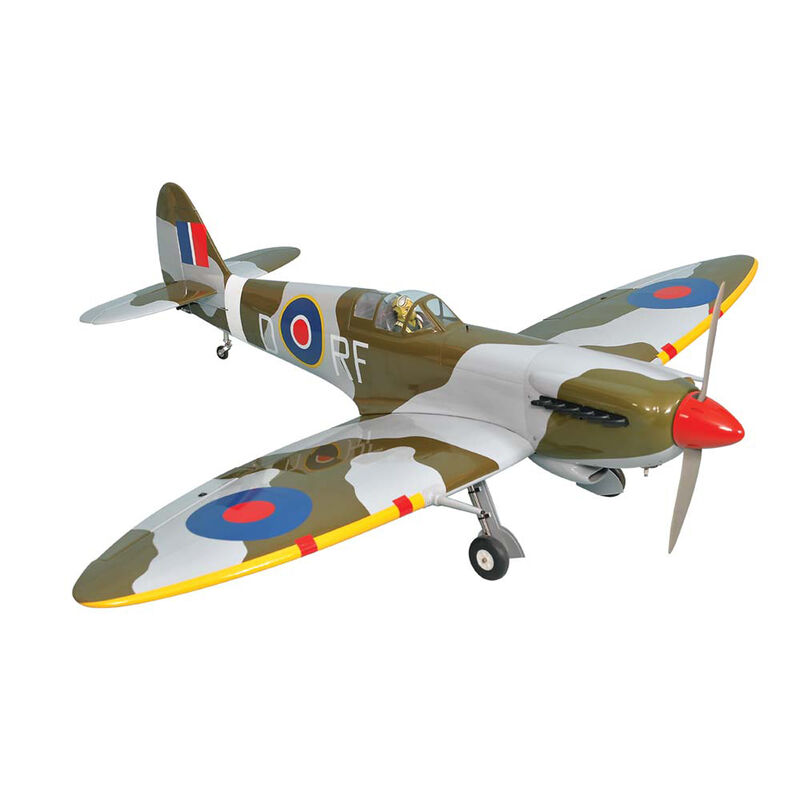

Spitfire 30cc Gas EP ARF 70.8"

Item No. PMMA1780
Brand Logo
3.8 out of 5 Customer Rating

Spitfire 30cc Gas EP ARF 70.8"

Item No. PMMA1780
$419.99
RC Club points earned on this item shown at checkout.
In Stock
Selected Store
|

Product Details

Key Features
  • Construction: Balsa and ply
  • Wing: One-piece, with ailerons and flaps, 21.5" (546mm) long, 1.26" (32.1mm) diameter aluminum joiner tube
  • Cowl: Painted fiberglass
  • Covering: High quality heat shrink covering
  • Landing Gear: Retracts with CNC machined metal struts, spring tail gear
  • Wheels: 3.25" (82.5mm) main, 1.25" (32mm) tailwheel
  • Spinner: Red plastic 3.7" (95mm) diameter
  • Top Hatch: Removes for easy access to battery and radio equipment
  • Engine Mount: Two-piece composite
  • Motor Mount: Plywood
  • Fuel Tank: Approximately 14oz (420cc)
icon-box
In The Box
  • Spitfire 30cc Gas EP ARF
  • Prebuilt Wing
  • Fuselage and Tail Assemblies
  • Retracts
  • Main Wheels
  • Tailwheel
  • Spinner
  • Engine Mount
  • Motor Mount
  • Fuel Tank
  • Decal Sheet
  • Product Manual
icon-how-to
Needed to Complete
  • Gasoline Power; Engine: 30cc 2-cycle oil, ignition battery
  • Electric Power; Brushless Motor: Great Planes Rimfire 1.20 recommended ESC: 80A if using the Rimfire 1.20 motor listed above LiPo Battery: 5-6 cells, 5500 - 6000mAh Charger, charging bag
  • Propeller: Compatible with selected engine or motor
  • Radio: 6-channel minimum
  • Servos: 7 standard size, high-torque, 2-aileron; 2-flap; 1-elevator 1-rudder; 1 throttle (if using gas engine)
  • Retract Gear Servos: Two, Futaba S3170G recommended
  • Receiver Battery: 4.8-6V / 2000mAh NiMH
  • Field and maintenance equipment
Spitfire 30cc Gas EP ARF 70.8"

Video Overview



Agile and aggressive!

The Spitfire was the victor of the Battle of Britain, the savior of England, and an impressively agile aircraft on top of it all. The Phoenix Models scale representation of this historic aircraft is designed to be scale in looks and performance! Drop in a power system that suits you and fire up your favorite radio for intense aerobatics on demand!
  • Pre-covered in high-quality film
  • Retractable landing gear with CNC suspension metal struts and spring tail gear
  • NACA airfoils
  • 95mm plastic spinner
  • 21 x 42mm servo mount
  • GP/EP compatible
  • Removable top hatch for easy radio setup
  • Strong, light construction
  • High-quality hardware package
95mm plastic spinner
95mm plastic spinner

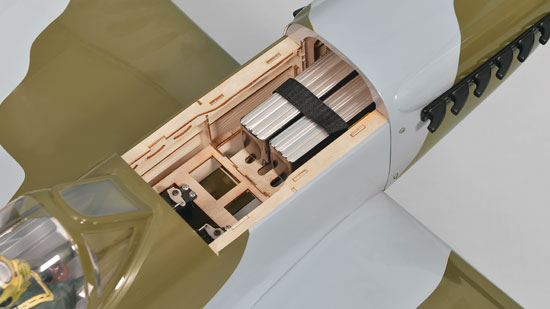

Removable Top hatch for easy change lipo battery and set up radio
Removable Top hatch for easy change lipo battery and set up radio
Retract With CNC Suspension Metal Struts and spring tail gear included
Retract With CNC Suspension Metal Struts and spring tail gear included

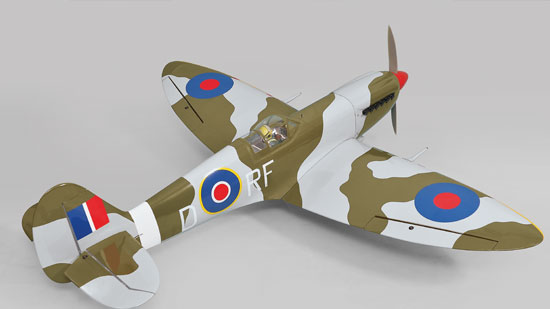

Pre-covered in high-quality film
Pre-covered in high-quality film
Designed for compatibility with both EP and GP flight
Designed for compatibility with both EP and GP flight

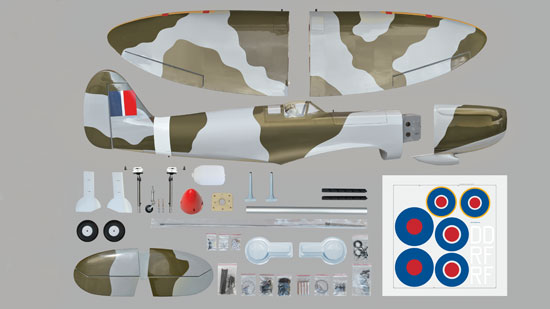

High-quality hardware package included
High-quality hardware package included
