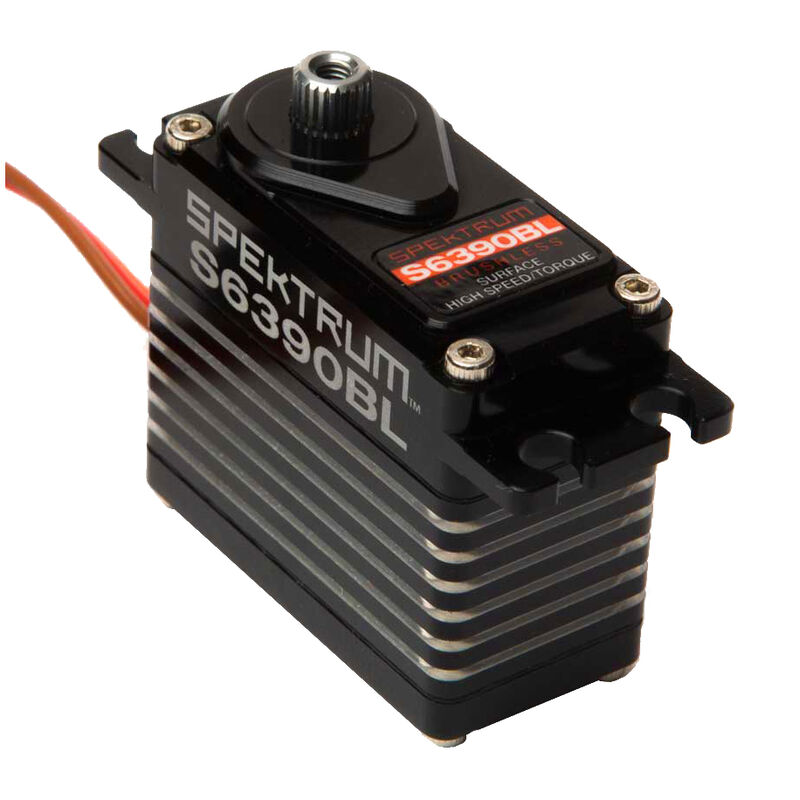

S6390BL 1/8 Scale Standard Digital HV High Speed High Torque Brushless Metal Gear Surface Servo

Item No. SPMSS6390BL
Discontinued
Brand Logo
5 out of 5 Customer Rating

S6390BL 1/8 Scale Standard Digital HV High Speed High Torque Brushless Metal Gear Surface Servo

Item No. SPMSS6390BL
This Item is No Longer Available
Selected Store
S6280 Standard Digital HV Ultra Torque High Speed Waterproof Metal Gear Surface Servo
S6280 Standard Digital HV Ultra Torque High Speed Waterproof Metal Gear Surface Servo
SPMSS6280
View Alternate Product Details

Product Details

Key Features

  • Brushless motor
  • High-speed
  • High-torque
  • Steel gears
  • Aluminum finned case for good heat dissipation
  • Aluminum mounting tabs
  • Dual main bearings
  • 23T output shaft
  • 1-Year Limited Warranty

Overview

This is the brushless generation of Spektrum surface servos provides you with the performance you need for any 1/8 scale vehicle application. High-Voltage applications up to 8.4V and feature all metal case construction for the ultimate 1/8th scale performance.

Product Specifications

Application 1/8 Off-Road
Bushing Or Bearing Bearing
Connector Type Universal
Connector Wire Length 7.87 in (200mm)
Gear Type Metal
Maximum Servo Torque 312 oz-in (22.5kg-cm) @ 8.4V
Motor Type Brushless
Part Type Electronics
Product Height 1.47 in (37.3mm)
Product Length 1.58 in (40.1mm)
Product Weight 2.3 oz (65g)
Product Width 0.79 in (20.1mm)
Programmable No
Servo Operating Voltage 6.0 - 8.4V (HV)
Servo Size Category Standard
Servo Type Digital
