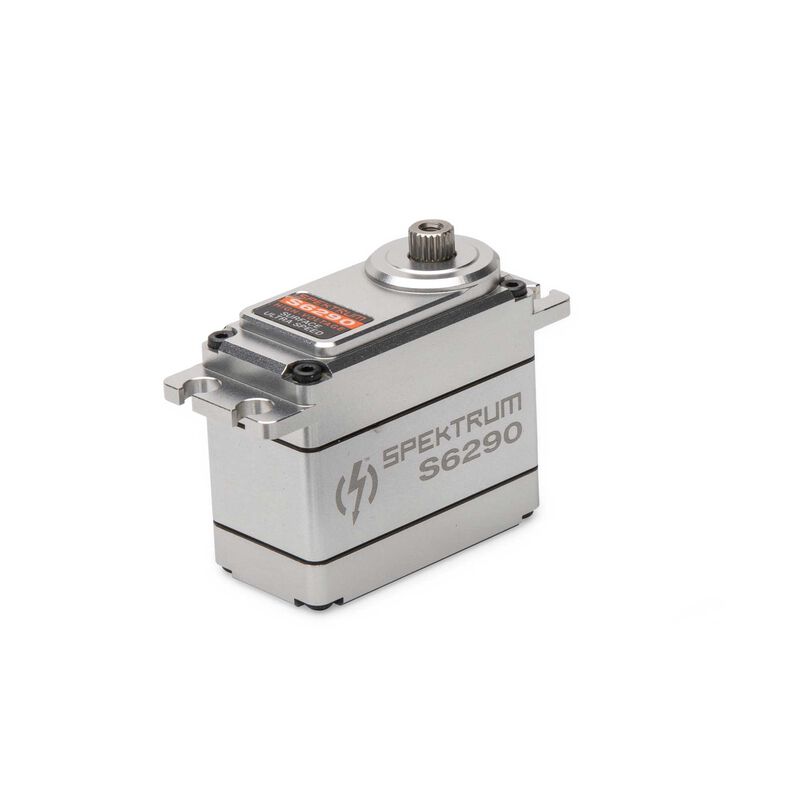

S6290 Standard Digital HV Ultra Speed Metal Gear Surface Servo

Item No. SPMSS6290
Discontinued
Brand Logo
3.6 out of 5 Customer Rating

S6290 Standard Digital HV Ultra Speed Metal Gear Surface Servo

Item No. SPMSS6290
This Item is No Longer Available
Selected Store

Product Details

Key Features

  • Removable wire harness with different lengths available
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Aluminum case for good heat dissipation
  • Aluminum mounting tabs
  • NMB dual main bearings
  • 23T output shaft
  • Waterproof
  • 1-Year Limited Warranty

Overview

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Product Specifications

Application Surface
Bearing Dual
Bushing Or Bearing Bearing
Connector Wire Length 7.87 in (200mm)
Current Draw Idle 10.2mA @ 6.0V
Current Draw Stall 4900mA @ 6.0V
Gear Type Metal
Material Metal
Maximum Servo Torque 238 oz-in (17.1kg-cm) @ 6V; 292 oz-in (21.0kg-cm) @ 7.4V; 331 oz-in (23.8kg-cm) @ 8.4V
Part Type Electronics
Product Application Surface
Product Height 1.38 in (35.1mm)
Product Length 1.61 in (41mm)
Product Weight 2.8 oz (79.4g)
Product Width 0.82 in (20.8mm)
Programmable No
Servo Operating Voltage 6.0 - 8.4V (HV)
Servo Size Category Standard
Servo Type Digital
Spline Count 23 Teeth
