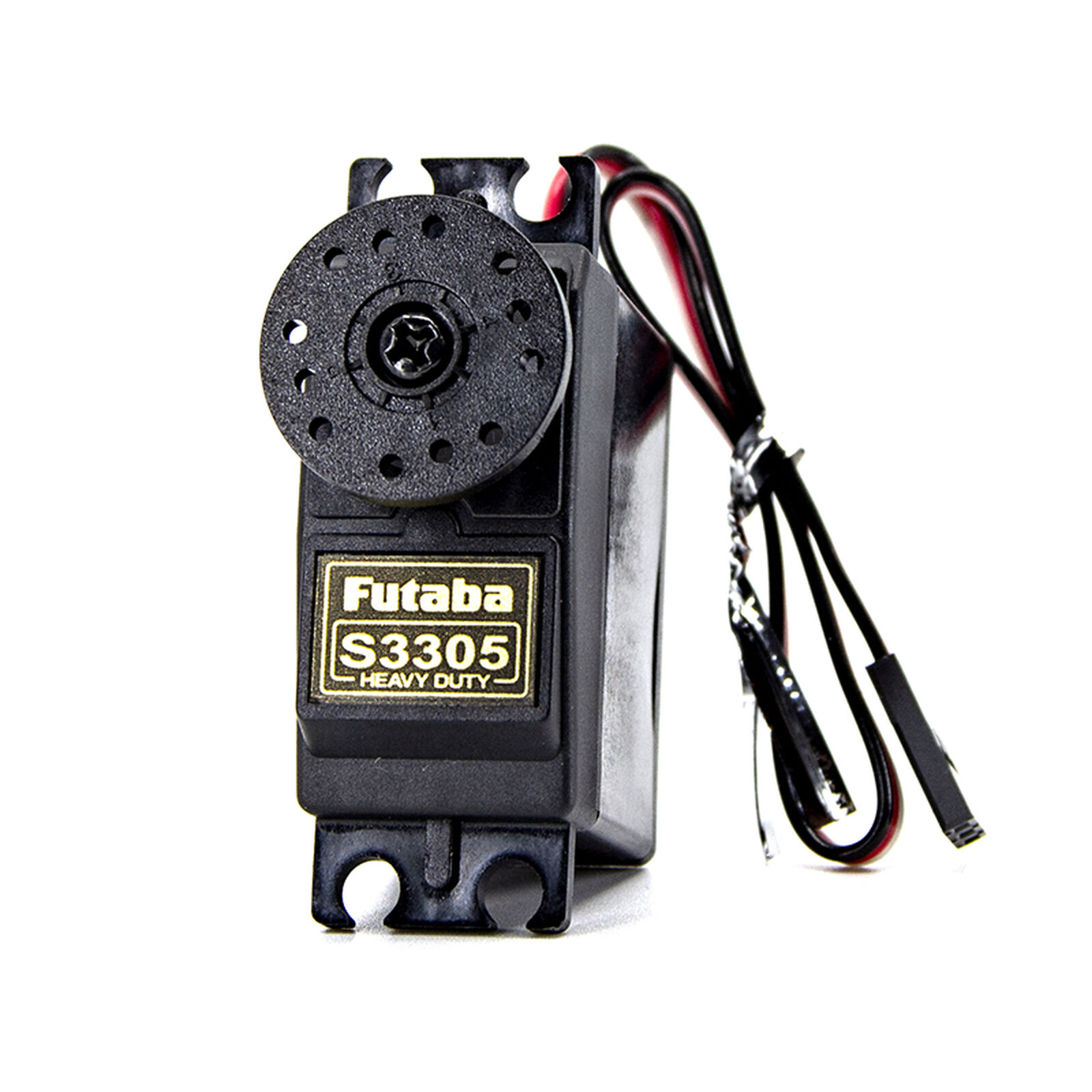

S3305 Standard High-Torque MG Servo

Item No. FUTM0045
S3305 Standard High-Torque MG Servo
Discontinued
Brand Logo
4.8 out of 5 Customer Rating

S3305 Standard High-Torque MG Servo

Item No. FUTM0045
This Item is No Longer Available
Selected Store

Product Details

Key Features
  • Wide usage in cars and boats that require standard size, high torque servos
  • Two ball bearings
  • 3-pole motor
  • Standard Futaba J style connector
  • One year warranty
  • Dimensions: 1.6 x 0.8 x 1.5" (1-9/16 x 16/16 x 1-1/2") (40 x 20 x 38mm)
  • Weight: 1.7oz (1-11/16oz) (47g)
  • Speed: 0.25 sec/60° @ 4.8V 0.20 sec/60° @ 6V
  • Torque: 124 oz-in (8.9 kg-cm) at 6V 99 oz-in (7.1 kg-cm) at 4.8V
icon-box
In The Box
  • One Futaba S3305 High Torque Metal Gear Servo with 1.5" (39mm) diameter horn, 1.2" (32mm) 6 point horn, 4 eyelets, 4 rubber grommets, and 4 mounting screws
