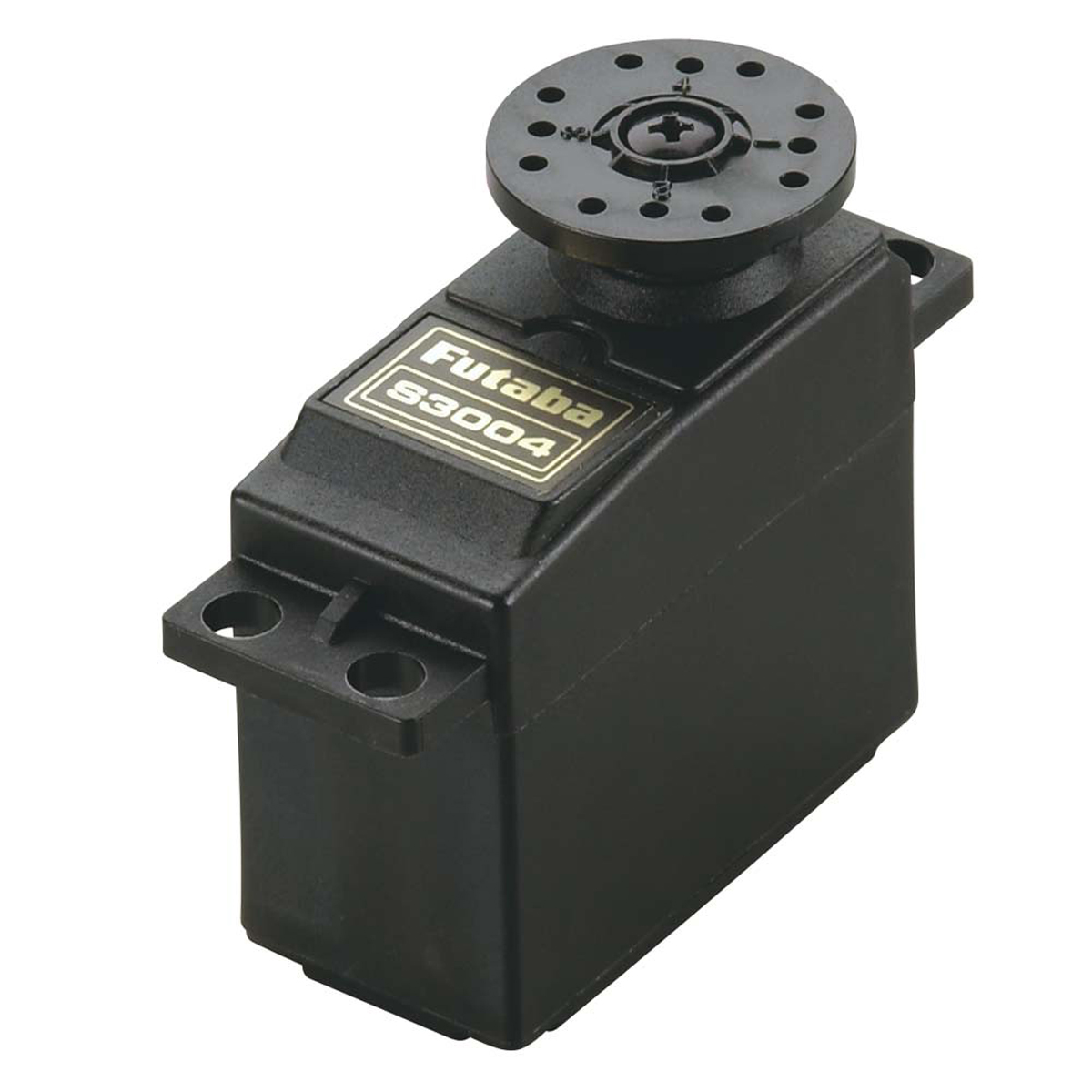

S3004 Standard Ball Bearing Servo

Item No. FUTM0004
S3004 Standard Ball Bearing Servo
Out of Stock
Brand Logo
5 out of 5 Customer Rating

S3004 Standard Ball Bearing Servo

Item No. FUTM0004
$14.99
RC Club points earned on this item shown at checkout.
This item is currently not available
Selected Store
The link to S3004 Standard Ball Bearing Servo has been copied

Product Details

Key Features
  • Single ball bearing on output shaft
  • Precise tight fit throughout the geartrain
  • Being standard size and lightweight, it fits many applications.
  • Three pole motor
  • Nylon gears
  • One year warranty
  • Speed: 0.23 sec/60° @ 4.8V 0.19 sec/60° @ 6.0V
  • Torque: 44 oz-in (3.2 kg-cm) at 4.8V 57 oz-in (4.1 kg-cm) at 6.0V
  • Dimensions: 1.6 x 0.8 x 1.4" (1-9/16 x 13/16 x 1-7/16") (40 x 20 x 36mm)
  • Weight: 1.3 ounce (1-5/16oz) (37 grams)
  • Connector: "J" type with approx. 5" wire
icon-box
In The Box
  • One S3004 standard servo with preinstalled round servo horn(FSH6W)
  • Four brass eyelets
  • Four Black one-piece rectangular rubber grommets
  • Four servo mounting screws
  • Three servo horns (1 lg. round, 1 lg."X" and 1 sm. "x")
