S3003 Standard Servo

Item No. FUTM0031
S3003 Standard Servo
S3003 Standard Servo
S3003 Standard Servo
Backorder
Brand Logo
5 out of 5 Customer Rating

S3003 Standard Servo

Item No. FUTM0031
$10.99
Next Shipment January 2021
Selected Store
The link to S3003 Standard Servo has been copied

You will earn points on this purchase

Product Details

Key Features
  • Speed: 0.23 sec/60° @ 4.8V - 0.19 sec/60° @ 6V
  • Torque: 44 oz-in (3.2 kg-cm) @ 4.8V 57 oz-in (4.1 kg-cm) @ 6V
  • Dimensions: 1.6 x 0.8 x 1.4" (1-9/16 x 13/16 x 1-7/16") (40 x 20 x 36mm)
  • Weight: 1.3oz (1-5/16oz) (37g)
  • Connector: "J" type with approx. 5" lead

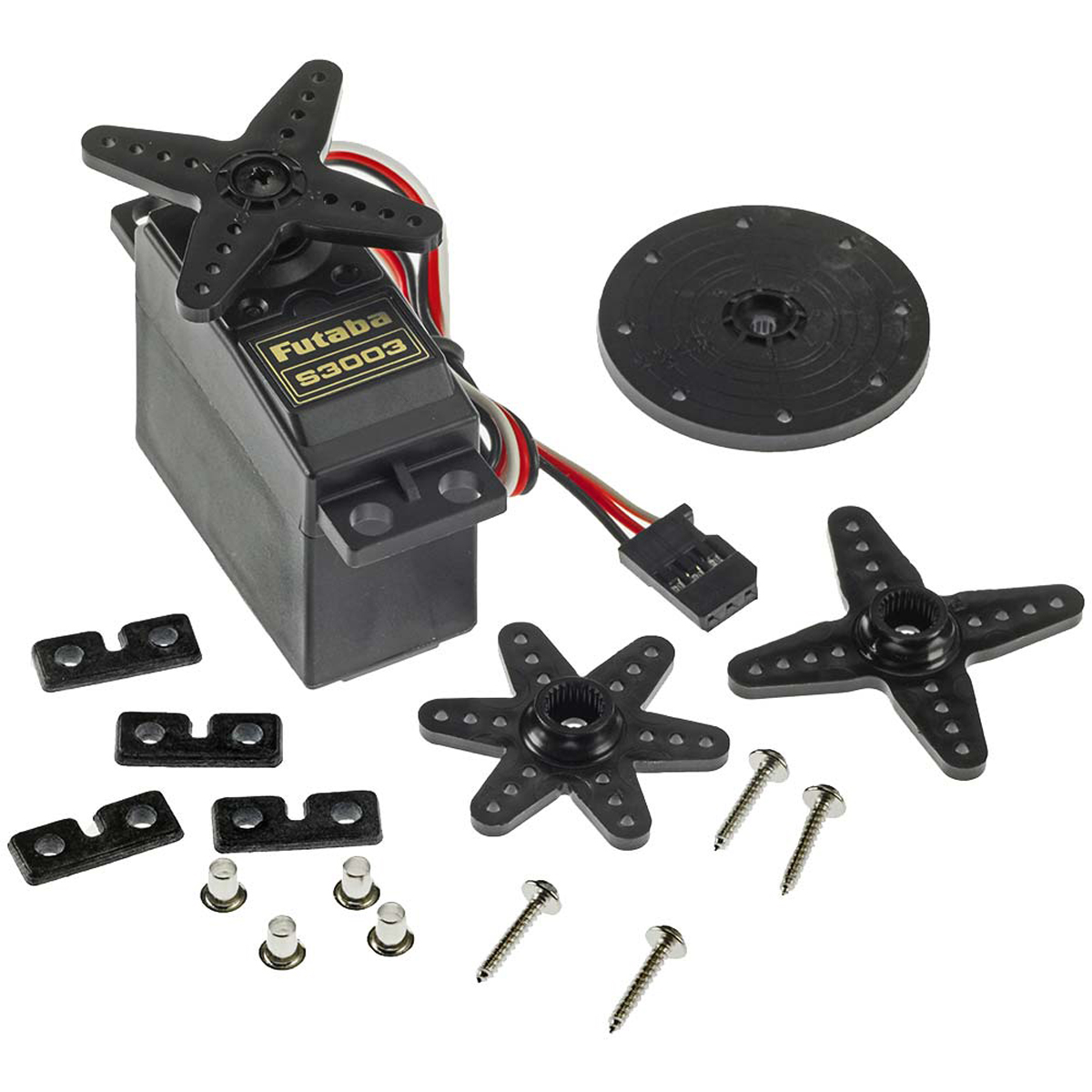

In The Box
  • One S3003 standard servo with preinstalled Xshape servo horn
  • Four brass eyelets
  • Four Black rectangular rubber grommets
  • Four servo mount screws
  • One servo wheel 1-3/8" (35mm) in diameter
  • One X-shape servo arm 1.5" (38mm) across
  • One star shaped arm 1-1/4" (32mm) across
  • Nylon gears
  • One year warranty
$
