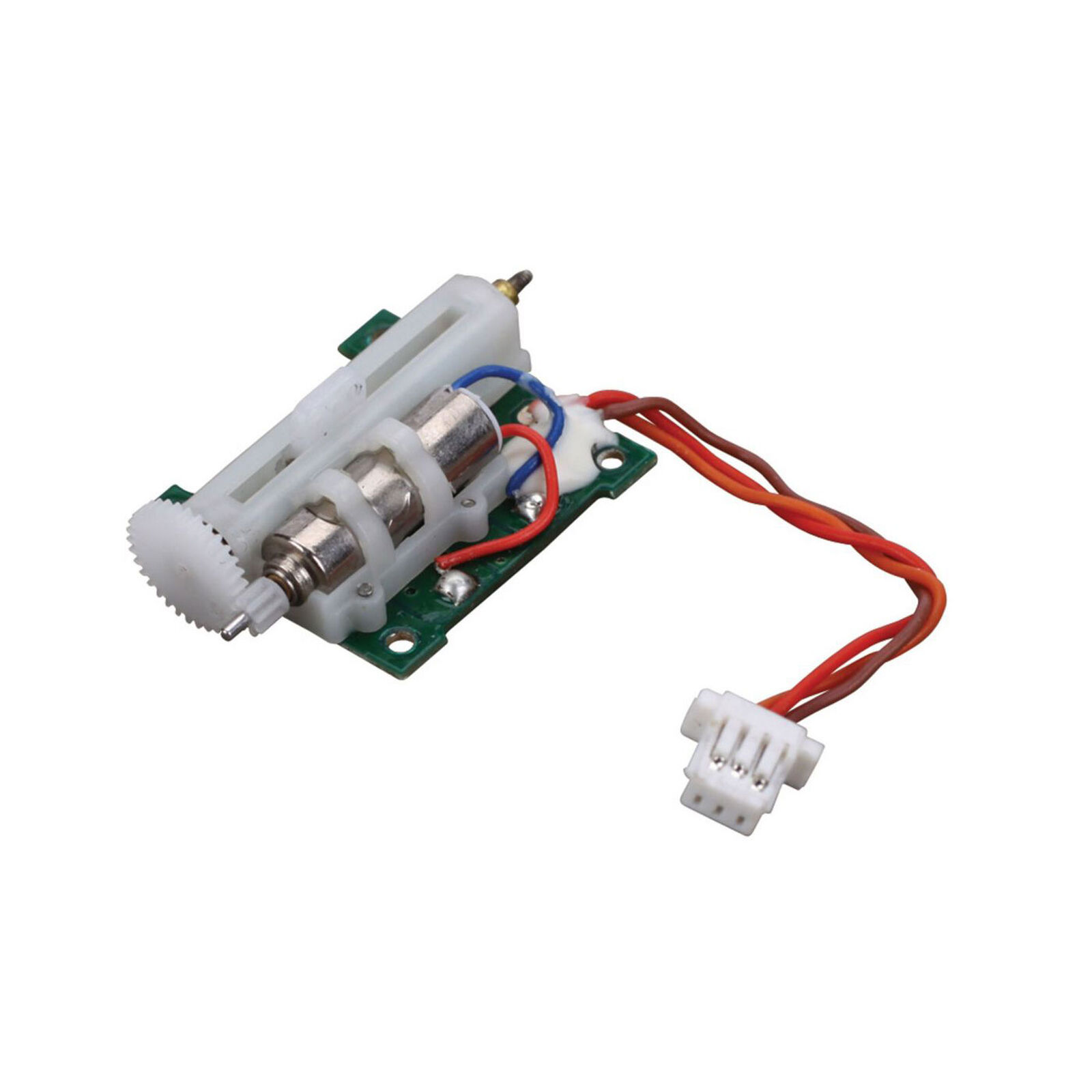

S2000 Ultra-Micro Analog 1.9g Linear Long Throw Aircraft Servo

Item No. SPMAS2000LBB
Brand Logo
4.1 out of 5 Customer Rating

S2000 Ultra-Micro Analog 1.9g Linear Long Throw Aircraft Servo

Item No. SPMAS2000LBB
$19.99
Earn points on this item
icon-notification Important Bulletin
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features

  • Compact footprint
  • JST-SHR connector type
  • Two ball bearings
  • 9.1mm servo throw

Overview

The AS2000LBB is a ball-bearing version of the AS2000L servo. It’s a high performance micro-weight servo used in ultra-micro heli and plane applications and is compatible with the AR6400 series of Spektrum receivers.

Ultra-micro aircraft builders will want the 2000LBB for the better control surface centering and robust action aggressive 3D flight demands.

Detailed Information

Click Here to see Spektrum's Servo Reference Chart

Product Specifications

Programmable Yes
Servo Size Category Ultra-Micro
Connector Type JST-SHR
Servo Operating Voltage 3.2 - 4.2V
Bushing Or Bearing Bearing
Gear Type Plastic
Maximum Servo Speed 0.14 sec
Maximum Servo Torque 2.8 oz (79.4 g) forc
Max Servo Torque Less than 20 oz-in
Servo Type Analog
