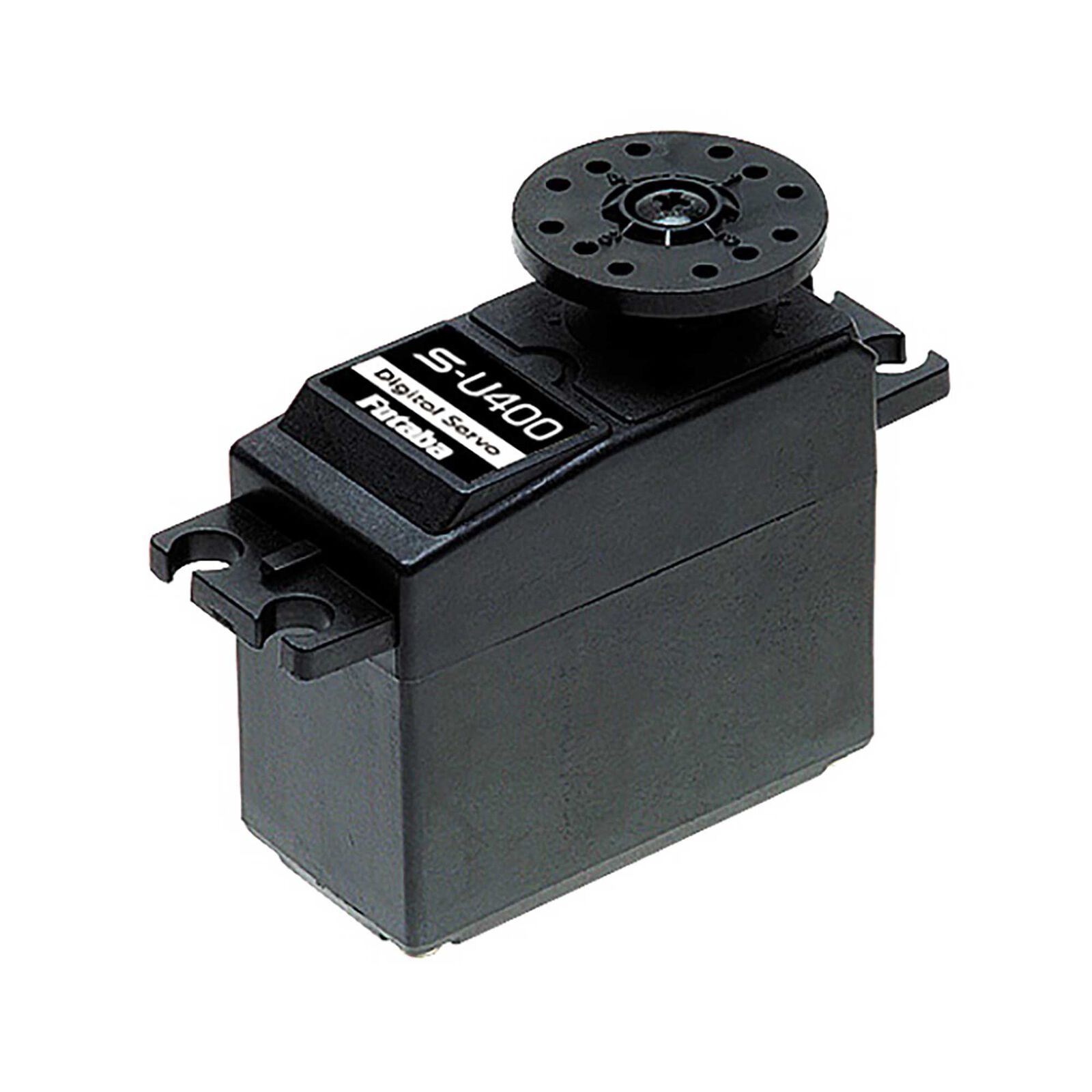

S-U400 Standard Servo

Item No. FUT011023333
Brand Logo
3.8 out of 5 Customer Rating

S-U400 Standard Servo

Item No. FUT011023333
$29.99
Earn points on this item
In Stock
Selected Store

Product Details

Features

  • SPEED: 0.14 sec/60°at 6.6V, 0.13 sec/60° at 7.4V
  • TORQUE: 98.6 oz/in at 6.6V, 109.7 oz/in at 7.4V
  • SIZE: 1.6 in x 0.8 in x 1.4 in
  • WEIGHT: 1.38 oz
  • Composite Gearing
  • 6mm/25T Spline
  • 3Pole Cored Motor

Product Specifications

Gear Type Composite
Servo Speed 0.100-0.149 sec
Maximum Servo Torque 100-199 oz-in
Product Height 1.6" (41 mm)
Product Length 0.8" (20 mm)
Product Weight 1.38oz
Product Width 1.5" (38 mm)
Programmable Yes
Servo Operating Voltage 6.0 - 7.4V (HV)
Servo Size Category Standard
Spline Count 25 - Tooth
Water-Resistant No
