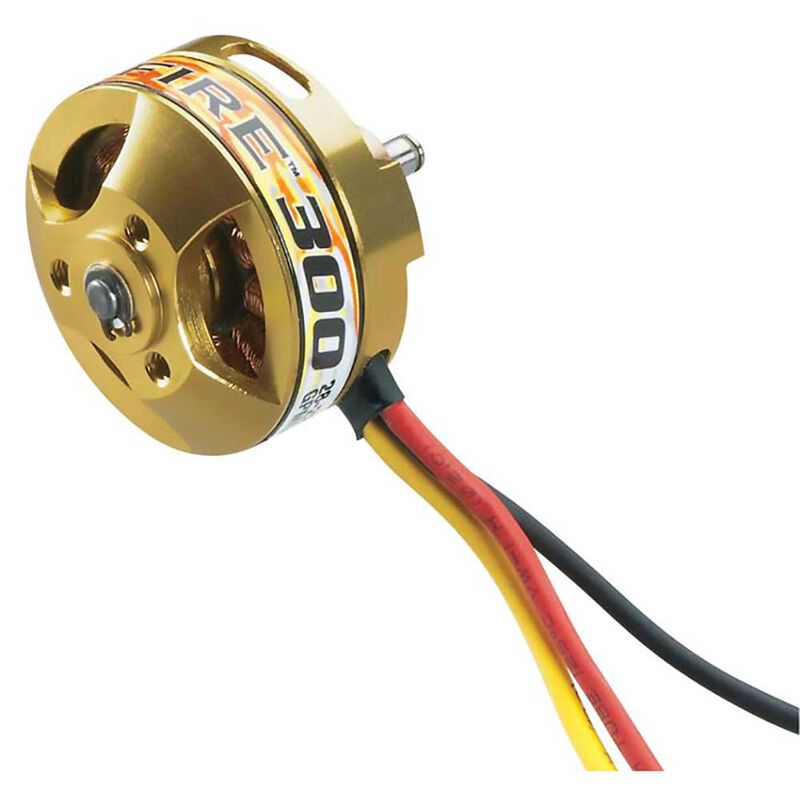

Rimfire 300 28-22-1380 Outrunner Brushless

Item No. GPMG4505
Discontinued
Brand Logo
4.6 out of 5 Customer Rating

Rimfire 300 28-22-1380 Outrunner Brushless

Item No. GPMG4505
This Item is No Longer Available
Selected Store

Product Details

Features

  • Engineered for explosive acceleration and maximum torque.
  • The lightened aluminum motor can houses high-torque, "rare-earth" Neodymium magnets.
  • Better cooling means 50% more power than many others outrunners of similar size.
  • Dependable and virtually maintenance-free; no comms or brushes to worry about, and bearings are double-shielded.
  • All include hardware, gold-plated bullet connectors (male connectors are installed; female connectors are included) and a motor mount.

Overview

The combination of superior performance and a competitive price makes these power plants a great value. Plus, the wide selection means there's a RimFire motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as glow-to-electric conversions. Equip your airplane with a RimFire, and watch it reach new heights!

Product Specifications

Connector Type 2mm Bullet
Product Length 0.87" (22 mm)
Outer Diameter 1.1" (28 mm)
Maximum Burst Current 13.5A
Maximum Continuous Current 9A
Motor Type Brushless
Adjustable Timing No
Motor Design Outrunner
Shaft Diameter 0.12" (3 mm)
Number of Poles 14
Product Weight .95oz (27g)
Recommended Prop Range 8x4 - 10x4.5 slow flyer
Input Voltage 7.4-11.1V (2-3S LiPo)
RPM/Volt (Kv) 1380 rpm/V
Shaft Length 0.47" (12 mm)
