RimFire 200 18-06-2400 Outrunner Brushless

Item No. GPMG4455
RimFire 200 18-06-2400 Outrunner Brushless
Backorder
Brand Logo
5 out of 5 Customer Rating

RimFire 200 18-06-2400 Outrunner Brushless

Item No. GPMG4455
$41.99
RC Club points earned on this item shown at checkout.
Back Order
Selected Store
The link to RimFire 200 18-06-2400 Outrunner Brushless has been copied

Product Details

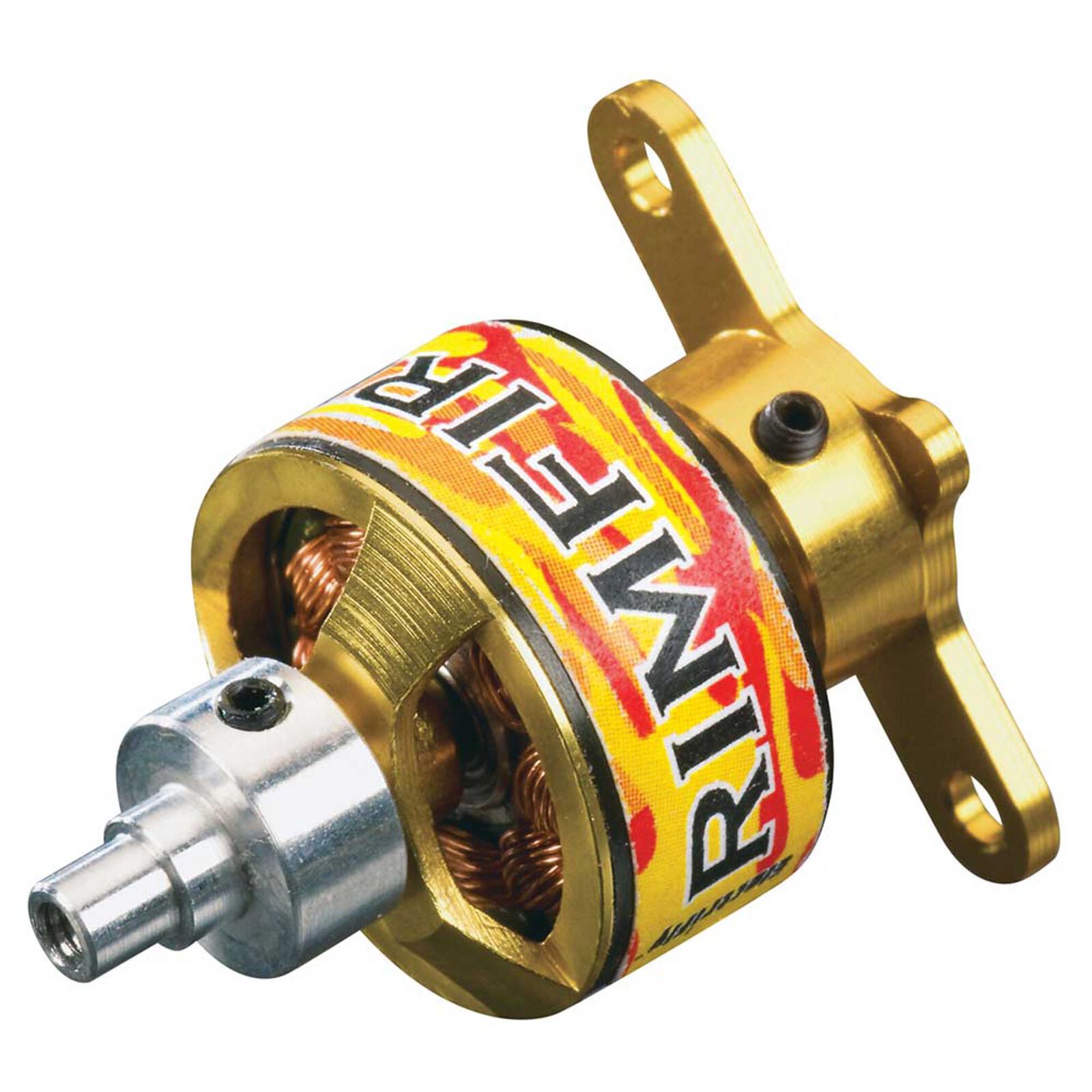

This is the ElectriFly Rimfire 200 18-06-2400 Outrunner 14 Pole Brushless Motor.
Key Features
  • Ideal for use with 6A Brushless ESC's, 7.4v LiPo packs and 7x3.5 GWS electric props
  • Lightened aluminum motor can with high-torque, rare-earth Neodymium magnets
  • Double-shielded ball bearings
  • Maintenance free-no commutators or brushes to change
icon-box
In The Box
  • (1) Rimfire 200 18-06-2400 Motor
  • (1) Motor Mount
  • (1) Convertible prop adapter/prop saver
  • (1) 3-pin female connector with heat-shrink tubing
  • (1) Pre-installed male 3-pin micro connector
  • (1) O-Ring and hex wrench
Quick Links
icon-pdf-download Manuals & Support

Product Specifications

Idle Current (Io) 0.25A
Input Voltage 7.4V
Recommended Speed Control 6A
RPM/Volt (Kv) 2400/7.4V
Shaft Length 0.20" (5mm)
Application Airplane
Number of Poles 14
Product Weight 0.38oz (10.7g) motor only, 0.44oz (12.4g) motor, mount & prop adapter
Shaft Diameter 0.079" (2.0mm)
Battery Input Lead 1.57" (40mm)
Outer Diameter 0.71 in (18mm)
Adjustable Timing No
Bushing Or Bearing Bearing
Motor Design Outrunner
Maximum Burst Current 6.3A
Maximum Continuous Current 4.9A
Motor Type Brushless
Connector Type Open Ends
Product Length 0.74" (19 mm)
