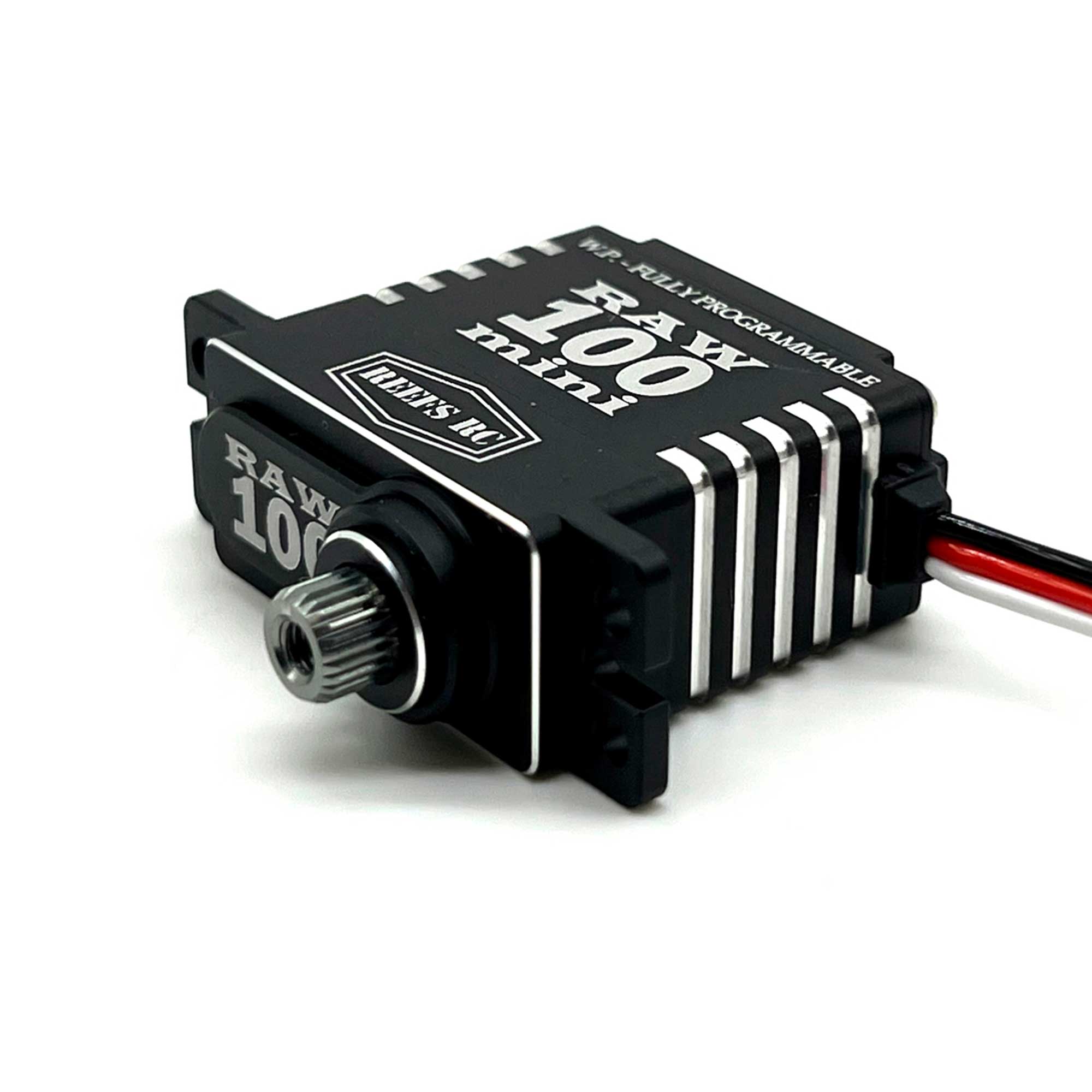

RAW 100 Mini Digital Metal Gear Waterproof Programmable Servo, Black

Item No. SEHREEFS135
Brand Logo
3.1 out of 5 Customer Rating

RAW 100 Mini Digital Metal Gear Waterproof Programmable Servo, Black

Item No. SEHREEFS135
$84.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features
  • High Torque High Speed
  • Mini Coreless Servo
  • SUBMARINE WATERPROOF
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • REEFS LINK required for Programming
RAW 100 Mini Digital Metal Gear Waterproof Programmable Servo, Black

Product Specifications

Application 1/14 - 1/16 Cars, Trucks
Bearing Dual Ball Bearing
Bushing Or Bearing Bearing
Connector Type Universal
Current Draw Idle 180mA @ 4.8V, 200mA @ 6.0V, 230mA @ 7.4V, 260mA @ 8.4V
Current Draw Stall 1.2A @ 4.8V, 1.4A @ 6.0V, 1.5A @ 7.4V, 1.8A @ 8.4V
Deadband 2µs
Gear Type Metal
Maximum Servo Speed 0.10 sec/60 deg @ 7.4V, 0.08 sec/60 deg @ 8.4V
Maximum Servo Torque 95oz/in @ 7.4V, 103oz/in @ 8.4V
Product Height 1.14" (29 mm)
Product Length 1.16" (29 mm)
Product Weight 1.05oz (30g)
Product Width 0.55" (14 mm)
Programmable Yes
Servo Operating Voltage 6.0 - 8.4V (HV)
Servo Size Category Mini
Servo Type Digital
Spline Count 25 - Tooth
Water-Resistant Yes
