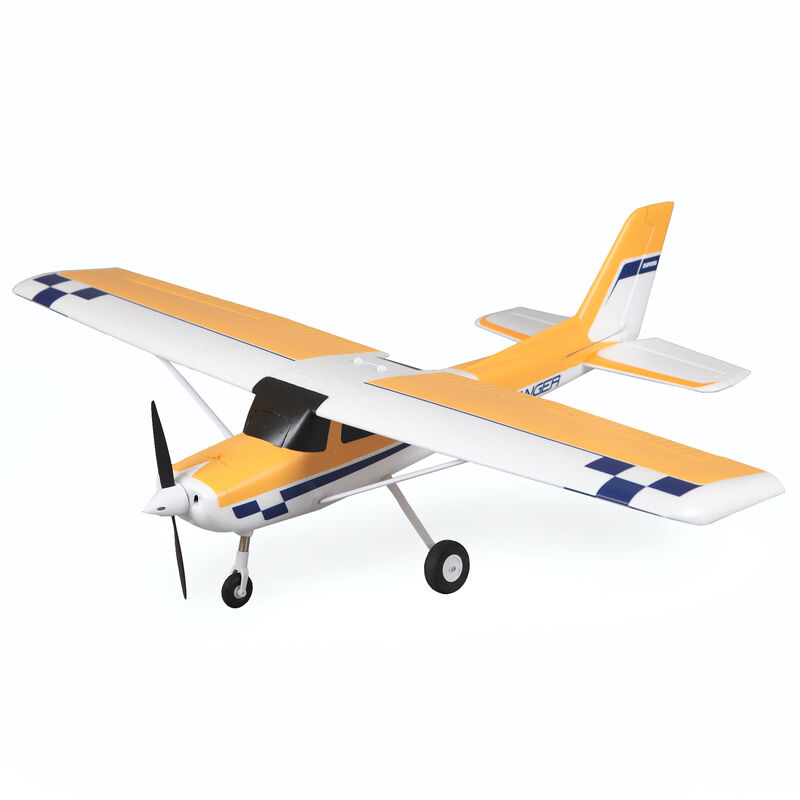

Ranger 1220mm EP PNP with Floats

Item No. FMM111PF
Brand Logo
5 out of 5 Customer Rating

Ranger 1220mm EP PNP with Floats

Item No. FMM111PF
This Item is No Longer Available
Selected Store
Ranger 1220mm  PNP with Floats and Reflex
Ranger 1220mm PNP with Floats and Reflex
View Alternate Product Details

Product Details

Key Features

  • High-spec power system: 3136-1200Kv motor, Predator 20A ESC
  • Two landing gear types included - tricycle and floats!
  • High strength, lightweight metal landing gear for all-terrain operations.
  • Screw-together and twist-lock assembly, completed in 3-10 minutes
  • 10-15 minute flight times (with recommended battery)
  • One piece horizontal stabilizer for precise flight characteristics
Needed to Complete
  • 4+ Channel Radio Transmitter and Receiver
  • 3+ Cell 11.1V 1300mAh 25C LiPo Battery
  • Appropriate Balancing LiPo Charger
What's in the Box?
  • (1) Ranger 1220mm Electric Plane with:
    • (5) 9g Servos (installed)
    • (1) Predator 20A ESC (installed)
    • (1) 3136-1200Kv motor (installed)
  • (1) High Strength Metal Landing Gear
  • (1) Float Set with Integrated Rudder
  • (1) Product Manual


As the newest member of the FMS multi-purpose aircraft lineup, the 1220mm Ranger retains all of the fantastic features that pilots have come to expect from FMS- stable flight characteristics, easy to assemble airframe and realistic, general-aviation inspired design.

Built with ultralight EPO foam, the large, high-winged airframe configuration gives the Ranger low wing-loading and extraordinary amounts of lift, even at slow speeds. Robust plastic struts give extra strength to the wings during aerobatic maneuvers and the patented high-strength tricycle landing gear makes ground handling a breeze.

A great aircraft is nothing without a great, dependable power system- FMS has equipped the ranger with a 3136-1200Kv outrunner motor with 20A Predator ESC, which allows the ranger to climb almost vertically on demand!

In the box, the Ranger comes with two sets of landing gears- a high-strength metal landing gear for ground operations and a pair of floats with an integrated rudder for water operations.

Designed with a yellow and white high-visibility color scheme, the ranger can always be easily orientated even in gloomy, overcast weather.

Like the Super-EZ and the Kingfisher, the Ranger is designed with ease of assembly in mind. Requiring only 6 (wheeled landing gear) or 10 (floats) screws to completely assemble, the longest wait time is the time it takes to charge the battery!

Product Specifications

Power Type Electric
Servos Included
Trim Scheme Colors Yellow and White
Wingspan 48" (1219 mm)
Motor Size 3136-1200Kv
Product Length 37.3" (947 mm)
Landing Gear Optional landing gear is included
Speed Control Included
Wing Area 393.7 in sq (25.4dm sq)
Receiver Sold Separately
Minimum Required Radio 4-Channel system (sold separately)
CG (Center of Gravity) 50-60mm(From Leading Edge)
Completion Level Plug-N-Play
Propeller Size 10 x 5
Recommended Motor Battery 11.1V 3S 1300mAh 25C LiPo (sold separately)
Wing Loading 0.11oz/in sq (39.4g/dm sq)
Approximate Assembly Time Less than 1 Hour
Approximate Flight Time 10-15 minutes
Flaps No
Retracts No
