Product Details

The Intelligent Freewheeling Technology enables the ESC to be able to achieve higher driving efficiency at a lower operating temperature.
icon-box
In The Box
  • (1) QuickRun WP 10BL60 G2 Electronic Speed Control

Features

  • The intelligent freewheeling technology enables the ESC to achieve higher driving efficiency at lower operating temperatures, improving stability and reliability.
  • The new QuicRun WP 10BL60 ESC is more compact than its predecessor, reducing length by 2.5mm and width by 1.5mm, enhancing layout and wiring convenience.
  • The heat sink's mesh design efficiently cools the ESC. Copper thermal bars on each phase enhance cooling, while a fan ensures optimal operating temperatures.
  • A mesh-type heat sink design rapidly conducts internal heat to the heat sink. Copper thermal bars on the power board further aid heat dissipation. A fan maintains efficient cooling conditions.
  • With an IP67 protection level, the ESC excels in various environments, including rain, dust, and sand, thanks to its excellent waterproof and dust-proof features.
  • Supporting three programming methods—Multi-function LCD PRO programming box, LED programming box, and SET key—the ESC allows users to easily adjust parameters according to their preferences.
  • Designed for entry-level users, this high-quality product is simple to use and install, offering great value and convenience.
Freewheeling Technology
Freewheeling Technology

The intelligent freewheeling technology enables the ESC to be able to acheive higher driving efficiency at a lower operating temperature. It further improves on the stability and reliability of the ESC.

Small and Compact
Small and Compact

The QuicRun WP 10BL60 ESC is more compact than its predecessor. It is shorter in length by 0.09" (2.5mm) and the width is reduced by 0.05" (1.5mm). Overall, it makes the layout and wiring convenient.

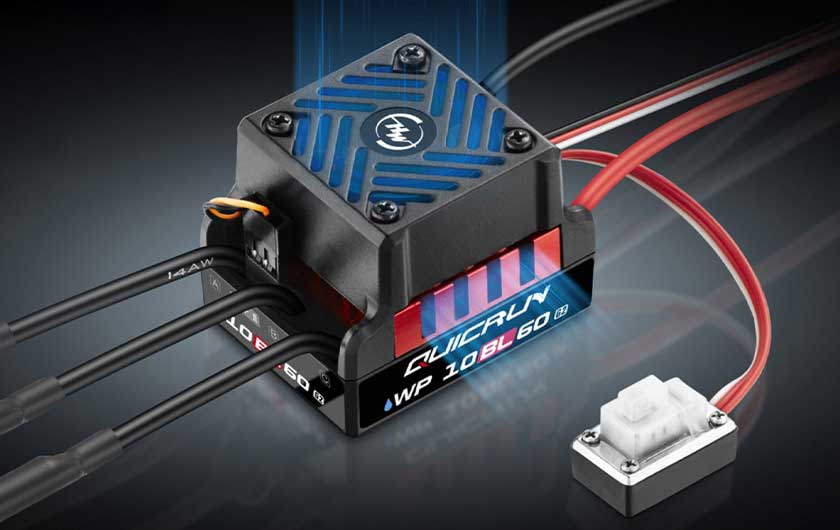

Efficient Cooling System
Efficient Cooling System

The mesh design of the heat sink is used for efficient cooling of the ESC. Each of the phases adapt a copper thermal bar for better cooling. The heat sink designed with the fan ensures the ESC is always in the best operating temperatures.

Capacitor Overheating Protection
Capacitor Overheating Protection

The capacitor overheating protection function will effectively prevent exploding capacitors due to overload usage. It prevents users from completely damaging the ESC.

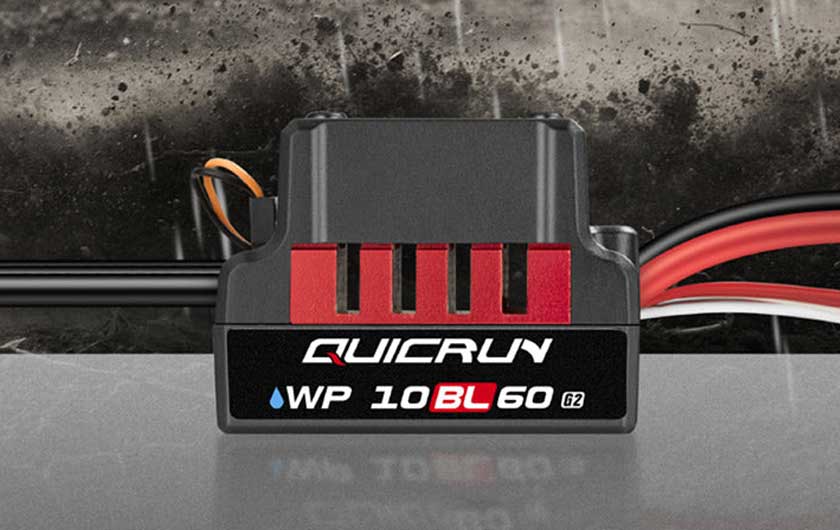

All-Weather Operation
All-Weather Operation

The ESC has a water resistance rating of IP67. It is able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.

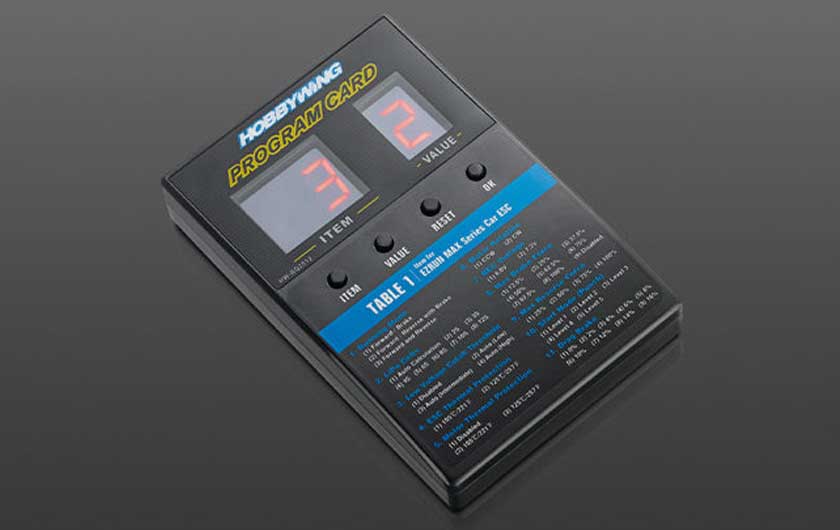

Programming Methods
Programming Methods

Multiple programming/ tuning methods are supported. Works with the Multifunction LCD programming Box Pro, the Multifunction LCD Programming Box (Non Pro), the LED Programming Box, and has an on board button/ LED tuning.

Great Investment
Great Investment

Designed specifically for entry-level users. Simple to use high quality product. Easy to install and go!

Product Specifications

BEC Yes
BEC Continous Current 3A
BEC Voltage 6V
Forward Yes
Input Voltage 2S - 3S
Manufacturer # 30107300
Maximum Burst Current 360A
Maximum Continuous Current 60A
Motor Type Brushless

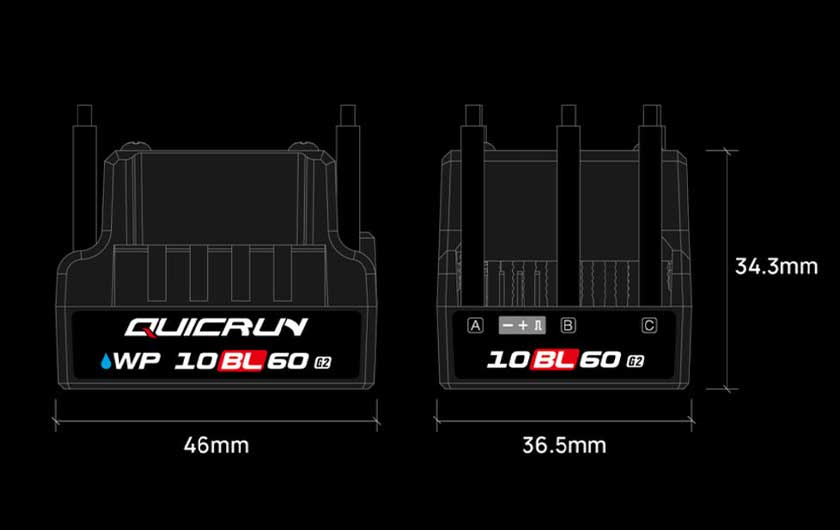

Product Height 1.35" (34 mm)
Product Length 1.81" (46 mm)
Product Weight 2.91
Product Width 1.43" (36 mm)
Programmable Yes
Reverse Yes
Sensored Yes
