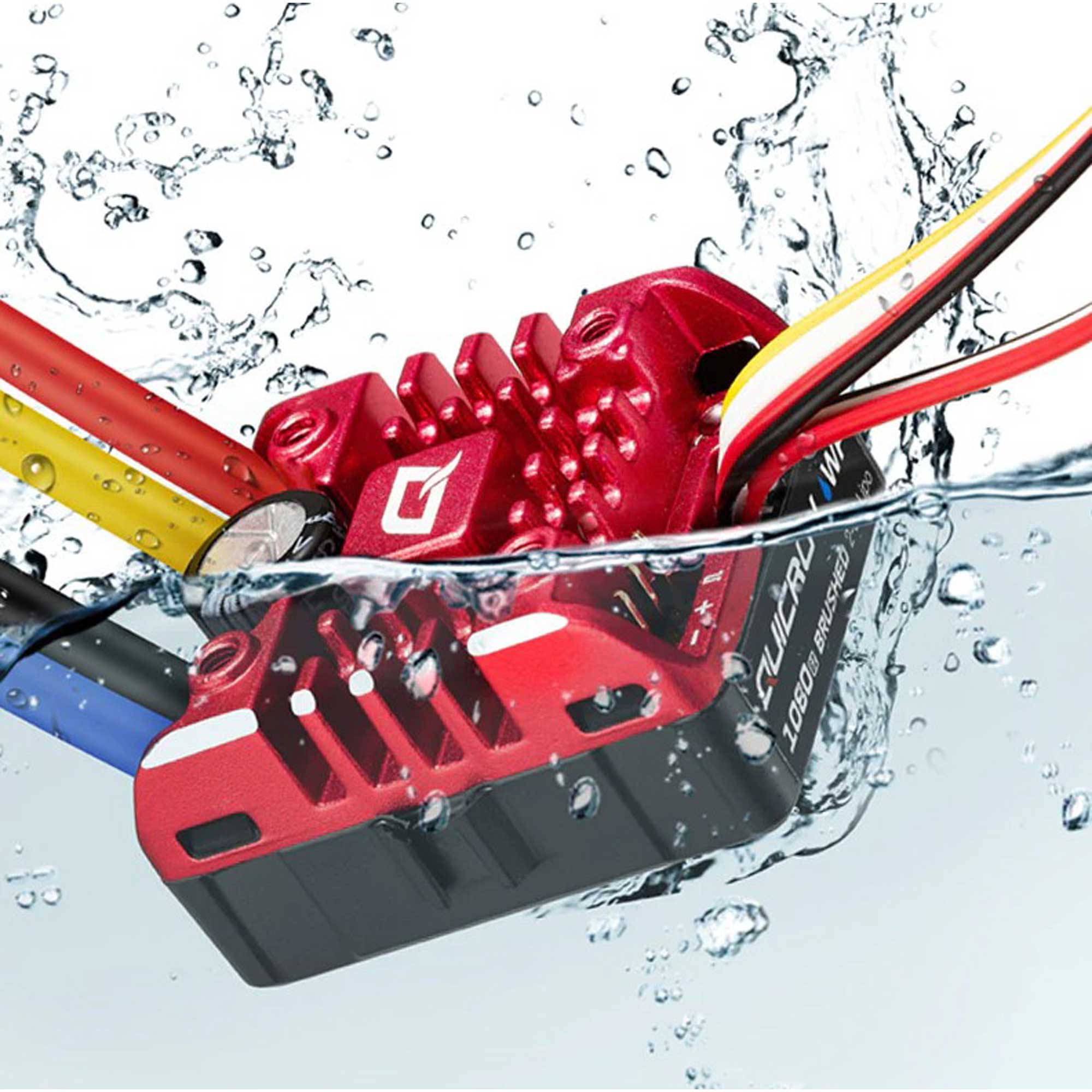

QuicRun WP 1080 Brushed G2 ESC

Item No. HWI30120202
Brand Logo
5 out of 5 Customer Rating

QuicRun WP 1080 Brushed G2 ESC

Item No. HWI30120202
$43.99
RC Club points earned on this item shown at checkout.
Select Options
QUICRUN Brushed 540 Motor, 40T
HWI30120202 HWI30404314
QUICRUN Brushed 540 Motor, 40T
Pre-Order
$16.99
QUICRUN Brushed 555 Motor, 11T
HWI30120202 HWI30404315
QUICRUN Brushed 555 Motor, 11T
In Stock
$21.99
QUICRUN Brushed 555 Motor, 13T
HWI30120202 HWI30404316
QUICRUN Brushed 555 Motor, 13T
Next Shipment June 2024
$21.99
0 Item Selected Items Selected
OTA Smartphone ESC Module Programmer
HWI30120202 HWI30850400
OTA Smartphone ESC Module Programmer
Back Order
$62.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features
  • New Aluminum Case
  • Real Car Mode
  • Over-Heating Protection
  • Electronic Switch
  • Low Voltage Cut-Off Protection
icon-box
In The Box
  • (1) QuicRun 1080 G2 ESC
QuicRun WP 1080 Brushed G2 ESC

Features

  • Fully Water-proof and dust-proof, suitable for all-weather races.
  • Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV).
  • Real-Time Adjustment of Drag Braking Force.
  • PWM Frequency: 1K/2K/4K/8K/16K Adjustable.
  • Drag brake rate in 9 levels (adjustable).
  • Great current endurance capability.
  • Automatic throttle range calibration, easy to use.
  • Throttle signal loss protection, and much more.
  • Small in size, with a built-in capacitor module.
  • In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
  • 15 programmable parameter items.
  • Freewheeling (DEO) capability.
  • Aluminum case for great heat dissipation.
  • Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V.
  • Low voltage cut-off protection for battery.
  • Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America.
The First
The First "Real Car Mode"

The direction of the motor is switchable in real time by using the idle channel on the transmitter. Pull the trigger for "forward" Push the trigger for "brake" Pull the trigger with the "reverse channel" on will give you "reverse" (Requires an open channel on the receiver). This new feature will provide the user with a unique experience unlike any other.



Four Running Modes Available
Four Running Modes Available

In addition to the “Real car running mode”, the other operating modes such as “Forward with brakes”, “Forward, reverse with brakes”, and “Forward and reverse” are also available.



Temperature Control Upgrade
Temperature Control Upgrade

The new design reduces operating temperatures of the ESC by about 15 degrees improving reliability. The ESC also has a fan mount to meet additional cooling needs.



BEC Upgrade
BEC Upgrade

The BEC Upgrade includes maximum output to 6A and provides 6V/7.4V/8.4V output options to support most of the servos on the market.



Real-Time Adjustment Of Drag Braking Force
Real-Time Adjustment Of Drag Braking Force

Adjust the drag brake force in real time! With the Drag brake Force Signal connected to an open channel on the receiver, users can adjust the drag brake force on the fly without the need to connect the Programmer. (Requires open channel on receiver).



Multiple, Easy To Set Parameters
Multiple, Easy To Set Parameters

15 Programmable Items let drivers easily tune their vehicle with the LED Programming Box connected to the programming port.

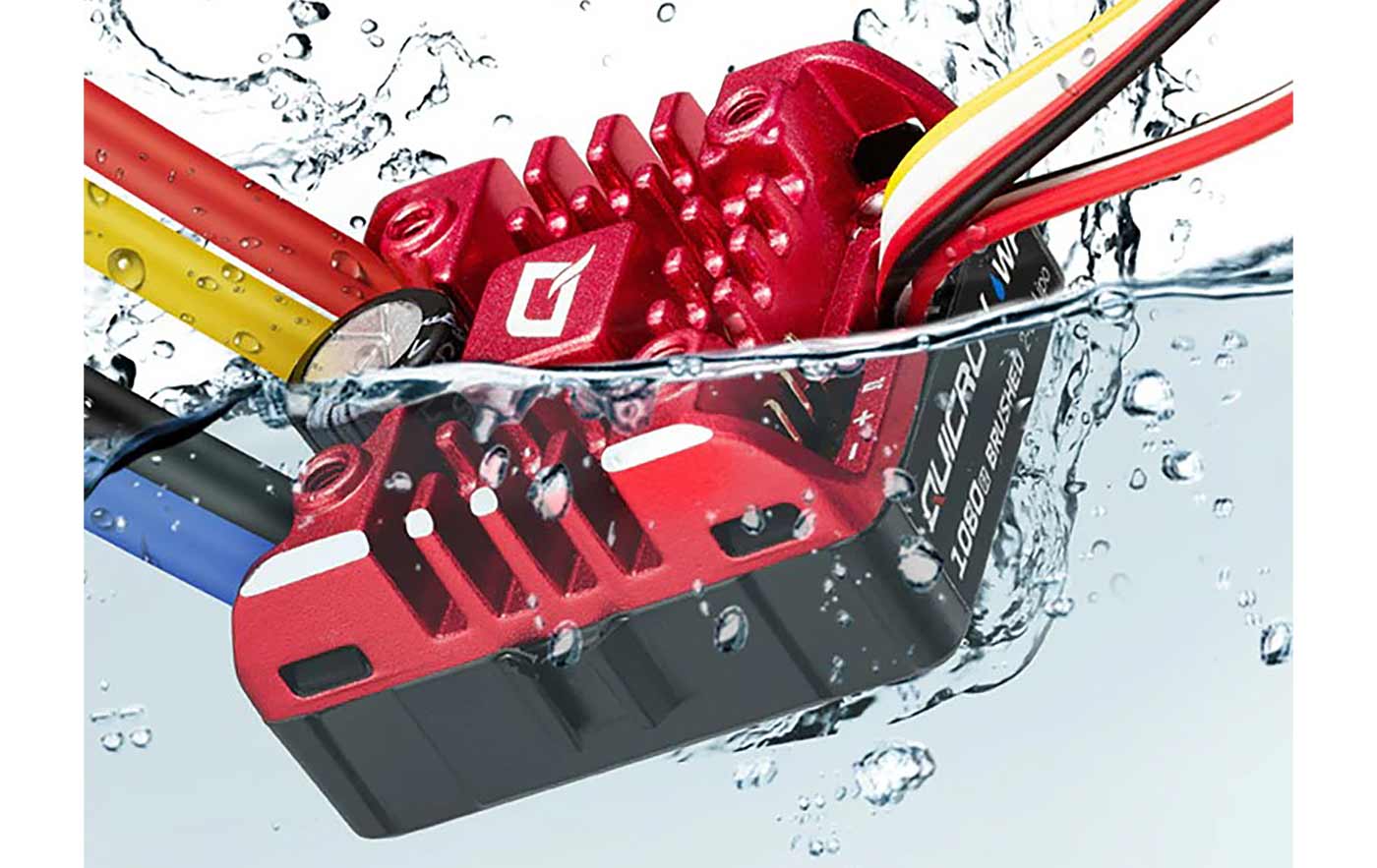

IP67 Protection
IP67 Protection

IP67 Standard for being waterproof and dust-proof for various weather conditions, and driving surfaces.



Product Specifications

BEC Yes
BEC Voltage 6V/7.4V/8.4V @ 4A (switch-mode)
Input Voltage 2-3S LiPo or 5-9S NiMH
Motor Limit Brushed Motors 540/550 Series
Product Height 0.7244094" (18 mm)
Connector Type XT-60
Product Length 1.464567" (37 mm)
Product Width 1.255906" (32 mm)
Programmable Yes
Low-Voltage Cutoff Programmable Yes
Overload Protection Yes
Product Weight 70.2g (2.48 oz)
Water-Resistant Yes
Forward Yes
Reverse Yes
Wire Gauge 14 AWG
Maximum Burst Current 400A
Maximum Continuous Current 80A
Motor Type Brushed
Speed Control Included
Amperage 80A
