QuicRun 1080 G2 Combo ESC with 555 Motor, 13T

Item No. HWI38020352
Brand Logo
4 out of 5 Customer Rating

QuicRun 1080 G2 Combo ESC with 555 Motor, 13T

Item No. HWI38020352
$62.99
RC Club points earned on this item shown at checkout.
Select Options
OTA Smartphone ESC Module Programmer
HWI38020352 HWI30850400
OTA Smartphone ESC Module Programmer
In Stock
$62.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features
  • New Aluminum Case
  • Over-Heating Protection
  • 540 or 555 Can-Size
  • Adjustable Mechanical Timing
  • Outstanding Response And Control
icon-box
In The Box
  • (1) QuicRun 1080 G2 ESC
  • (1) 13T 555 Motor
QuicRun 1080 G2 Combo ESC with 555 Motor, 13T

Features

  • Fully Water-proof and dust-proof, suitable for all-weather races.
  • Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV).
  • Real-Time Adjustment of Drag Braking Force.
  • PWM Frequency: 1K/2K/4K/8K/16K Adjustable.
  • Drag brake rate in 9 levels (adjustable).
  • Great current endurance capability.
  • Automatic throttle range calibration, easy to use.
  • Throttle signal loss protection, and much more.
  • Small in size, with a built-in capacitor module.
  • In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
  • 15 programmable parameter items.
  • Freewheeling (DEO) capability.
  • Aluminum case for great heat dissipation.
  • Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V.
  • Low voltage cut-off protection for battery.
  • Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America.
The First
The First "Real Car Mode"

The direction of the motor is switchable in real time by using the idle channel on the transmitter. Pull the trigger for "forward" Push the trigger for "brake" Pull the trigger with the "reverse channel" on will give you "reverse" (Requires an open channel on the receiver). This new feature will provide the user with a unique experience unlike any other.



Four Running Modes Available
Four Running Modes Available

In addition to the “Real car running mode”, the other operating modes such as “Forward with brakes”, “Forward, reverse with brakes”, and “Forward and reverse” are also available.



Temperature Control Upgrade
Temperature Control Upgrade

The new design reduces operating temperatures of the ESC by about 15 degrees improving reliability. The ESC also has a fan mount to meet additional cooling needs.



BEC Upgrade
BEC Upgrade

The BEC Upgrade includes maximum output to 6A and provides 6V/7.4V/8.4V output options to support most of the servos on the market.



Real-Time Adjustment Of Drag Braking Force
Real-Time Adjustment Of Drag Braking Force

Adjust the drag brake force in real time! With the Drag brake Force Signal connected to an open channel on the receiver, users can adjust the drag brake force on the fly without the need to connect the Programmer. (Requires open channel on receiver).



Multiple, Easy To Set Parameters
Multiple, Easy To Set Parameters

15 Programmable Items let drivers easily tune their vehicle with the LED Programming Box connected to the programming port.

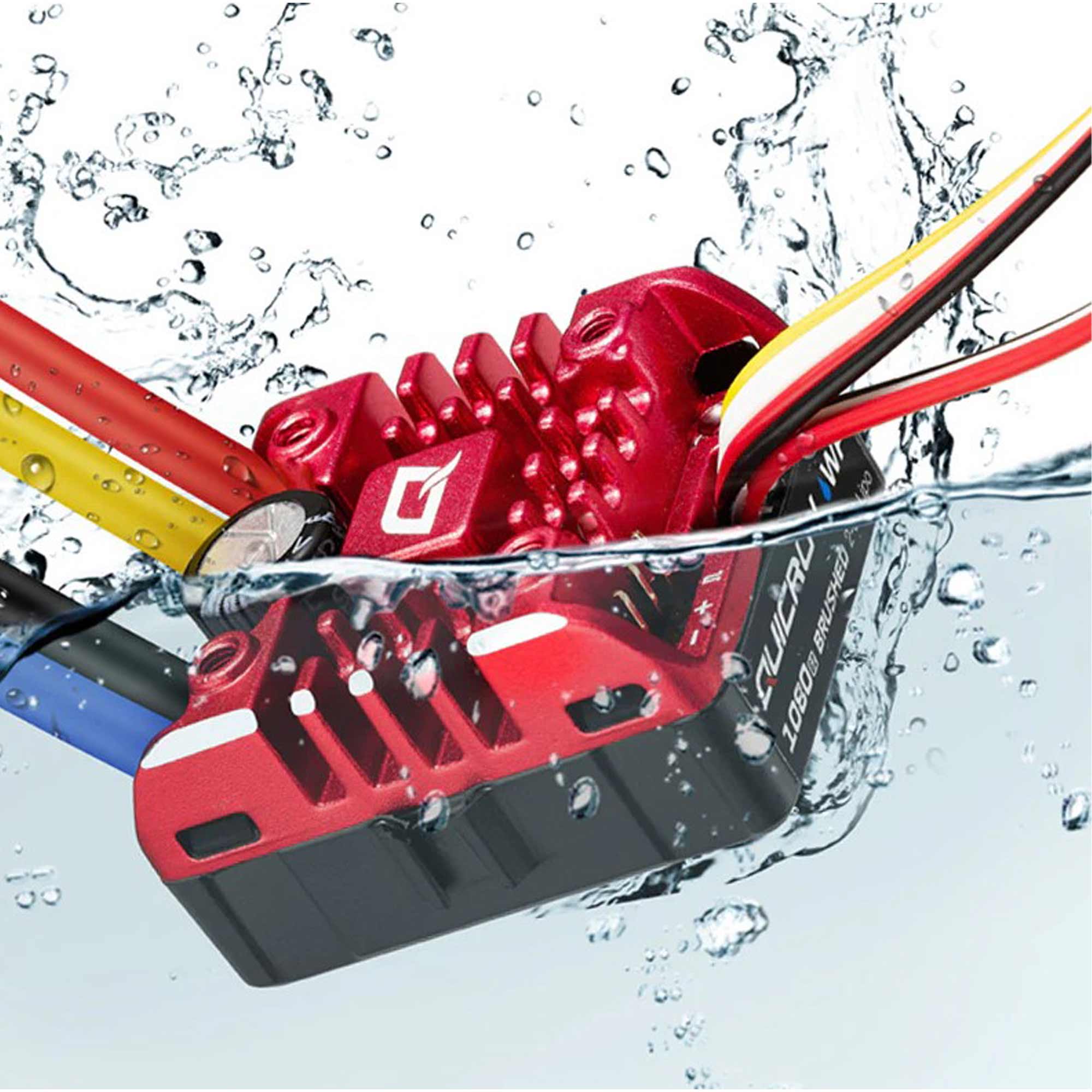

IP67 Protection
IP67 Protection

IP67 Standard for being waterproof and dust-proof for various weather conditions, and driving surfaces.

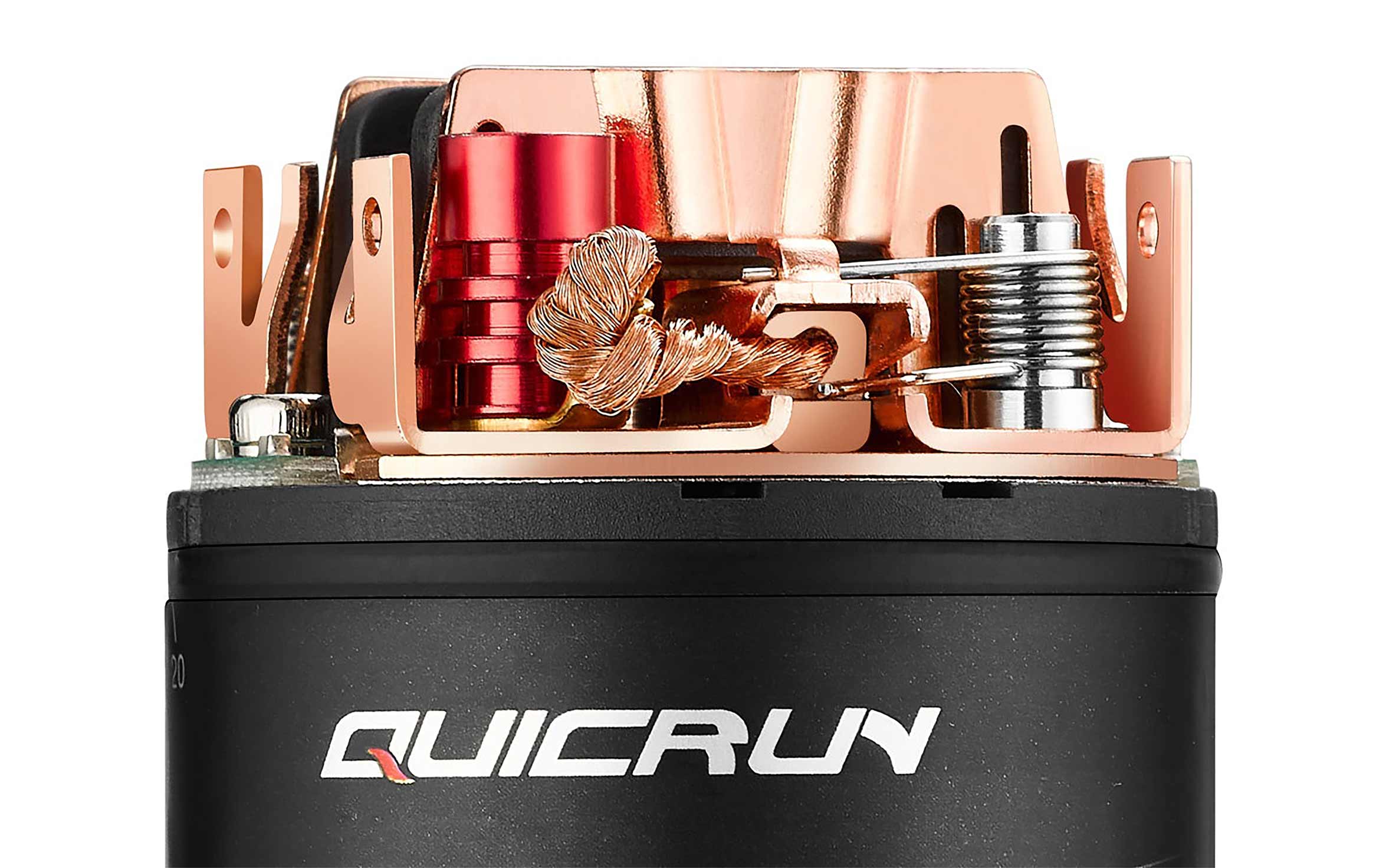

Specialized Carbon Brush For Extended Life
Specialized Carbon Brush For Extended Life

Developed specifically for these motors, the new brushes feature a custom blend to provide extremely long life, while providing great performance. These motors start to compare to brushless motors in terms of life span.

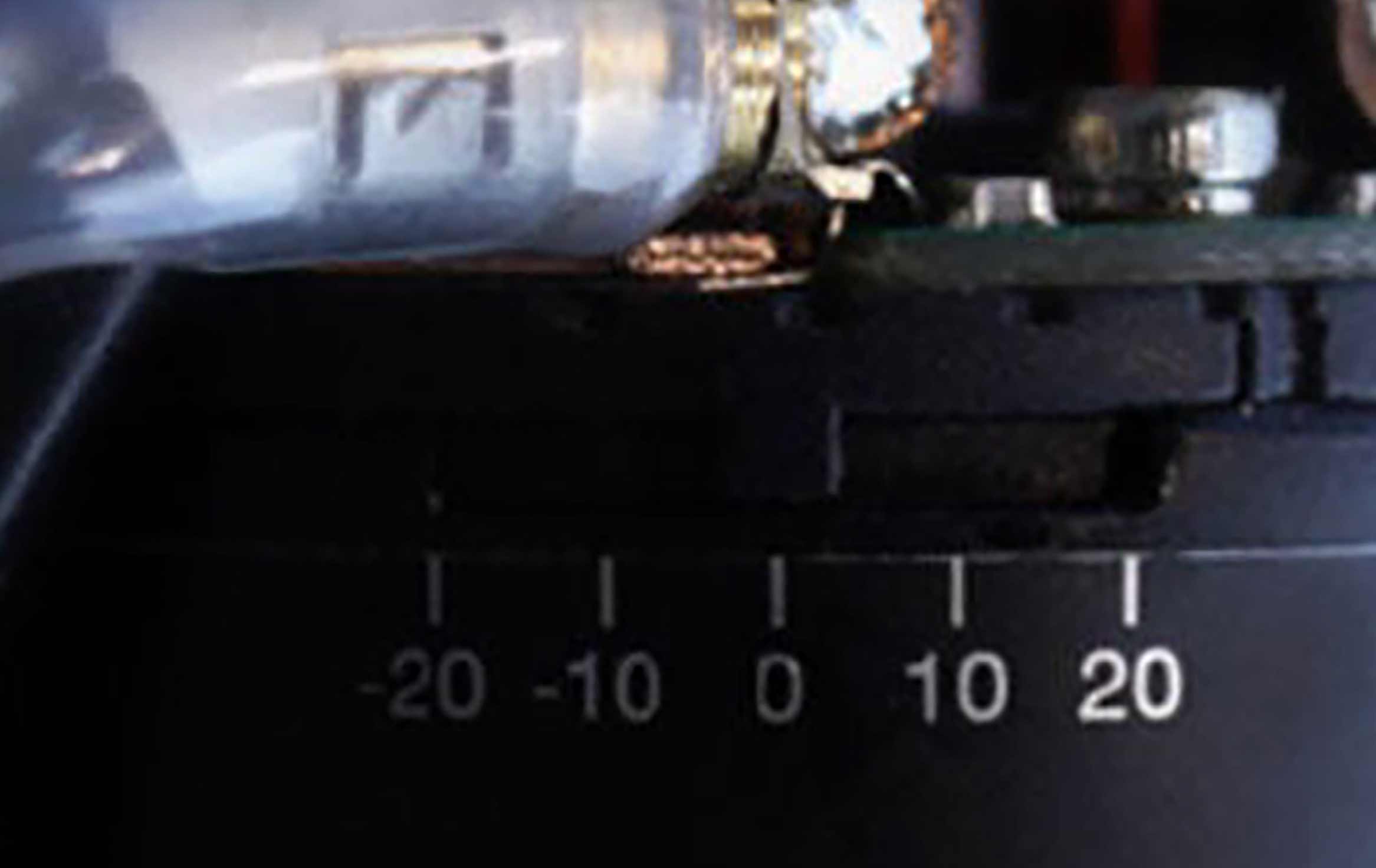

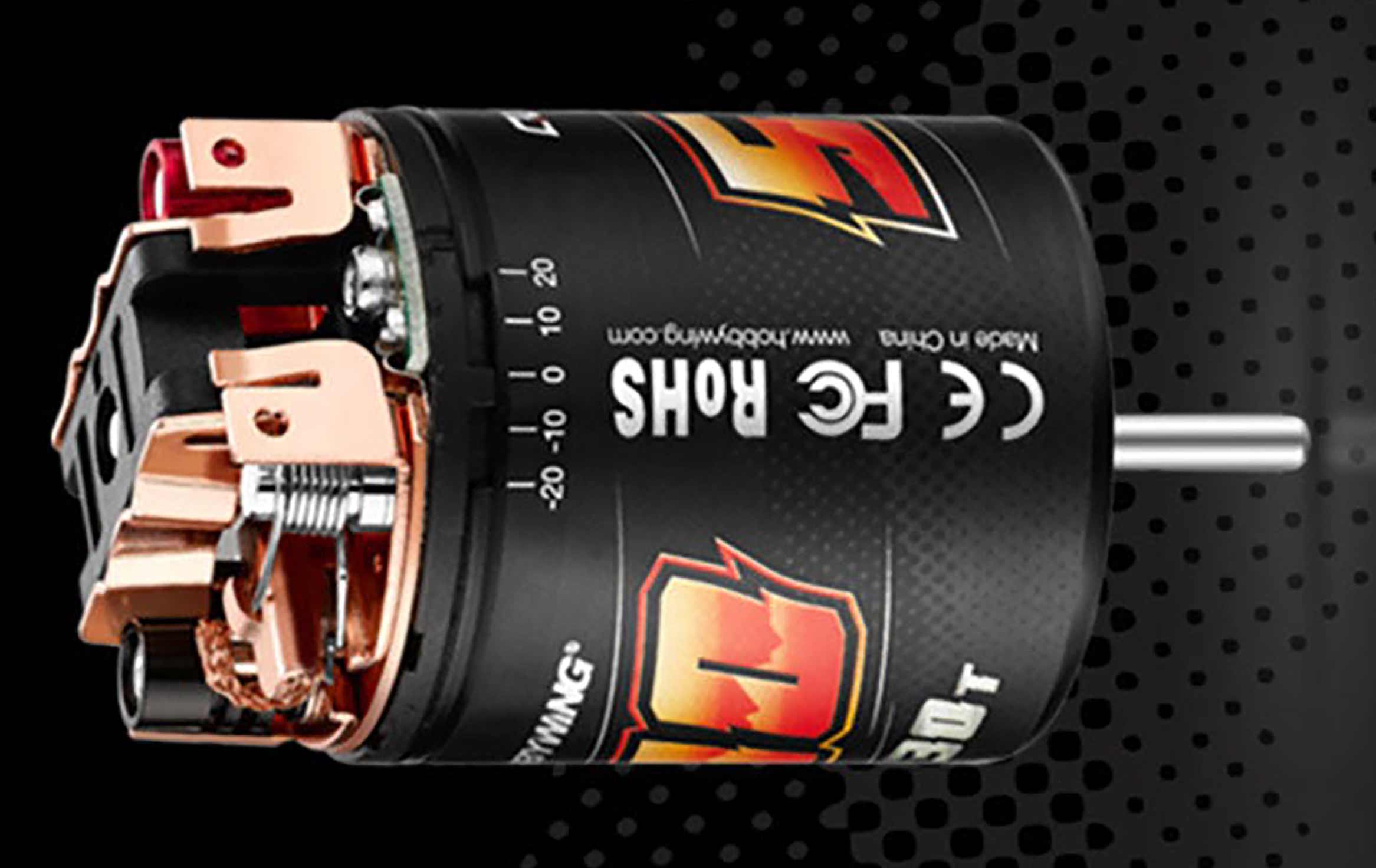

Adjustable Mechanical Timing Of The Motor
Adjustable Mechanical Timing Of The Motor

The mechanical timing of the motor can be adjusted by -20 — 20 °. This allows users to fine-tune the RPM and feel of motors. Timing adjustments also allow the motors to be used for CCW and CW applications.



Zero-Cogging Torque Design
Zero-Cogging Torque Design

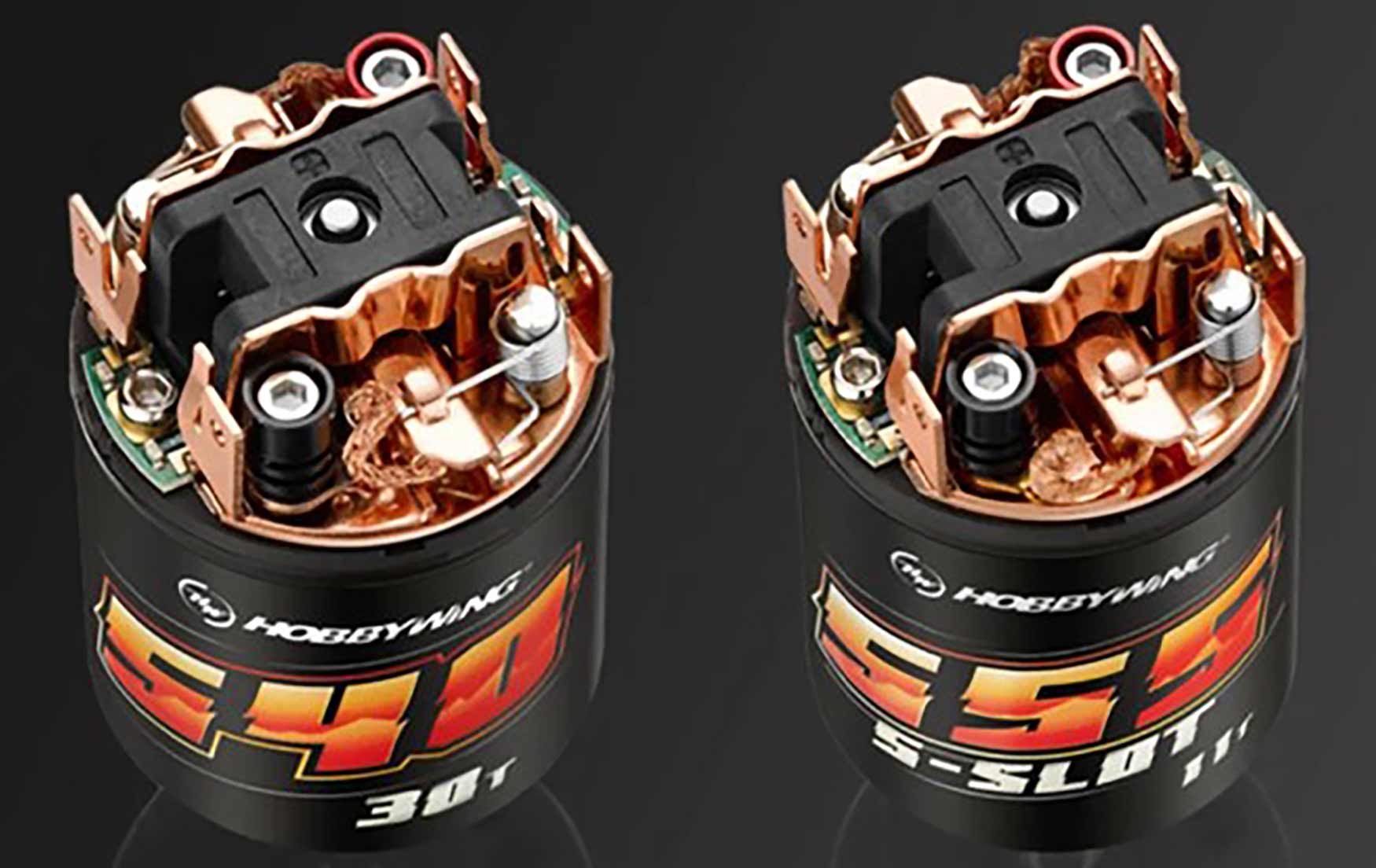

The 555 motor adopts a 5-slot design, and the motor cogging effect is virtually eliminated. These new motors have a very small torque fluctuation and, bring a very linear response at all speeds for an improved overall drive feel.



PCB Anti-Interference Board
PCB Anti-Interference Board

The motor is equipped with a dual PCB anti-interference board. These reduce the harmful spikes and noise from affecting your speed control.

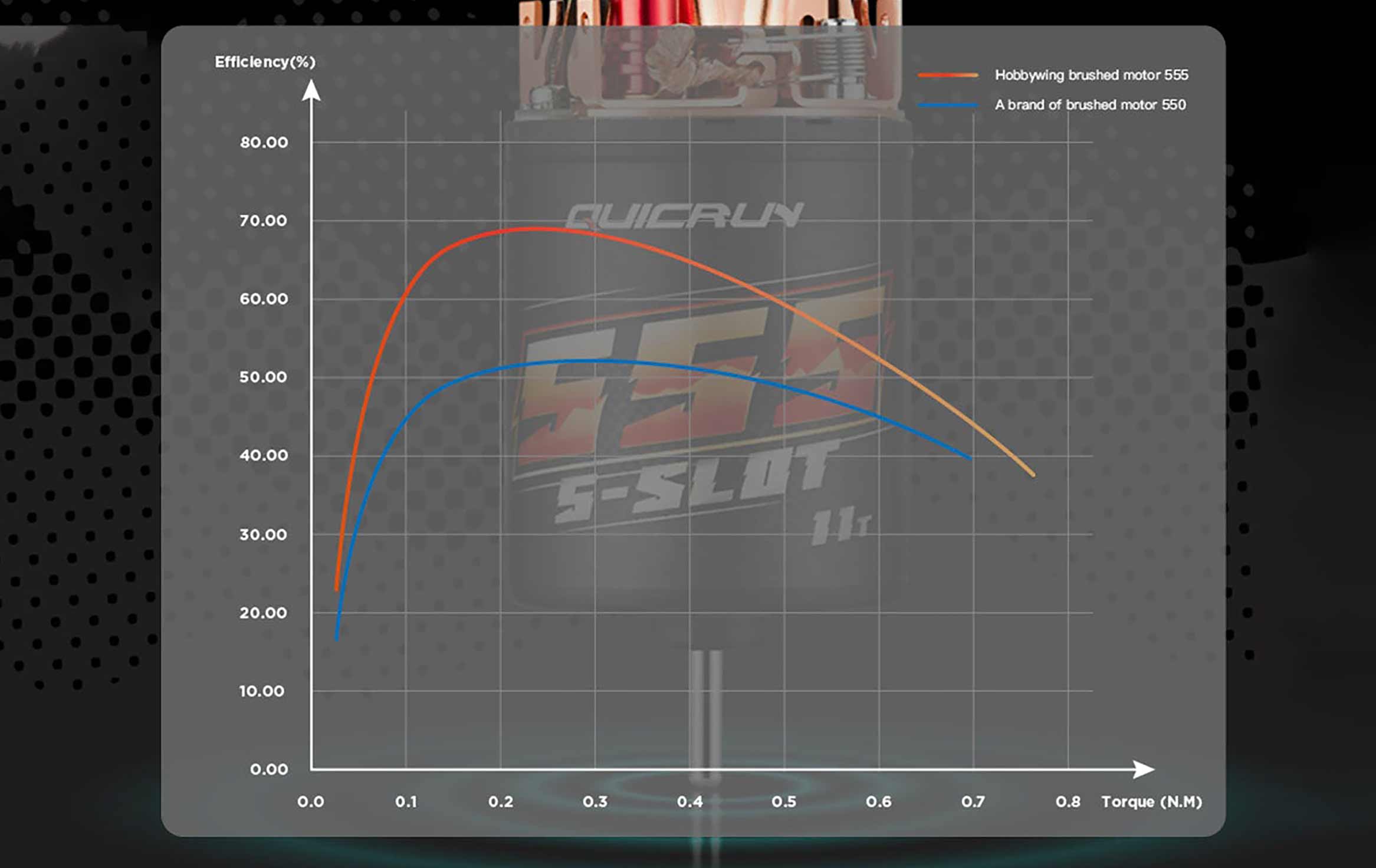

Excellent Efficiency
Excellent Efficiency

With up to 69% maximum efficiency, the QuicRun brushed motors far exceed standard motors of the same specifications (555-11T). The maximum efficiency is up to 17% higher. These new motors run cooler (Lower temps) than similar motors under the same load.



Quality Materials
Quality Materials

To ensure high tolerance to abuse and heavy-duty driving, a 200°C high-temperature resistant magnet, 180°C high-temperature resistant copper wire has been used. Combined with 0.35 mm (only 555) ultra-thin silicon steel sheet, and the Hobbywing custom carbon brush, these motors are built to handle the demands of today's driver.



Product Specifications

BEC Yes
BEC Voltage 6V/7.4V/8.4V @ 4A (switch-mode)
Input Voltage 2-3S LiPo or 5-9S NiMH
Motor Limit Brushed Motors 540/550 Series
Product Height 0.7244094" (18 mm)
RPM/Volt (Kv) 14000
Adjustable Timing Yes
Programmable Yes
Low-Voltage Cutoff Programmable Yes
Overload Protection Yes
Product Weight 70.2g (2.48 oz)
Water-Resistant Yes
Maximum Burst Current 400A
Maximum Continuous Current 80A
Motor Type Brushed
Speed Control Included
Amperage 80A
Turns 13T
Forward Yes
Reverse Yes
Wire Gauge 14 AWG
Connector Type XT-60
Product Length 1.464567" (37 mm)
Outer Diameter 1.42" (36 mm)
Product Width 1.255906" (32 mm)
