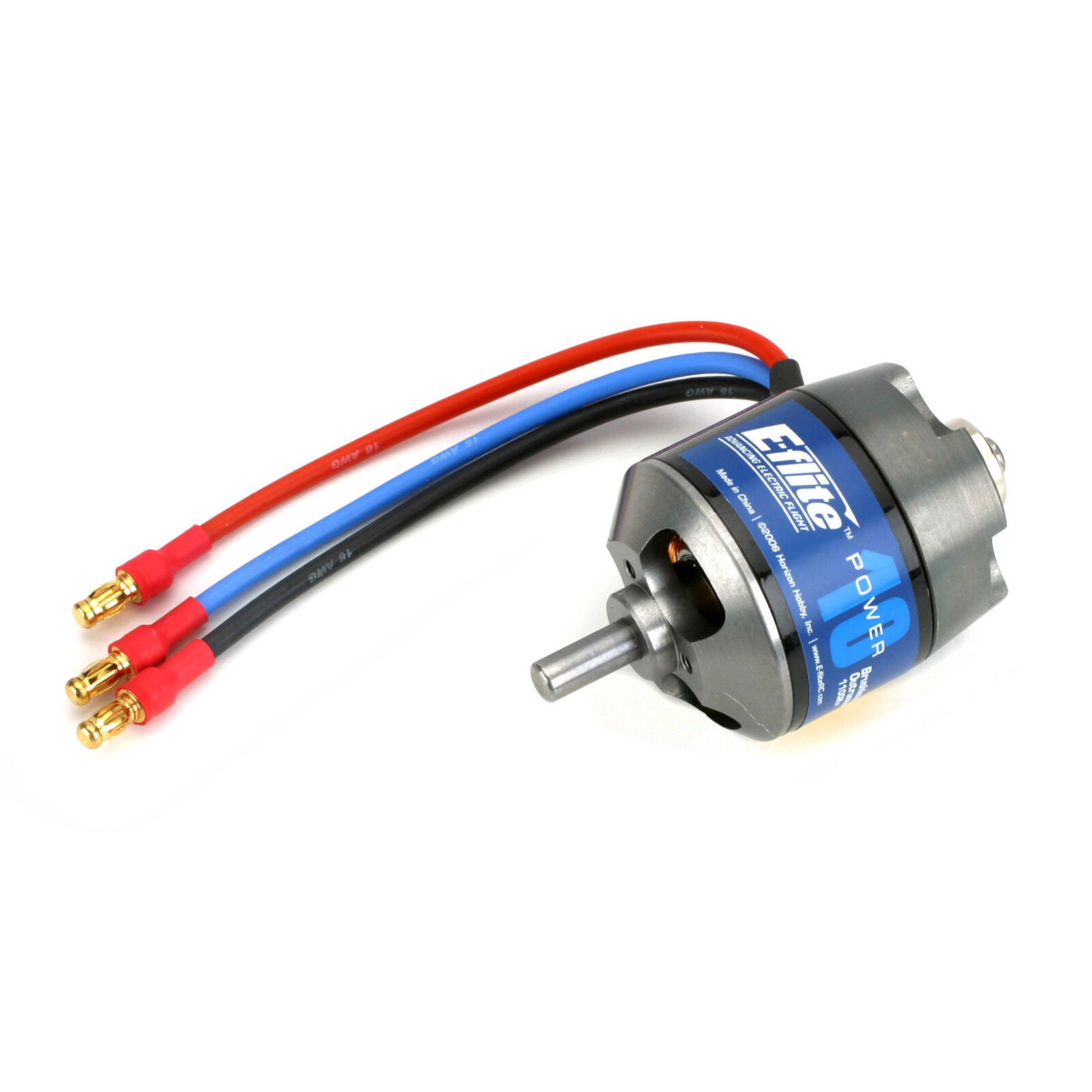

Power 10 Brushless Outrunner Motor, 1100Kv: 3.5mm Bullet

Item No. EFLM4010A
Power 10 Brushless Outrunner Motor, 1100Kv: 3.5mm Bullet
Brand Logo
5 out of 5 Customer Rating

Power 10 Brushless Outrunner Motor, 1100Kv: 3.5mm Bullet

Item No. EFLM4010A
$68.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
The link to Power 10 Brushless Outrunner Motor, 1100Kv: 3.5mm Bullet has been copied

Product Details

Quick Links
icon-pdf-download Manuals & Support

Key Features

  • Equivalent to a 10-size glow engine for 32–48 ounce (910–1360 g) airplanes
  • Ideal for 3D airplanes weighing 28–36 ounces (790–1020 g)
  • Ideal for models requiring up to 450 watts of power
  • High-torque, direct-drive alternative to inrunner brushless motors
  • Includes mount, prop adapters and mounting hardware
  • External rotor design—5mm shaft can easily be reversed for alternative motor installations
  • Slotted 14-pole outrunner design
  • High-quality construction with ball bearings and hardened steel shaft
  • Quiet, lightweight operation

Needed To Complete

  • 40A ESC
  • 6- to 10-cell Ni-MH/Ni-Cd or 2–3S Li-Po
  • 10x5 to 12x6 electric props

Overview

The Power 10 is designed to deliver clean and quiet power for 10-size sport and scale airplanes weighing 32 to 48 ounces (910 to 1360 grams), 3D airplanes weighing 28 to 36 ounces (790 to 1020 grams), or models requiring up to 450 watts of power. It’s an especially good match for the E-flite Brio 10 for high speed F3A precision or artistic aerobatics.

Product Specifications

Adjustable Timing No
Bushing Or Bearing Bearing
Connector Type 3.5mm Bullet
Idle Current (Io) 2.10A @10V
Motor Design Outrunner
Motor Type Brushless
Recommended Prop Range 10x5 - 12x6
Resistance .043 ohms
RPM/Volt (Kv) 1100
Shaft Diameter 0.2" (5 mm)
Voltage 2S - 3S LiPo
Wire Gauge 16 AWG
