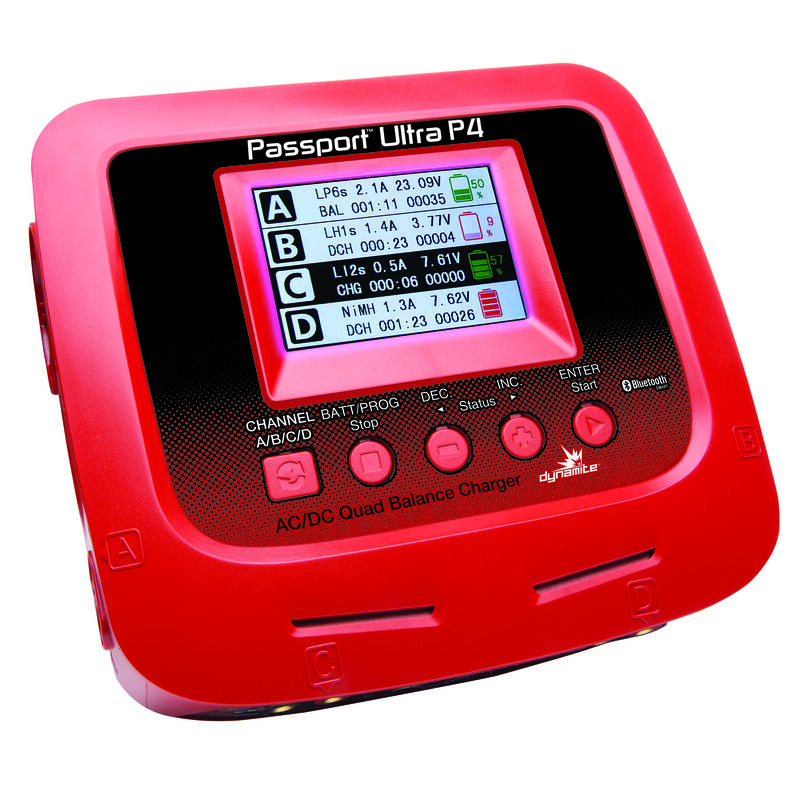

Passport P4 AC/DC Four Port Multi-charger

Item No. DYNC3018
Passport P4 AC/DC Four Port Multi-charger
Passport P4 AC/DC Four Port Multi-charger
Passport P4 AC/DC Four Port Multi-charger
Passport P4 AC/DC Four Port Multi-charger
Passport P4 AC/DC Four Port Multi-charger
Passport P4 AC/DC Four Port Multi-charger
Discontinued
Brand Logo
5 out of 5 Customer Rating

Passport P4 AC/DC Four Port Multi-charger

Item No. DYNC3018
This Item is No Longer Available
Selected Store

Product Details

icon-box
In The Box
  • (1) Passport™ P4 AC/DC Four Port Multicharger
  • (4) Charge Adapter: Banana to EC3™ Device
  • (4) Balancing Adapter Board: XH
  • (2) Bare charge leads
  • (1) AC Power Cord
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (1) LiPo charging bag or protective container
Passport P4 AC/DC Four Port Multi-charger
Quick Links
icon-pdf-download Manuals & Support

Overview

The Dynamite® Passport™ P4 AC/DC Four Port Multicharger represents the pinnacle of premium, high-performance chargers. With 200W output capability, the Passport P4 can charge low-to-medium capacity Li-Po batteries in half the time it takes lower wattage/amperage chargers. In addition, you get the full gamut of charging features, including the ability to charge virtually all battery types and intuitive LCD display.

Key Features

  • Powerful 200W AC/DC multicharger
  • Four channels charge four different kinds of batteries simultaneously
  • Charges:
    • 1-6S LiPo/LiIOn/LiFe/LiHV batteries
    • 1-15 cell NiMH/NiCD batteries
    • 2-20V Pb (lead acid) batteries
  • Selectable charge rate of 0.1A increments
    • Channels A/B have charge rates of 0.1 - 10A
    • Channels C/D have charge rates of 0.1 - 5A
  • Dynamite Dashboard - smart phone control and monitoring via Bluetooth, compatible with Android and iOS
  • Backlit, 480 x 320, color LCD screen
  • Built-in balancing ports
  • 40 Battery Memory (10 Per Channel)
  • Thermal, reverse polarity, short circuit protection, over-current and low voltage protection
  • Safety timer
  • Software updates available via USB port (external adapter required)
  • 1-Year limited warranty

Dynamite Dashboard

The Dynamite Dashboard provides seamless integration to select Dynamite "P" Series chargers by bringing real-time monitoring to your mobile device. You can monitor the charge status of your batteries, view real time battery stats including; battery type, battery cells, charge current, voltage, battery capacity, battery charge level and more. Simply download the app, pair your mobile device to the compatible Dynamite P-Series charger via Bluetooth and take advantage of viewing real-time charge stats while monitoring your battery's charge process. With Bluetooth communication, the Dynamite Dashboard puts your charge setting control at your fingertips.

Thanks to Dynamite's QR Scan with Smartphone control functionality, you can scan the QR code on your Dynamite Reaction 2.0 batteries to automatically set the optimal charge settings for that specific battery making using Dynamite "P" Series chargers easy, convenient and safe. Additionally, you have the ability to create your own QR codes for any battery line/specs.

Available on Google Play Store button
Available on Apple iTunes button



Dynamite Dashboard


Video Overview

Product Specifications

Battery Balance Connector XH
Battery Temperature Monitoring Yes
Charge Protection Circuitry Yes
Number of Cells 1–6S Li-Po/Li-HV/Li-Ion/Li-Fe, 1–15C Ni-Cd/Ni-MH, 2–12V Pb
Selectable Charge Rate Yes
Integrated Balancing Yes - Internal Balancer & External Adapter
Low Input Voltage Protection Yes
Maximum Continuous Discharge Current 0.1 - 2A per channel
Software Updates Yes
Maximum Charge Rate 0.1 - 10A
Reverse Polarity Protection Yes
Thermal Protection Yes
Display LCD
Hard Case Yes
Input Voltage 100 – 240V AC (50 – 60Hz); 11 – 18V DC
Maximum Continuous Discharge Rate 10W per channel
Programmable Yes
Safety Timer Yes
Over Current Protection Yes
Amp Meter Yes
Application RC model multi-charger
Output CH A&B 50-100W, CH C&D 0-50W
Peak Detection Yes
Short Circuit Protection Yes
Normal/Standard Charge Current CH A&B 0.1 - 10A, CH C&D 0.1-5A
Voltage Meter Yes
