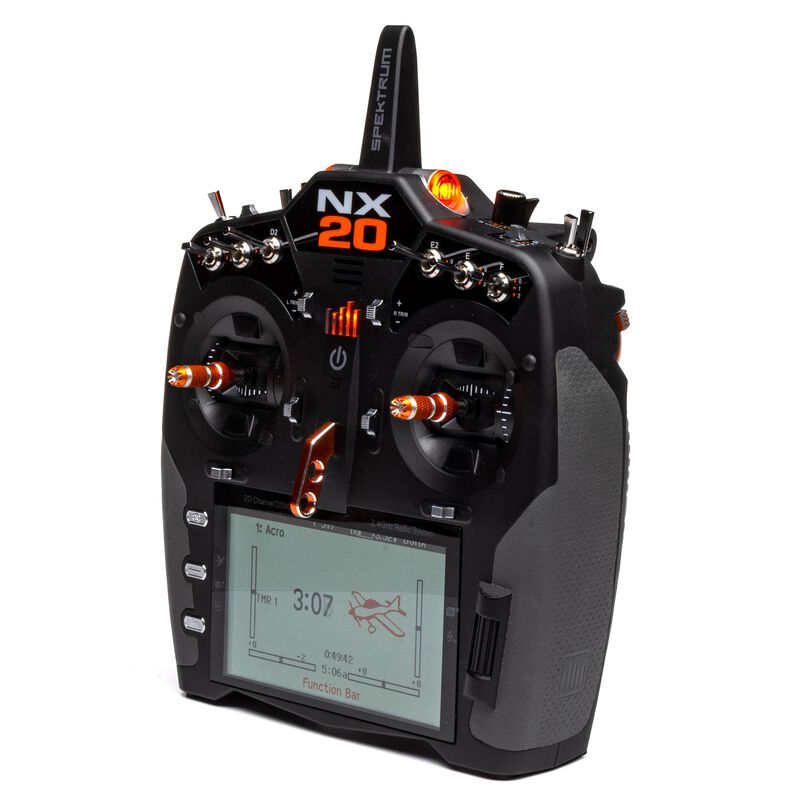

NX20 20-Channel DSMX Transmitter Only

Item No. SPMR20500
Brand Logo
5 out of 5 Customer Rating

NX20 20-Channel DSMX Transmitter Only

Item No. SPMR20500
$1,299.99
RC Club points earned on this item shown at checkout.
Select Options
AR10100T DSMX 10-Channel Telemetry Receiver
SPMR20500 SPMAR10100T
AR10100T DSMX 10-Channel Telemetry Receiver
In Stock
$119.99
AR10400T 10-Channel PowerSafe Telemetry Receiver
SPMR20500 SPMAR10400T
AR10400T 10-Channel PowerSafe Telemetry Receiver
In Stock
$299.99
AR14400T 14-Channel PowerSafe Telemetry Receiver
SPMR20500 SPMAR14400T
AR14400T 14-Channel PowerSafe Telemetry Receiver
In Stock
$349.99
AR20400T 20-Channel PowerSafe Telemetry Receiver
SPMR20500 SPMAR20400T
AR20400T 20-Channel PowerSafe Telemetry Receiver
In Stock
$379.99
AR410 DSMX 4-Channel Sport Receiver
SPMR20500 SPMAR410
AR410 DSMX 4-Channel Sport Receiver
In Stock
$34.99
AR620 DSMX 6-Channel Sport Receiver
SPMR20500 SPMAR620
AR620 DSMX 6-Channel Sport Receiver
In Stock
$49.99
AR6610T DSMX 6-Channel Telemetry Receiver
SPMR20500 SPMAR6610T
AR6610T DSMX 6-Channel Telemetry Receiver
In Stock
$79.99
AR8020T DSMX 8-Channel Telemetry Receiver
SPMR20500 SPMAR8020T
AR8020T DSMX 8-Channel Telemetry Receiver
In Stock
$89.99
AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver
SPMR20500 SPM-1033
AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver
In Stock
$129.99
AR637T+ DSMX 6-Channel AS3X+ & SAFE Telemetry Receiver
SPMR20500 SPM-1032
AR637T+ DSMX 6-Channel AS3X+ & SAFE Telemetry Receiver
In Stock
$114.99
AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver
SPMR20500 SPM-1034
AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver
In Stock
$169.99
AR631+ DSMX 6-Channel AS3X+ & SAFE Receiver
SPMR20500 SPM-1031
AR631+ DSMX 6-Channel AS3X+ & SAFE Receiver
In Stock
$84.99
0 Item Selected Items Selected
Neck Strap
SPMR20500 SPMP610
Neck Strap
In Stock
$15.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

From Wi-Fi connectivity and a 5" color display to built-in Smart Technology support, the NX20 provides experienced pilots with the next generation of radio control. This high-channel count transmitter is perfect for pilots looking for a top-of-the-line flying experience!
Key Features
  • Backlit 5”, 800x480 display screen with multiple color palette choices and user customizable colors
  • Wi-Fi connectivity for easy product registration and firmware updates
  • Smart Technology compatibility out of the box
icon-box

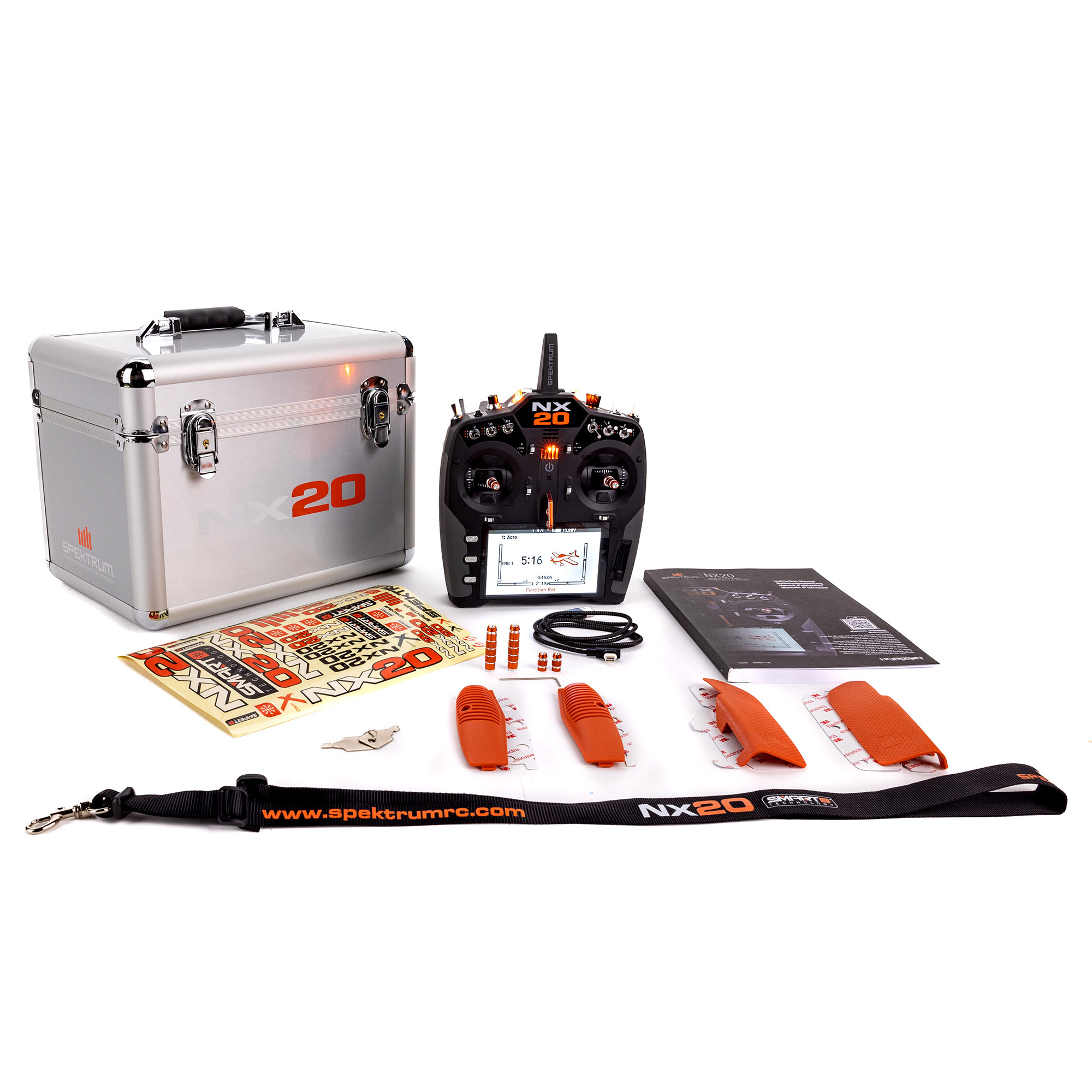

In The Box
  • (1) NX20 20-Channel DSMX Transmitter Only
  • (1) 10500mAh LiIon Transmitter Battery with Magnetic USB Cable and USB-C Adapter for USB Charging
  • (1) NX20 Transmitter Neck Strap
  • (1) NX20 Decal Sheet
  • (1) NX20 Carrying Case
  • (1) Orange Grip Se
  • (1) Optional-use Short and Long Stick Ends
  • (1) Product Manual
NX20 20-Channel DSMX Transmitter Only

Features

  • Backlit 5", 800x480 display screen with multiple color palette choices and user customizable colors
  • Wi-Fi connectivity for easy product registration and firmware updates
  • Smart Technology compatibility out of the box
  • 3.7V 10500mAh 1S Lithium Ion transmitter battery and a magnetic USB Cable and USB-C Adapter for convenient USB charging
  • Airplane, sailplane, multi-rotor, and helicopter programming
  • 250 model memory
  • Model templates available for BNF® aircraft

Overview

For advanced-level pilots who fly high-performance aircraft, the Spektrum NX20 20-channel DSMX® transmitter provides the latest in innovative radio control. The NX20 includes an incredible array of exclusive technologies and advanced connectivity features that are seldom found in comparable 20-channel transmitters.

Out of the box, the NX20 is compatible with Smart Technology. It's ready to support your Spektrum Smart batteries and Smart Avian ESCs, so you can receive important telemetry data right at your fingertips in real time. Exclusive Spektrum Airware software is also included to provide the easiest, most intuitive programming available.

The NX20 transmitter's Wi-Fi connectivity adds more convenience. In addition to completing product registration straight from the transmitter, you'll be able to download firmware updates instantly. It's a totally modern user experience with some of the same features and capabilities found in the top-of-the-line Spektrum iX Series transmitters.

More proven Spektrum transmitter expertise can be found in the NX20 transmitter's ergonomic design. The contours, balance, and control positions combine to increase the accuracy of your inputs and provide unparalleled comfort. An easy-to-use roller wheel interface simplifies programming, with a 5" color display to make menus easy to read. Even a rechargeable 1S 10500mAh Li-Ion transmitter battery and magnetic USB Cable and USB-C Adapter for convenient USB charging are included.

From its brilliantly designed display to the Wi-Fi connectivity plus built-in Smart Technology support and exclusive upgrades, the NX20 gives experienced pilots access to a wide array of Spektrum exclusive advantages and innovations. Fly your aircraft with next-level control — choose the 20-channel NX20 transmitter.

Video Overview

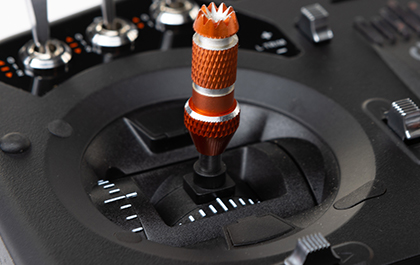

UPGRADED GIMBALS
UPGRADED GIMBALS

Among the upgrades included with the NX20 transmitter are gimbals with magnetic encoders. They provide advanced precision, low maintenance, and exceptionally smooth operation.

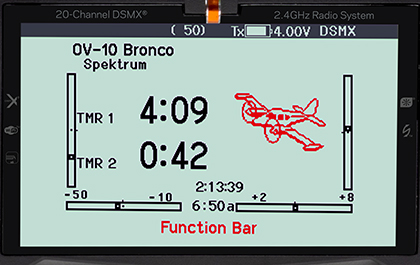

5" COLOR DISPLAY
5" COLOR DISPLAY

Navigating menus and viewing telemetry data is made easy by the NX20 transmitter's 5" backlit color display that delivers information in crisp, 800x480 resolution detail. The display screen also allows you to choose from multiple color palettes to customize the color of the text, boxes, and background displayed.

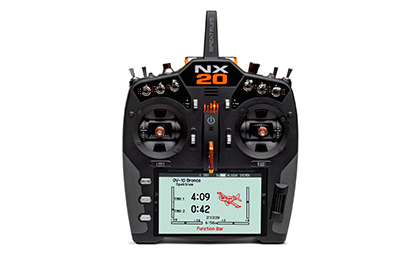

ERGONOMIC DESIGN
ERGONOMIC DESIGN

Weight distribution and switch placement have been optimized for comfortable and precise, fatigue-free control. Rubber grips make it easy to hold the NX20 transmitter securely. Its antenna folds conveniently into the top for compact storage and transport.



WI-FI AND USB CONNECTIVITY
WI-FI AND USB CONNECTIVITY

When the NX20 transmitter is connected to Wi-Fi, you can complete product registration and download firmware updates instantly. A USB-C port allows you to charge the internal Li-Ion battery with the included USB-to-USB-C magnetic USB cable and magnetic adapter. It can also be used to recognize accessory devices and provide a convenient link to your PC or laptop. Connect the transmitter to your computer, and you can control most simulators, including the RealFlight® RC Flight Simulator.



SMART TECHNOLOGY
SMART TECHNOLOGY

The Spektrum NX20 comes ready to provide the advantages of state-of-the-art connectivity right out of the box by supporting the innovative, all-in-one telemetry of Spektrum Smart batteries, ESCs and receivers. Smart Technology ensures that all your model's electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component's status, boosts your confidence in its capabilities, and makes your entire system more responsive and simpler to use.

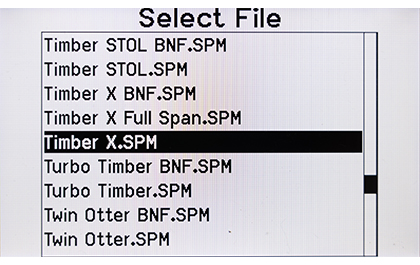

MODEL TEMPLATES
MODEL TEMPLATES

Model programming templates for BNF® aircraft that include desired switch assignments, rates, curves, and other details are already saved into the NX20 transmitter. You can also simplify the process of creating set-ups for new models by selecting Template and starting from a generic model template of the appropriate model type.

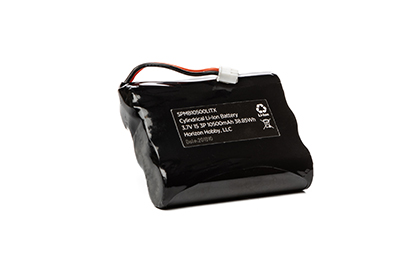

HIGH CAPACITY Li-ION TRANSMITTER BATTERY
HIGH CAPACITY Li-ION TRANSMITTER BATTERY

The NX20 transmitter includes a long-lasting 3.7V 10500mAh 1S Lithium Ion battery and a magnetic USB Cable and USB-C Adapter for convenient USB charging.



INTEGRATED SERIAL PORT
INTEGRATED SERIAL PORT

The NX20 transmitter's integrated serial port provides power and support for third party modules.

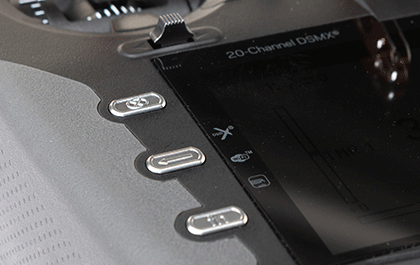

EASY NAVIGATION
EASY NAVIGATION

The simple roller interface makes navigating menus and changing settings as simple as "roll and click." Function bar options include Telemetry Ticker Tape for following real-time telemetry data and "My List" to give you quick access to the menu items you select, organized however you wish. You'll have quick, uncluttered access to the features you use the most.

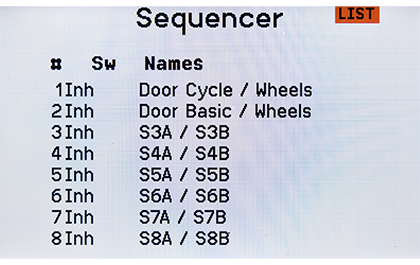

EASY PROGRAMMING
EASY PROGRAMMING

The NX20 includes programming for airplanes, sailplanes, helicopters, and multi-rotor models, with 14 programmable mixes and up to 10 different flight modes and 8 sequencers.



Product Specifications

Application Aircraft, Helicopters
Band 2.4GHz
Battery Included
Channels 20
Charger Included
Frame Rate 11ms, 22ms
Model Memory 250
Modulation DSMX/DSM2
Programmable Yes
Range Full
Rate Positions 3 POS
Receiver Sold Separately
Resolution 2048
SD Card/Airware Capable Yes
Technology Voice Alerts
Transmitter (Tx) Battery Type SPMB10500LITX - 10,500 mAh Lithium Ion
