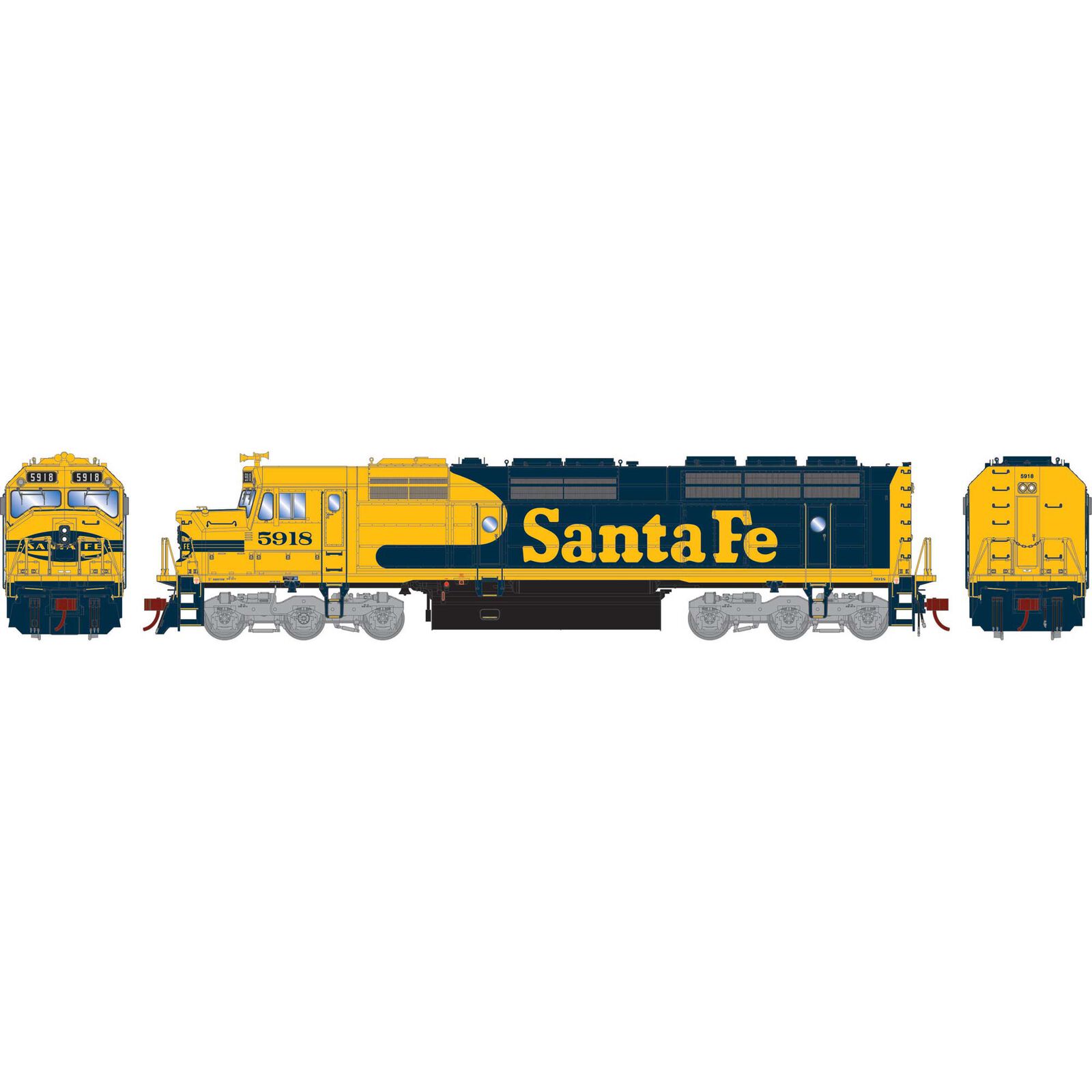

N F45 Locomotive with DCC & Sound, ATSF #5918

Item No. ATH19178
Pre-Order
Brand Logo
4.8 out of 5 Customer Rating

N F45 Locomotive with DCC & Sound, ATSF #5918

Item No. ATH19178
$269.99
RC Club points earned on this item shown at checkout.
Next Shipment January 2025
Selected Store

Product Details

Delivered in 1968, Santa Fe’s fleet of 40 F45s was used mainly on the transcontinental line between Los Angeles and Chicago. In the mid-1970s, Santa Fe began to repaint the units and install a variety of rooftop equipment, such as air conditioners, antennas, and beacons. In 1982-1983, the F45’s were rebuilt at the railroad’s San Bernardino, CA shops. They emerged wearing new numbers in the 59XX series and were classified as “F45u / SDF45”. In 1994, 22 units were sold to Morrison Knudsen and received MKM lettering under the road numbers.
Key Features
  • 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain
  • All-wheel drive with precision gears for smooth & quiet operation
  • Heavy die-cast frame for greater traction and more pulling power

PROTOTYPE AND BACKGROUND INFO

By the early 1960’s the Electro-Motive Division (EMD) was at a big disadvantage. Their 567 engine, in use for over 20 years, had reached it’s peak at 2,500 horsepower in a turbocharged 16-cylinder version. EMD released a new 645 engine in 1966. The most powerful locomotive using this series of engine was the SD45, powered by a 20-cylinder turbocharged 645E engine producing 3600 horsepower. EMD then offered the V20 645E engine in the SDP45 in a standard hood configuration and longer frame to occomodate the steam generator needed for passenger service. The EMD SDP45 was a good passenger locomotive, but to the Santa Fe Railway it did not look the part. EMD therefore designed a lightweight “cowl” body to cover the locomotive, though it did not, as in earlier cab units, provide any structural strength, which remained in the frame. The cowl provided sleeker looks, better aerodynamics at speed, and allowed the crew to enter the engine compartment en route for diagnostics and maintenance. After sponsoring the development of the FP45 passenger locomotive, the Santa Fe requested a similar freight locomotive from Electro-Motive. Where the FP45 was an SDP45 wrapped in a full-width Cowl carbody, the new F45 was essentially an SD45 given the same treatment.

F45 SERIES LOCOMOTIVE FEATURES:

  • See-through cab windows
  • 4,000 gallon fuel tank
  • Snow plow or plate welded pilot
  • Flush mounted port hole window glass
  • Flexicoil-C sideframes with high brake cylinders
  • Body-mounted McHenry® operating scale knuckle couplers
  • Fine-scale Celcon handrails for scale appearance
  • 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain
  • All-wheel drive with precision gears for smooth & quiet operation
  • All-wheel electrical pickup provides reliable current flow
  • Bidirectional constant LED lighting so headlight brightness remains constant
  • Heavy die-cast frame for greater traction and more pulling power
  • Scaled from prototype resources including drawings, field measurements, photographs, and more
  • Accurately-painted and –printed paint schemes
  • Fully-assembled and ready-to-run
  • Jewel case blister packaging securely holds for the model
  • Minimum radius: 9 ¾”
  • ATSF FEATURES:

  • ATSF body with wide anticlimbers
  • SOUND-EQUIPPED MODELS ALSO FEATURE:

  • Onboard DCC decoder with SoundTraxx Tsunami2 sound
  • Sound units operate in both DC and DCC
  • Full DCC functions available when operated in DCC mode
  • Engine, horn, and bell sounds work in DC
  • All functions NMRA compatible in DCC mode
  • Precision slow speed control
  • Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
  • Many functions can be altered via Configuration Value (CV) changes
  • CV chart included in the box

Product Specifications

Reporting Mark ATSF
Scale N
Sub Brand GENESIS
Lighting LED
Coupler Style McHenry Scale Knuckle
Era 1971-1990,1991-2009,2010-Present Day
Prototype Manufacturer EMD
DCC Equipped
Axles 6
