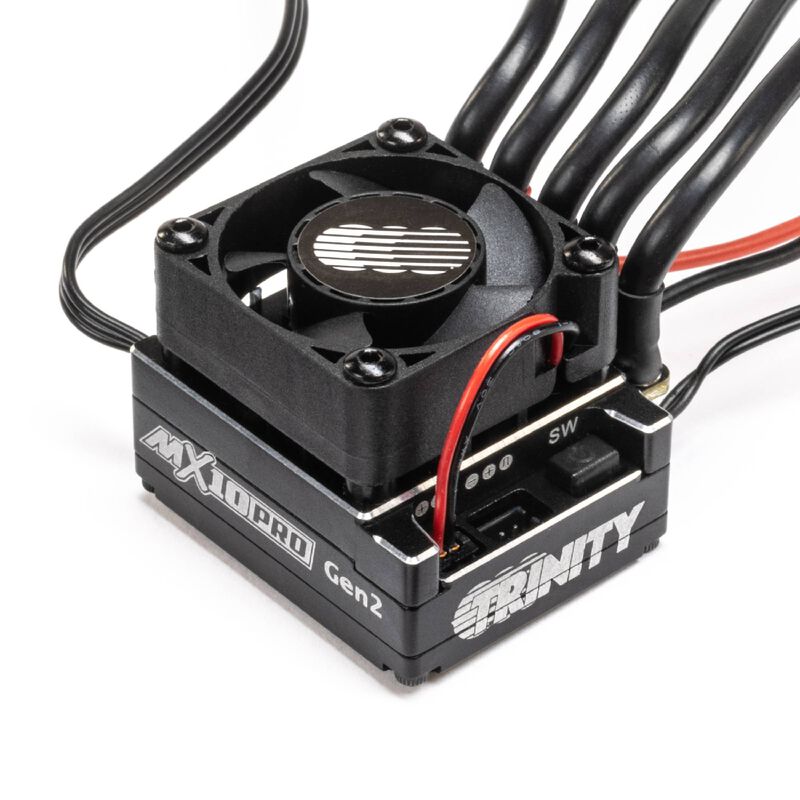

Trinity MX10 Gen 2 200A Sensored ESC Overview

The Trinity MX10 Gen 2 200A Sensored ESC has been designed for the most competitive 1/10 and 1/12 scale stock and mod racers. The MX10 offers an industry leading 200-amp constant power rate and an incredible 1000-amp burst rate. All this power comes in a sleek black machined aluminum case designed for maximum heat dissipation. This second generation of ESC also features a 32-bit microprocessor for more powerful processing capability and more precise power output. Each ESC comes with our updated high strand count, high flex 13-gauge wire, fan, and capacitor bank. A shortened receiver connector wire comes standard to make sure your wiring looks clean. The MX10 Gen 2 ESC can be programmed by the MX Gen 2 Wireless Module (sold separately) to take your driving to the next level, right from your phone!

Features

  • 200A Current Rating
  • 1000A Burst Current Rating
  • Adjustable 6.0v/7.4v BEC
  • 2-Pole 3.5T Motor Limit
  • Low voltage cut-off, over-heat, and throttle signal loss protection
  • Proprietary proportional boost and turbo functionality
  • Enhanced throttle response, excellent acceleration, linearity, and drivability
  • Data logging for real-time maximum ESC temperature, motor RPM, Voltage and more
  • 32-bit microprocessor for more powerful processing capability and more accurate motor output
  • Includes updated high strand count, high flex black 13-gauge wire
  • Lightweight heat sink design, with highly efficient heat dissipation system and 30mm fan
  • Built-in power button
  • Programmable using the MX Gen 2 Wireless Module (TEP0015, sold separately) and Trinity Programming App

Please Note:

  • 2S-3S Use Only!
  • Not Recommended for Drag Applications
  • Warranty is void if used in Drag Application
  • Warranty is void if original motor wires are changed or RX wire is altered in any way

Product Specifications

Product Length 1.63" (41 mm)
Reverse Yes
Wire Gauge 13 AWG
Adjustable Timing Yes
Programmable Yes
Product Width 1.45" (37 mm)
BEC Type Adjustable
Maximum Burst Current 1000A
Maximum Continuous Current 200A
Motor Type Brushless
Auto Cutoff Yes
Low-Voltage Cutoff Programmable Yes
Overload Protection Yes
Product Weight 102g
Water-Resistant No
BEC Yes
BEC Voltage 6.0v / 7.4v
Input Voltage 2-3S LiPo / 5-10S NiMH
Motor Limit 2-Pole 3.5T
Product Height 0.82" (21 mm)
Sensored Yes
