Product Details

Key Features
  • 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
  • Proprietary stator winding produces low internal resistance for a cooler running motor
  • Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
  • High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
  • Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
In The Box
  • (1) 4-POLE Sensored 1717-1260KV Motor
  • (1) Motor Quick Start Guide

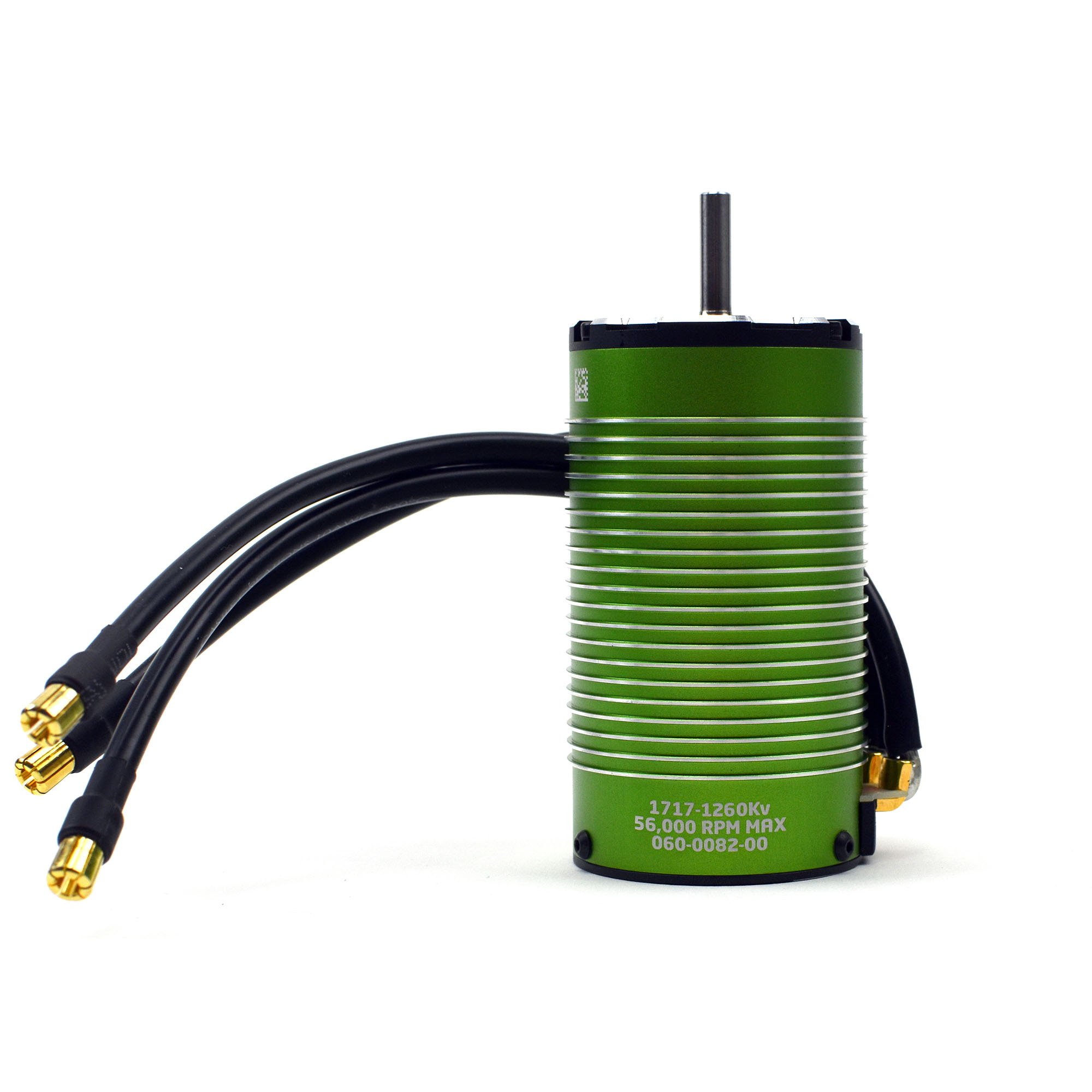

MOTOR, 4-POLE SENSORED BRUSHLESS, 1717-1260Kv

Product Specifications

Adjustable Timing Yes
Application 1/6 scale vehicles weighing up to 20lbs runnning up to 8S LiPo, Upgrade for heavier 1/8 scale, and lighter 1/6 scale vehicles
Connector Type 6.5mm Bullet
Input Voltage 3-8S LiPo
Motor Design Inrunner
Motor Type Brushless
Number of Poles 4
Outer Diameter 1.87" (47 mm)
Product Length 3.35" (85 mm)
Product Weight 21.08oz (597.6g) with wires
Recommended Speed Control Castle Creations Mamba Monster X 8S 33.6V
RPM/Volt (Kv) 56,000/1260Kv
Shaft Diameter 0.196" (5 mm)
Voltage 7.4 - 33.6V
Water-Resistant Yes
