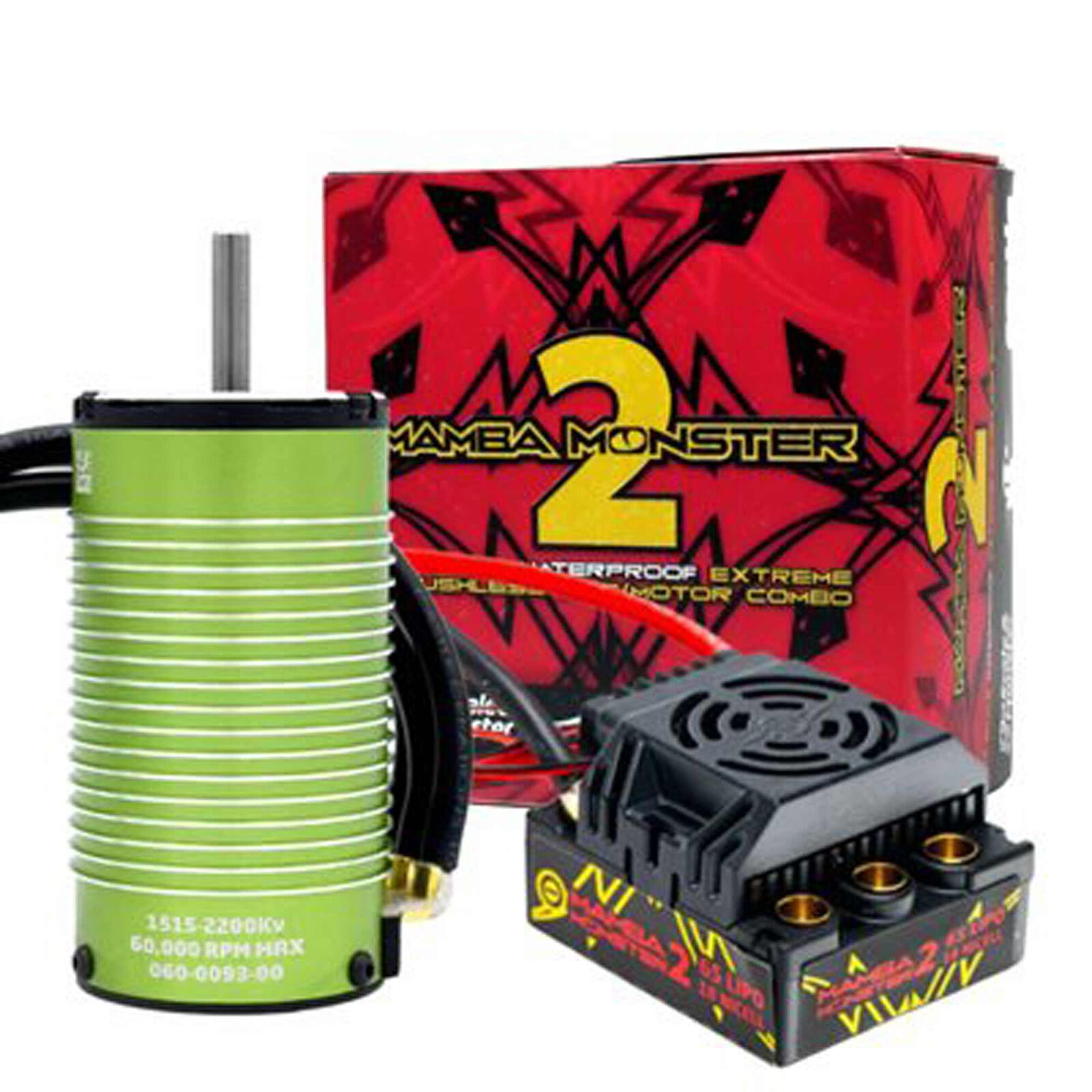

MONSTER 2 1:8TH 25V ESC WATERPROOF W / 2200KV V2 MOTOR SENSORED V2 COMBO

Item No. CSE010010805
MONSTER 2 1:8TH 25V ESC WATERPROOF W / 2200KV V2 MOTOR SENSORED V2 COMBO
Brand Logo
3.7 out of 5 Customer Rating

MONSTER 2 1:8TH 25V ESC WATERPROOF W / 2200KV V2 MOTOR SENSORED V2 COMBO

Item No. CSE010010805
$264.95
RC Club points earned on this item shown at checkout.
In Stock
Selected Store
The link to MONSTER 2 1:8TH 25V ESC WATERPROOF W / 2200KV V2 MOTOR SENSORED V2 COMBO has been copied

Product Details

Brute Power and Sheer Stamina!
icon-box
In The Box
  • (1) Mamba Monster 2 1/8 Electronic Speed Control
  • (1) 2200Kv V2 Sensored Motor

Overview

Castle Creations' introduction of the Mamba Monster was a break-through moment for R/C modelers wanting to experience what seemed to be unobtainable. Brute power and sheer stamina have made this our legacy “power up” for popular 1/8th scale buggies, truggies and on road vehicles and 1/10th scale monster trucks.

The Mamba Monster 2 ESC is capable of 2S LiPo to a maximum of 6S LiPo and is waterproof, which means you can run your vehicle through the morning dew, across the soggy snow or just about anywhere else you’d be interested in running a 1/8th scale RC buggy or truck.

Industry Leading Software Functions

The Mamba Monster 2 includes a coupon for a free Castle Link USB device. This allows access to the full programming suite of adjustable settings that tune and tweak your vehicle to your preferences, resulting in an incredible RC driving experience.

Features

  • Adjustable Internal BEC: 5.0 - 7.0, in .1v increments (5A Peak), default 5.5V
  • Factory equipped (30mm), fully removable cooling fan
  • Waterproof design allows for use in nearly any environment
  • LED error codes for common error conditions
  • Convenient transmitter programming for nine common adjustable settings
  • Full compatible with the Castle Link Programming Suite
  • Proudly Designed, Assembled and Supported in Olathe, KS USA
  • Backed by Castle Creations' 1 YR WARRANTY
  • Input Voltage range: 2s-6s LiPo
  • Redesigned rotor and stator assemblies.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminum CNC Machines Front/Rear End Bell
  • Proudly Designed and Supported in Kansas, USA.
  • Increased efficiency, resulting in lower temperatures and longer run times.

Product Specifications

BEC Voltage 5V - 7V
Brakes Proportional
Input Voltage 2S - 6S
Outer Diameter 1.57" (40 mm)
Product Height 1.44" (37 mm)
Product Length 2.09" (53 mm)
Product Weight 3.92 oz. (111.g)
Product Width 1.93" (49 mm)
Reverse Yes
RPM/Volt (Kv) 2200Kv
Shaft Diameter 0.19" (5 mm)
Shaft Length 0.78" (20 mm)
