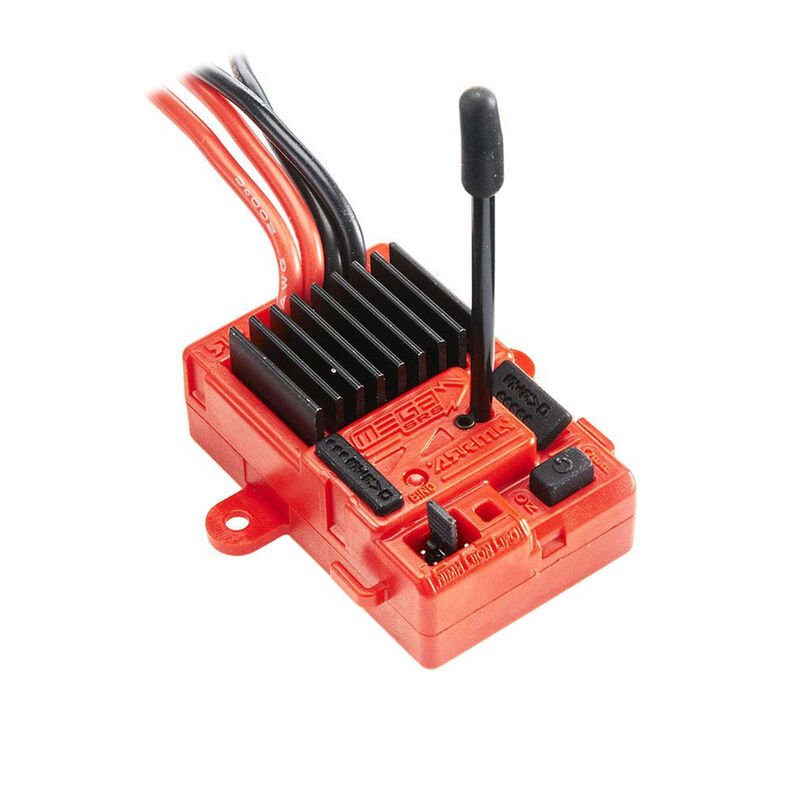

Mega SRS 3-in-1 Unit

Item No. ARAL1010
Brand Logo
5 out of 5 Customer Rating

Mega SRS 3-in-1 Unit

Item No. ARAL1010
$44.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

This high-quality ARRMA MEGA SRS 3-IN-1 unit will provide consistent and safe power control in your ARRMA vehicle.

Features

Capable of running 2S Li-Ion, 2S LiPo or 6 cell NiMh, this MEGA SRS 3-in-1 unit has overvoltage protection for safe voltage management when under heavy operating pressure - Integrated ESC, radio receiver and servo control electronics in one compact unit - Cool-looking integrated black-anodized heat-sink for increased heat dissipation when under heavy usage - Durable motor and battery connection cables for safe and reliable power transfer - Waterproof power switch - Rubber covers for servo plug sockets - Simple battery type selection using jump connector - Strong and durable red nylon case with dedicated chassis mounted holes for added security of fit  - Etched 'ARRMA' livery for cool looks and quality assurance - Can use ADS-5 SRS 5-wire or standard 3-wire servo

SPECIFICATIONS:

Continuous Current Capacity: 40A

Battery Modes: Li-Ion, LiPo and NiMH (User Selectable)

Compatible Batteries: 7.4V (2S) Li-Ion, 2S LiPo, 6-7 cell NiMH

BEC Voltage (5-wire and 3-wire socket): 5V

BEC Current (5-wire and 3-wire socket): 1A

Length: 56mm / 2.2"

Width Including Tabs: 54.5mm / 2.15"

Height: 24.6mm / 0.97"

For full details please see our MEGA SRS Power Systems Page here: https://www.arrma-rc.com/power-systems/latest/megasrs

Includes

1 x MEGA SRS 3-In-1 unit

Product Specifications

Manufacturer # AR390236
Programmable Yes
BEC Yes
BEC Voltage 5V
Input Voltage 2S LiPo, 2S LiIon, 6-7 Cell NiMH
Product Height 0.97" (25 mm)
Maximum Continuous Current 40A
Auto Cutoff Yes
BEC Continous Current 1A
Low-Voltage Cutoff Programmable Yes
Water-Resistant Yes
Connector Type EC3
Product Length 2.2" (56 mm)
Forward Yes
Reverse Yes
Product Width 2.15" (55 mm)
