Mamba X Waterproof ESC/1406-2280Kv Sensored Brushless Motor Combo: 4mm Bullet

Item No. CSE010015509
Brand Logo
3.3 out of 5 Customer Rating

Mamba X Waterproof ESC/1406-2280Kv Sensored Brushless Motor Combo: 4mm Bullet

Item No. CSE010015509
$244.95
Free financing available through Easy Pay
Earn points on this item
In Stock
Selected Store

Product Details

icon-box
In The Box

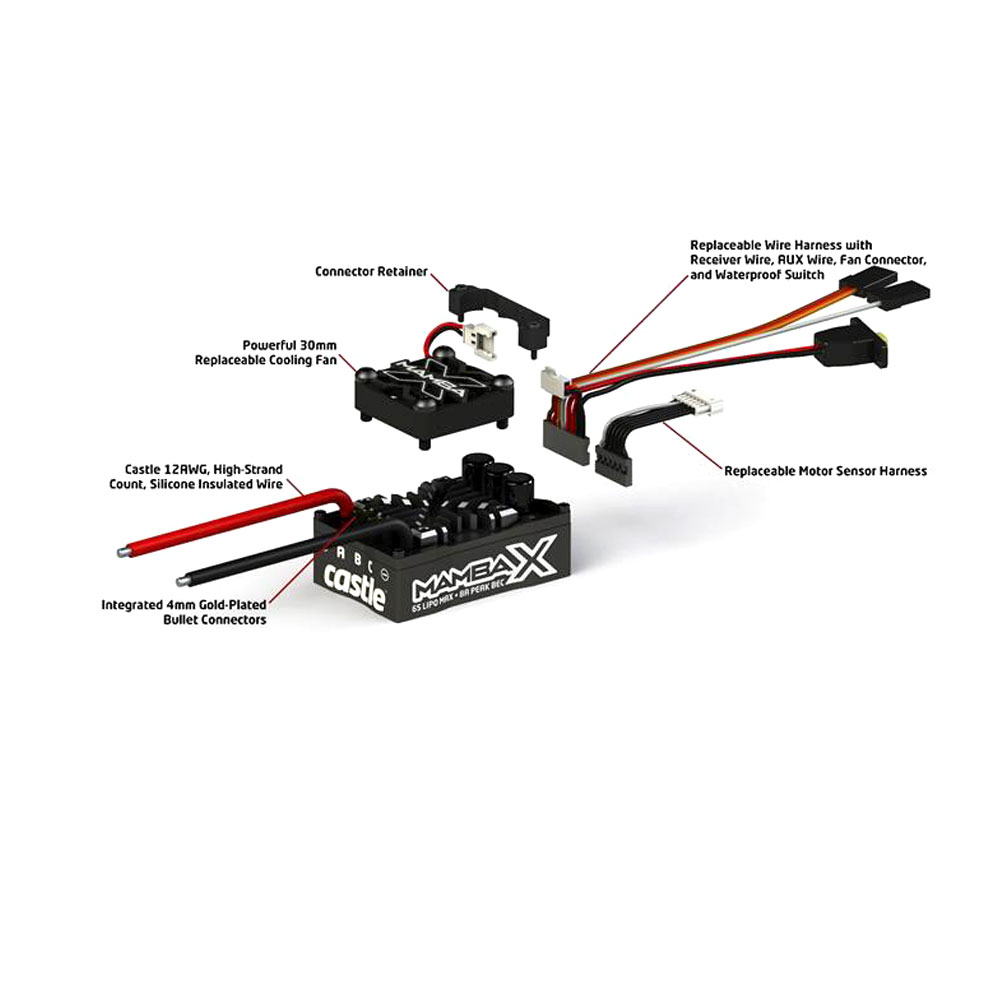

  • (1) Mamba X Electronic Speed Controller
  • (1) 1406-2280kv sensored brushless motor
  • (1) 210mm length sensor wire (for sensored operation)
  • (1) Castle Sensor Harness adapter
  • (1) Coupon for free Castle Link USB adapter
  • (1) Driver's Ed and Quick Start Guides
  • (1) Castle decal sheet
Mamba X Waterproof ESC/1406-2280Kv Sensored Brushless Motor Combo: 4mm Bullet

Features

  • INPUT VOLTAGE RANGE OF 2S-4S (with included motor) with an internal 8A ADJUSTABLE BEC (5.25V-8.0V)
  • Housed in a RUGGED CNC-MACHINED ALUMINUM CASE and potted in WATERPROOF epoxy to withstand the most extreme driving conditions and environments.
  • Removable 30MM COOLING FAN
  • Recon G6 Certified
  • Paired with the improved 4-POLE 12-SLOT SENSORED1406-2280KV SLATE motor provides precise throttle control and buttery smooth starts
  • Convenient TRANSMITTER PROGRAMMING for six common adjustable settings.
  • Access to Castle’s INDUSTRY LEADING SOFTWARE with use of Castle Link USB (coupon included for free USB with purchase) and freely downloadable Castle-Link Windows™ program , or the Castle Link iOS App and a B-LINK™ Bluetooth Adapter (sold separately) for anytime, anywhere system adjustments.
  • Firmware updates available with use of Castle Link USB and Castle Link Programming Suite.
  • DATA LOGGING captures and records performance data for maximum optimization of both performance and battery life
  • AUXILIARY WIRE FUNCTIONALITY allows for “on-the-fly” adjustments such as ROCK RACE/CRAWLER MODE. These adjustments can be made real time, while driving, right from your transmitter.
  • Castle’s SMARTSENSE™ software, enabled by default in the Castle Link Programming Suite, will use the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with ELECTRONIC TIMING. Smooth sensored startups and high-efficiency sensorless running makes the Mamba X system produce more power and less heat.
  • QUIETSENSE™ is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup. Mamba X ESC features AUDIBLE ALERTS that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.
  • Mamba X is TELEMETRY READY which means owners of the Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Overview

The Mamba X Crawler edition is our latest offering for the crawling crowd. We have taken our new 1406 low kv crawler motors and paired it with the high power, ultra reliable Mamba X ESC. This combo is ideal for low speed crawling or trail running in vehicles weighing up to 9lbs on 2s to 4s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5lbs. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation.

The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*. Whether you are racing at the track with your 2wd buggy, bashing through puddles and mud in your SCT or monster truck, or navigating a hardcore crawling excursion, this controller raises the bar to a whole new level.

ESCs have a tough life - landing extreme jumps, experiencing accidental collisions, and splashing through the occasional puddle. As R/C enthusiast themselves, Castle engineers understand this and designed the Mamba X to endure these situations and power through them. It is housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.

The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale* race buggies. SmartSense™ allows you to take advantage of smooth, cog-free, and predictable sensored starts, and Castle’s new and improved throttle response keeps you ahead of the competition.

The Mamba X has an exclusive set of features that allow you more control and flexibility than ever before:

SMARTSENSE™: Enabled by default, the Mamba X uses the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.

The Auxiliary Advantage. Mamba X features the addition of a new, programmable Auxiliary Wire that allows you to make “on-the-go” adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. Try out the brand new Crawler Mode for incredible versatility!

Telemetry Capability: The Mamba X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Castle Link Compatible: With the Castle Link USB Programming Kit you can use your Windows™ PC to easily program your controller. Adjustable settings include: Auto LiPo cutoff, Motor direction, Drag brake, Reverse type, Motor type, Punch Control, Brake curve, And many more.

Additional Castle Link benefits include: Access to all firmware updates, including added features sets released from Castle Engineering, at no charge. Intuitive Demo Mode capability Ability to save setup profiles for later use

Product Specifications

Connector Type 4mm Bullet
Programmable Yes
Motor Design Inrunner
Motor Type Brushless
